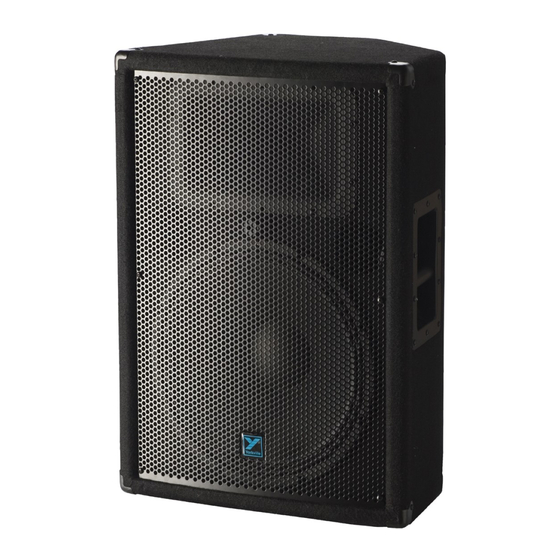

- Page 1 YX SERIES YX15P 200 WATT BI-AMP POWERED LOUDSPEAKER ENCLOSURE OWNER'S MANUAL MANUEL DE L'UTILISTEUR MODEL TYPE: YS1030...
-
Page 2: Power Sources
IMPORTANT SAFETY INSTRUCTIONS This lightning flash with arrowhead symbol, within The exclamation point within an equilatereal triangle is an equilateral triangle, is intended to alert the user to intended to alert the user to the presence of important the presence of uninsulated “dangerous voltage” operating and maintenance (servicing) instructions in within the product’s enclosure that may be of sufficient the literature accompanying the appliance. -
Page 3: Mic Gain Control
A 3-band EQ, XLR balanced microphone input as will as an XLR / TRS 1/4-inch balanced combi-jack line input on the power module means the YX15P can be easily connected to any source and quickly EQ balanced for the room. An XLR balanced line output allows multiple NX250’s to be linked together for use in an array or for easy distribution around a large room when used as repeater cabinets. -
Page 4: Voltage Selector Switch
YX SERIES Shield Switch set the volume for the enclosure. If there are multiple YX15P enclosures in a system, it will be The Shield switch disconnects the ground necessary to set the Levels separately. If using connection on the Line In. This may help prevent a mixer for the line source, the mixer should hum or buzz under some circumstances. - Page 5 YX SERIES YX SERIES YX15P 200 WATT BI-AMP POWERED Specifications LOUDSPEAKER ENCLOSURE System Type 2-Way Active or Passive Active Program Power (Watts) Max SPL (dB) Frequency Response (Hz +/- 3db) 60 - 20k Crossover Frequency (Hz) 1800 Driver Configuration 15 inch / 1.4-inch HF Driver(s) 1-inch Throat, Ceramic Magnet, 1.4-inch Aluminum...
-
Page 6: Caractéristiques
YX15P – Enceinte Active de Haut-Parleur - 200w, 12 Pouces / 1 Pouce La YX15P offre la meilleure valeur en ce qui concerne les enceintes actives avec HP de 12 pouces et pavillon. L’enceinte est de la même conception que l’enceinte passive NX250 qui a déjà fait ses preuves. - Page 7 Cette DEL à double action s’illumine en vert Le niveau de contrôle principal règle le niveau quand un signal est présent et en rouge quand de tous les sons provenant de l’enceinte YX15P. le limiteur est activé. Contrairement au contrôle...
- Page 8 YX SERIES YX SERIES YX15P 200 WATT BI-AMP POWERED Spécifications LOUDSPEAKER ENCLOSURE Type de système 2-Voies Active ou Passive Active Puissance Nominale (Watts) Pression Sonore Maximum (dB) Réponse en Fréquences (Hz +/- 3db) 60 - 20k 1800 Fréquence de coupure (Hz)
- Page 9 YX SERIES TO MORE YX15Ps MIX OUT LINE IN MIX OUT LINE IN TO MIC IN MICROPHONE with MULTIPLE YX15Ps MIXER OUTPUT TO LINE IN MIXER OUTPUT TO LINE IN STEREO P.A., with EXTERNAL MIXER TO MIC IN CD PLAYER TO LINE IN ONE MIC OR CD PLAYER...
- Page 10 YX SERIES...
- Page 11 Unlimited Warranty Yorkville's two and ten-year unlimited warranty on this product is transferable and does not require registration with Yorkville Sound or your dealer. If this product should fail for any reason within two years of the original purchase date (ten years for the wooden enclosure), simply return it to your Yorkville dealer with original proof of purchase and it will be repaired free of charge.
- Page 12 Yorkville Sound Inc. 550 Granite Court 4625 Witmer Industrial Estate Pickering, Ontario Niagara Falls, New York L1W-3Y8 CANADA 14305 USA Voice: (905) 837-8481 Voice: (716) 297-2920 Fax: (905) 837-8746 Fax: (716) 297-3689 Printed in China November 11, 2008 • Manual-Owners-YX15P-00-2v0...
