YORKVILLE PL315 - PARTS Manual

1
2
3
7
9
Parts-Serv-PL315-1v0.xls
4
5
6
8
11
12
ftp.yorkville.com

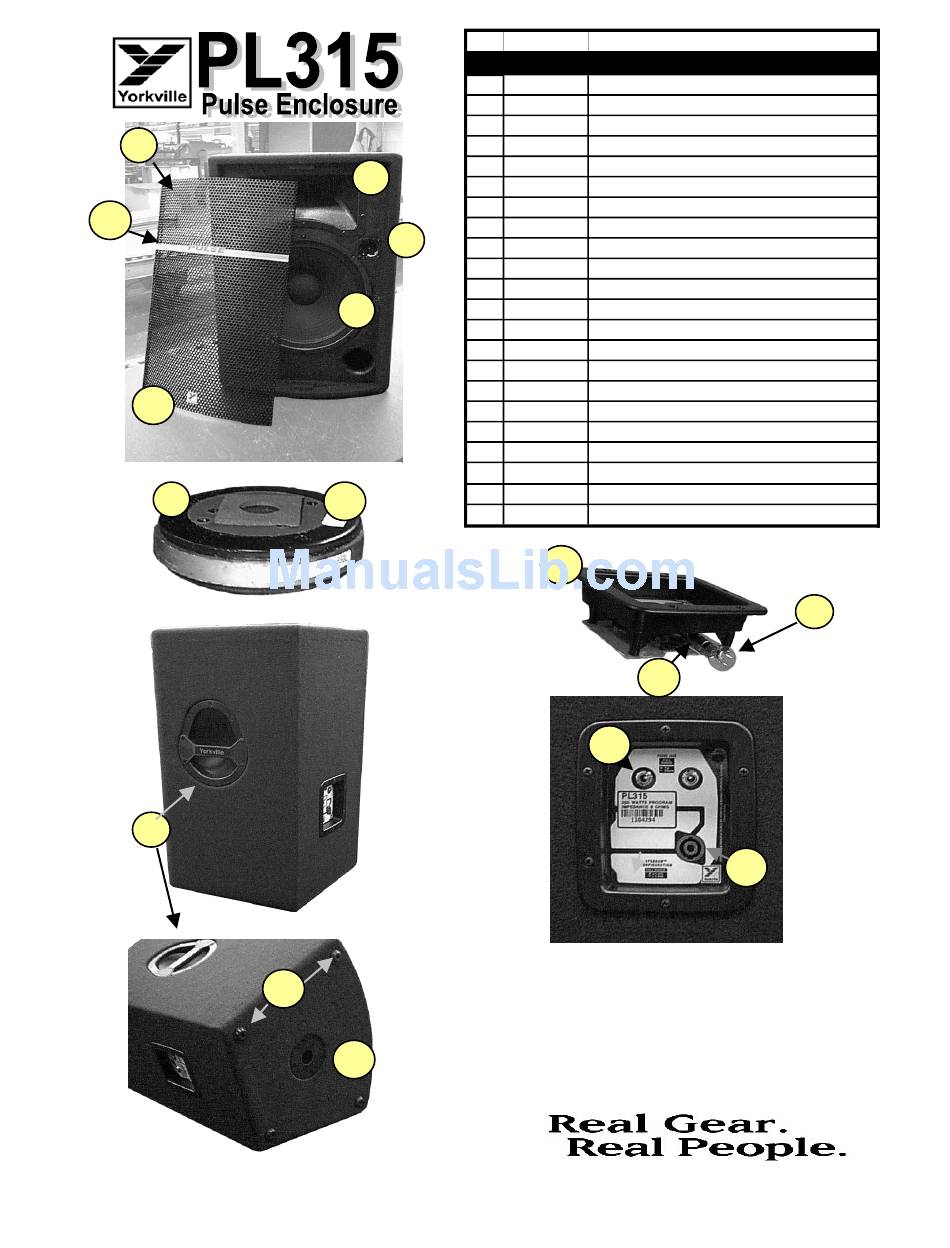

# Part# Description
Labeled Components
1 M760 PL315 GRILL (NO LONGER AVAILABLE)
2 8243 Y LOGO PULSE SERIES LARGE
3 H11 HORN 60X90 1.0" XXXXHZ FOR PL31
4 H11 HORN 60X90 1.0" XXXXHZ FOR PL31
5 8R 30W TWEETER PIEZO TLC 1
7417
6 7443 15" 8R 400WPGM SPEAKER
7 7283 16R 50W 1" DRIVER BOLT ON EMI
8
8885 NEOPRENE EMINENCE DRIVER GASKET
9
8537 TEARDROP HANDLE "YORKVILLE" BLU
10 8517 SMALL BLACK XOVERDISH PLASTIC C
11 8547 PLASTIC FOOT BLACK, POLYETHYLEN
12
8487 ADAPTOR,SPEAKER STAND,PLASTIC,L
13 3644 12V 24W SC BAYONET #1156
14 3641 S.C BAYONET WIRE SOCKET TINNED
3924 1/4" JCK PCB MT VERT 2XTIP HICU
15
16 3628 SPKON 4C PCB MT VERT 250TAB GRY
17
18
19
20
21
22
10
15
s
13
14
16
Speaker Enclosure
