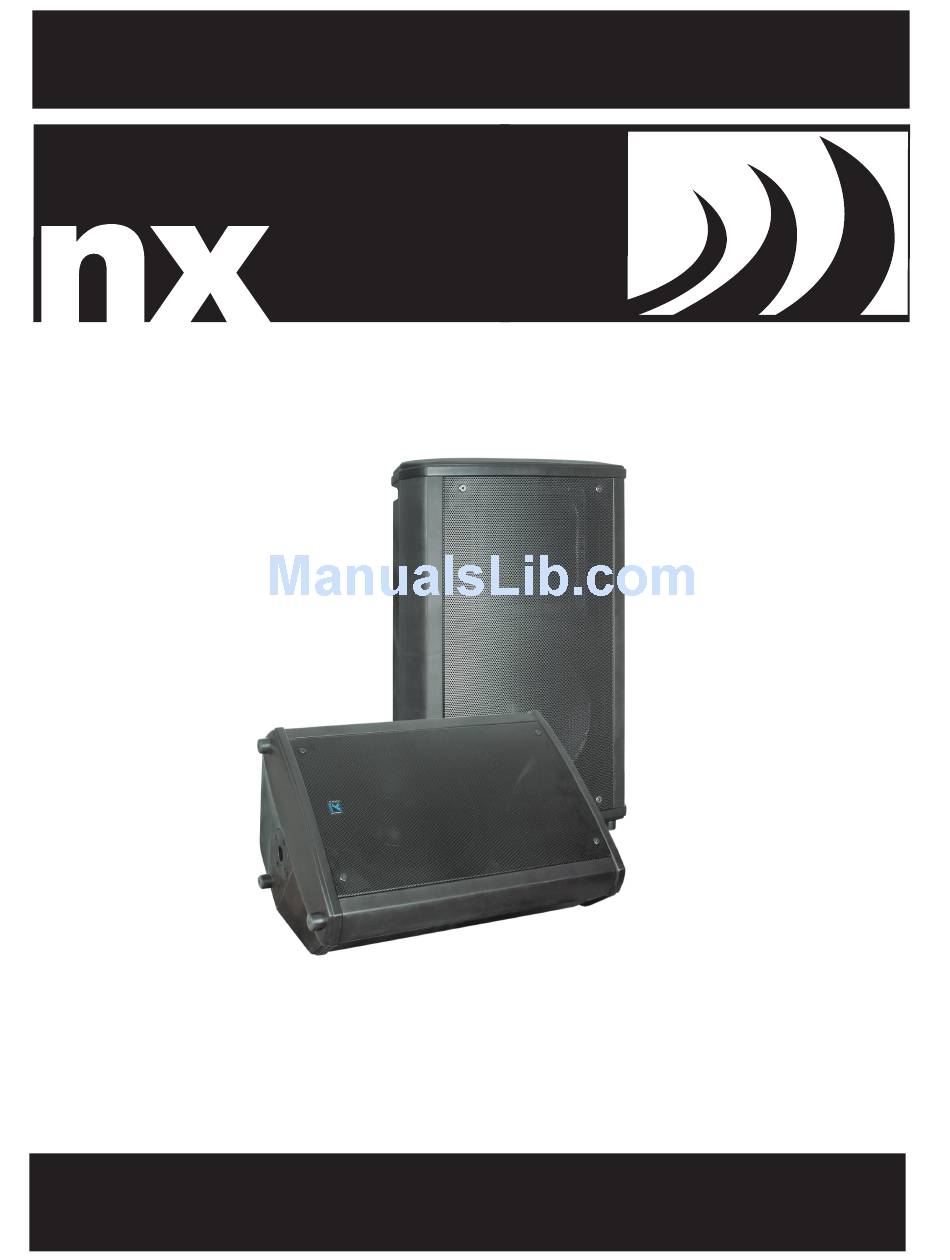

- Page 1 750 WATT POWERED LOUDSPEAKER ENCLOSURE MODEL TYPE: YS1037 OWNER'S MANUAL MANUEL de L'UTILISATEUR...
-
Page 2: Important Safety Instructions
This lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. Ce symbole d’éclair avec tête de flèche dans un triangle équilatéral est prévu pour alerter l’utilisateur de la présence d’un «... - Page 3 Two microphone inputs, two line inputs (optimized for CD, Cassette or laptop computer audio source), complete within two speaker cabinets. As mentioned, our active cabinets can be linked together, the limitation is that only three ‘mixers’ can be active at any one time. This allows three Mic sources and six line sources available in an array of three or more cabinets).
-
Page 4: Operation
Features • Ultra-clear reproduction throughout the whole bandwidth • High efficiency, high tech, 750 Watt Bi- amped power module • Superior TX-style processing and component protection • True 1 inch diaphragm horn driver • Low distortion/high power-handling 15- inch woofer •... -
Page 5: Power Switch
7. LF Rolloff For operation with a subwoofer, the LF Rolloff switch shuts off the low frequency boost and filters out signals below 100 Hz. It’s not necessary to use this switch for speech applications because the Mic input already has a high pass filter. -
Page 6: Specifications
1 (mic) 2 (line in/out) +4dBv / 1.23V Mixer on/off switch Mic Gain Line/CD Gain Treble/Bass Tweak +6dB/-infinity Main Volume 100Hz HP Filter (LF Rolloff) Power/Clip/Limit Side recesses for ease of lifting 2 (Top), 1 (Bottom), 2 (Pullback) NX Flyware... - Page 7 Enceinte de Haut-Parleurs Pleine Bande, Amplifiée NX750P Les ingénieurs de Yorkville ont utilisé la populaire NX350 comme inspiration et ont ajouté 750 Watts de puissance en bi-amplificattion et un traitement de signal perfectionné pour développer la NX750P. Performance, protection et poids générale étaient à la base de la conception pour l’amplificateur de graves (ou amplificateur du woofer).
-
Page 8: Caractéristiques
Caractéristiques • Reproduction ultra claire pour toute la gamme de fréquence • Module d’amplification de 750 watts hautement efficace à la fine pointe de la technologie • Composants de protection et traitement de qualité supérieure semblable à ceux retrouvés dans les systèmes TX •... - Page 9 6. Contrôle de Niveau Ce contrôle permet le réglage individuel de niveau pour chaque cabinet faisant parti d’un regroupement. Ce contrôle n'ajuste pas le niveau du signal présent aux prises “LINK.” Le contrôle de niveau devrait être réglé à "0" pour la plupart des applications.
- Page 10 750 WATT POWERED LOUDSPEAKER ENCLOSURE Puissance nominale (Watts) Double Amplificateurs Opération à double amplificateur seulement Pression sonore Maximum (dB) Réponse en Fréquence (Hz +/- 3db) Fréquence de croisement (Hz) Configuration De Haut-Parleurs Driver pour fréquences Aiguës(s) Puissance nominale pour fréquences Aiguës(Watts) Dispersion des Aiguës(°H x °V) Driver pour fréquences Grave (s) Puissance nominale pour fréquences Graves (Watts)
- Page 11 USE LINK TO MIC IN *Use MIXER on First nx750p ONLY! ONE MICROPHONE, MULTIPLE NX750Ps MIXER OUTPUT MIXER OUTPUT TO LINK STEREO P.A., with EXTERNAL MIXER USE LINK USE LINK USE LINK USE LINK note: each enclosure can be adjusted ±6dB individually TO LINK note: Turn MIXER option OFF on nx750ps TO MORE NX750Ps...
- Page 12 TO MIC INPUT TO CD/LINE INPUT CD PLAYER note: Turn MIXER option ON on nx750p ONE MIC and ONE CD PLAYER TO MIC INPUT TO MIC INPUT TO CD/LINE INPUT TO LINK CD PLAYER note: Turn MIXER option ON on both nx750ps TWO MICS and ONE CD PLAYER...
- Page 13 TO MIC INPUT LINK OUT TO LINK TO CD/LINE INPUT LINK OUT *MIXER LINK OUT *MIXER OPTION OPTION CD PLAYER TO LINE LEVEL TO LINE LEVEL SUB INPUT SUB INPUT SUBWOOFER SUBWOOFER MIC and CD PLAYER, with POWERED SUBWOOFERs...
- Page 14 750 WATT POWERED LOUDSPEAKER ENCLOSURE LINK NOTES: ALL LINK CONNECTIONS FUNCTION AS INPUTS OR OUTPUTS. EXTERNAL MIXERS CONNECT TO LINK INPUTS Yorkville +24 PHANTOM MIC LEVEL MIXER ON / OFF LINE / CD LEVEL NX750P LEVEL LINE / CD...
-
Page 15: Eyebolt Installation
3. EYEBOL T INST ALLA TION a) Using a 1/4-20 hex wrench, remove the flat head bolts from the top or bottom of the speaker enclosure to expose the tapped holes (on TX models, the flat head bolts are located within the track rails), as shown below. Be sure to keep these handy as they will be needed to seal the cabinet after the eyebolts are removed. -
Page 16: Outils Requis
EYEBOLT INSTALLATION 1. DESCRIPTION Plusieurs des modèles populaires de la ligne d'enceinte à haut-parleur Yorkville sont maintenant équipés de quincaillerie de montage pour les applications requérant une suspension aérienne. Dépendamment du modèle, deux ou plusieurs attaches internes sont prévues pour de tels montages. - Page 17 Two & Ten Year Warranty & Unlimited Warranty Yorkville's two and ten-year unlimited warranty on this product is transferable and does not require registration with Yorkville Sound or your dealer. If this product should fail for any reason within two years of the original purchase date (ten years for the wooden enclosure), simply return it to your Yorkville dealer with original proof of purchase and it will be repaired free of charge.
- Page 18 WORLD HEADQUARTERS CANADA U.S.A. Yorkville Sound Yorkville Sound Inc. 550 Granite Court 4625 Witmer Industrial Estate Pickering, Ontario Niagara Falls, New York L1W-3Y8 CANADA 14305 USA Voice: (905) 837-8481 Voice: (716) 297-2920 Fax: (905) 837-8746 Fax: (716) 297-3689 Manual-Owners-nx750p-00-1v8 • March 22/2010...
