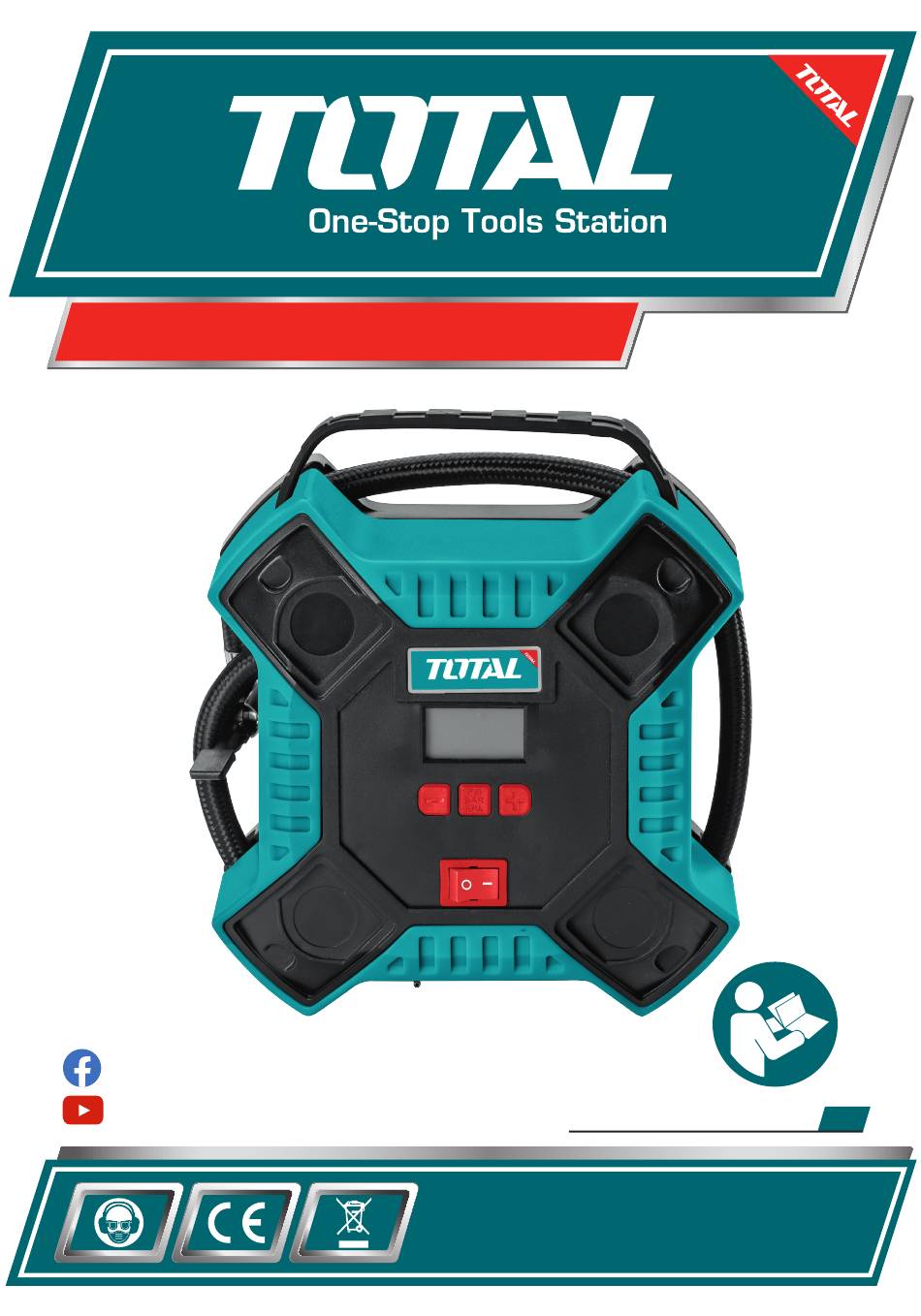

AUTO AIR COMPRESSOR
TTAC1601
totaltoolsworld
TOTAL TOOLS WORLD
EN
Auto Air Compressor
DV12V 160PSI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TTAC1601 and is the answer not in the manual?

Questions and answers

Summary of Contents for Total TTAC1601

  • Page 1 AUTO AIR COMPRESSOR TTAC1601 totaltoolsworld TOTAL TOOLS WORLD Auto Air Compressor DV12V 160PSI...
  • Page 2: Technical Specification

    Sound Pressure Sound Power Current: Pressure: 12V - DC 100 Wa� 35L/Min 160 psi <75.2 dB(A) <95.2dB (A) TTAC1601 2. PRODUCT SPECIFICATION 10.11.12 ON/OFF main switch Compressed air hose LCD display Quick Coupler Handle 12 Vdc vehicle connector "-" button 10.
  • Page 3: Intended Use

    3. INTENDED USE Your analogue compressor is designed to be used from the standard 12V dc socket in most vehicles, to inflate car and bike tyres, balls, etc. This product is intended for household, consumer use only. 4. SAFETY Warning ●...
  • Page 4: Operation

    5. OPERATION USE OF ACCESSORIES Note: Make sure that the Quick Coupler is correctly fi�ed Remove the required accessories from the accessory to the item to be inflated. compartment. • To start the inflator press the main switch (1) to the on posi�on.
  • Page 5: Maintenance

    6. MAINTENANCE The only user serviceable part is a 10Amp fuse located I the 12V connector, this can be checked by unscrewing the spring loaded centre pin from the plug. Only replace with a fuse with iden�cal ra�ngs. Make sure that the machine is not live when carrying out maintenance work.
  • Page 6 TTAC1601 Exploded view...
  • Page 7 TTAC1601 Spare part list Part Description Part Description control board assy compressor assembly rear cover logo label nut accessory screw plastic accessory data label ball needle screw front housing motor holder hoop cigarette lighter tube handle Damping feet...
  • Page 8 AUTO AIR COMPRESSOR www.totalbusiness.com TOTAL TOOLS CO., PTE. LTD. MADE IN CHINA T0320.V01 DC12V 160PSI...
