Total TACLI2002 Manual

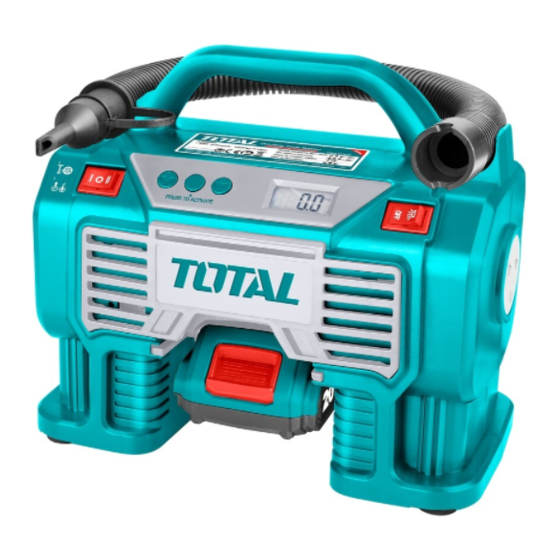

Battery air compressor
Hide thumbs

Advertisement

Table of Contents

BATTERY AIR COMPRESSOR
EN
v
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TACLI2002 and is the answer not in the manual?

Questions and answers

Related Manuals for Total TACLI2002

Summary of Contents for Total TACLI2002

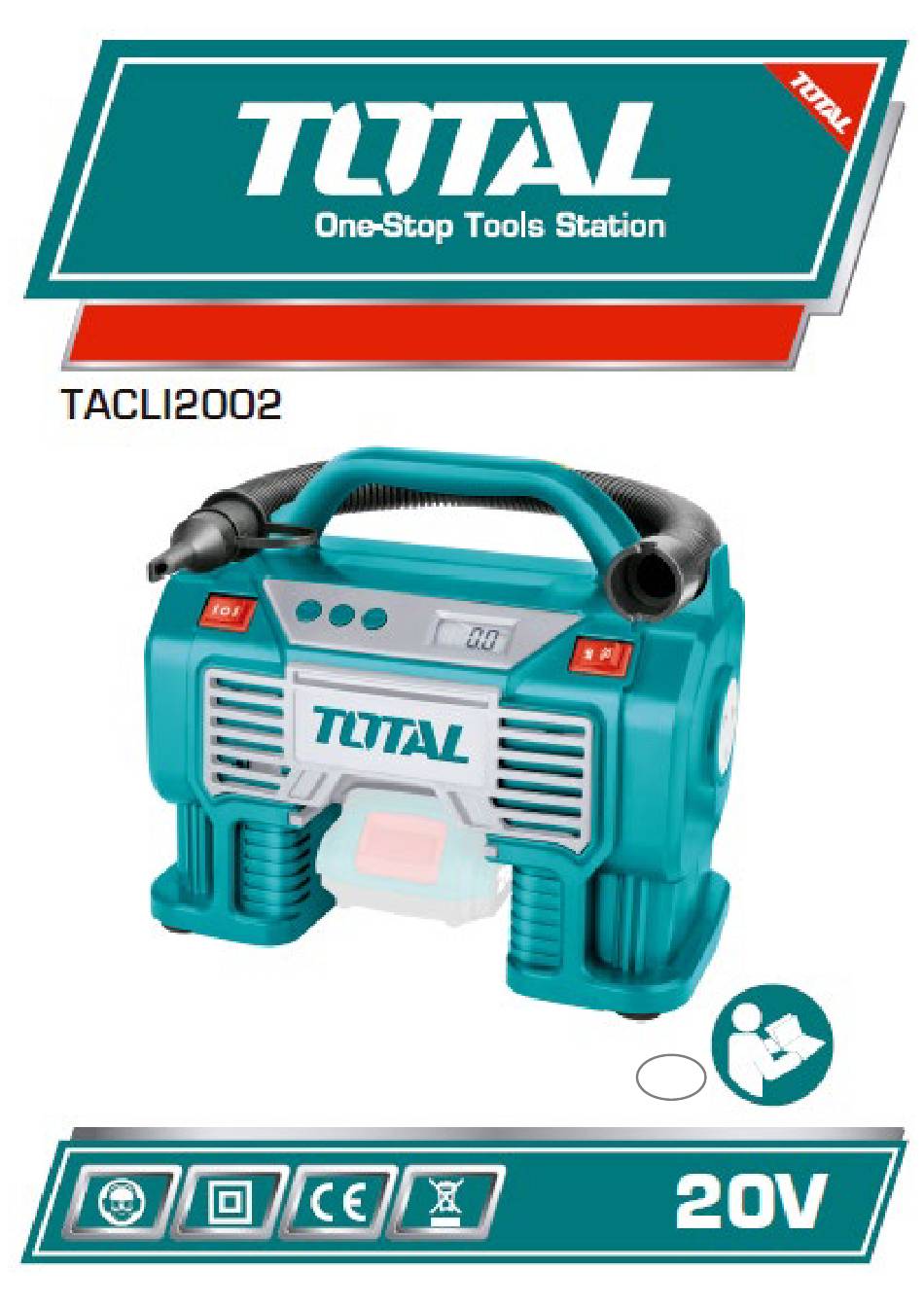

  • Page 1 BATTERY AIR COMPRESSOR...

  • Page 2: Security Instructions

    Security instructions Caution Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electrical shock, fire, and/or serious injury. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 3 objects, that can make a connection from one terminal to another. Shorting the battery terminals can cause burns or fire. d. Abusive conditions can cause expulsion of liquid from the battery; avoid contact. If accidentally contacted, rinse immediately with water. If the liquid comes into contact with the eyes, also seek medical help.
  • Page 4 To reduce the risk of over-inflation, periodically use a reliable pressure gauge • during inflation. The inflator gauge is for reference only and therefore not binding for exact values. Turn off and remove battery from inflator when not in use, cleaning, or changing •...

  • Page 5: Other Risks

    Please read the instruction manual before use. CE conformity. Wear safety glasses, hearing protection and a mask. Waste electrical products must not be disposed of with household waste. Please recycle at the appropriate facilities. Check with your local authority or retailer for recycling advice. Security alert.

  • Page 6: Technical Data

    13. Battery release button 14. High and low pressure switch 15. Battery Note: Not all accessories illustrated or described have to be included in the delivery. Note 2: This product is specifically designed to work with Total's range of batteries and chargers.
  • Page 7 Functioning Unpack Attention This packaging contains sharp objects, please be careful when unpacking. Remove the machine, together with the supplied accessories, from the packaging. Please check carefully to make sure the machine is in good condition and note all accessories listed in this manual. Also make sure all accessories are complete and check if any parts are missing.

  • Page 8: Battery Pack Removal

    Battery Pack Removal Locate the battery release latch on top of the battery and press down. While holding down the battery release latch, slide the battery pack away from the tool, Fig.4. Double hoses The inflator has two hoses for two types of inflation. The high pressure hose is for inflating high pressure items such as tires and sports balls (Fig.

  • Page 9: Digital Meter

    Low pressure and high pressure switch This three position switch operates the high and low pressure pumps. High pressure pump: Place the switch in position (I) to turn on the high pressure • pump (Fig. 9). Low pressure pump: Place the switch in position (II) to turn on the low pressure •...
  • Page 10 Universal valve adapter To operate the valve adapter, push the lever up (Fig. 15). Push the valve adapter down onto the threaded section of the valve stem (Fig. 16), or one of the 3 accessories provided with your Inflator (Fig. 17). When the adapter is all the way down over the threads, press down on the lever with your finger to lock it in place.
  • Page 11 To stop the inflator at any time, turn the low and high pressure switch to the off • “0” position. Remove the hose and store it in the storage area on the back of the product (Fig. • 18). Note: The pressure reading on the gauge while inflating is a measure of the fluctuating pressure between the item and the high pressure hose.
  • Page 12 Remove the hose by turning it clockwise as far as it will go and pulling it out of • the inflator. Store hose in storage area on top of product (Fig. 20). • Note: Pump mode does not have an auto power off feature. Always leave the low pressure hose free of obstructions and with the pinch valve adapter disconnected when not in use.

  • Page 13: Maintenance

    Accessories The supplied accessories perform a variety of functions: Conical adapter can be used on smaller pinch valves to inflate items such as • floats and children's toys, which typically require the user to inflate them by blowing air into them. The sports ball needle it can be used to inflate any type of sports ball or any •...
  • Page 14 Accessory storage When not in use, the adapters and needles provided with the inflator can be placed in the storage area located on the back of the inflator (Fig. 23). Environment Contact your local authority for information on available collection systems. •...

  • Page 15: Exploded View

    Exploded view...
  • Page 16 BATTERY AIR COMPRESSOR ELECTRIC SANDER...
