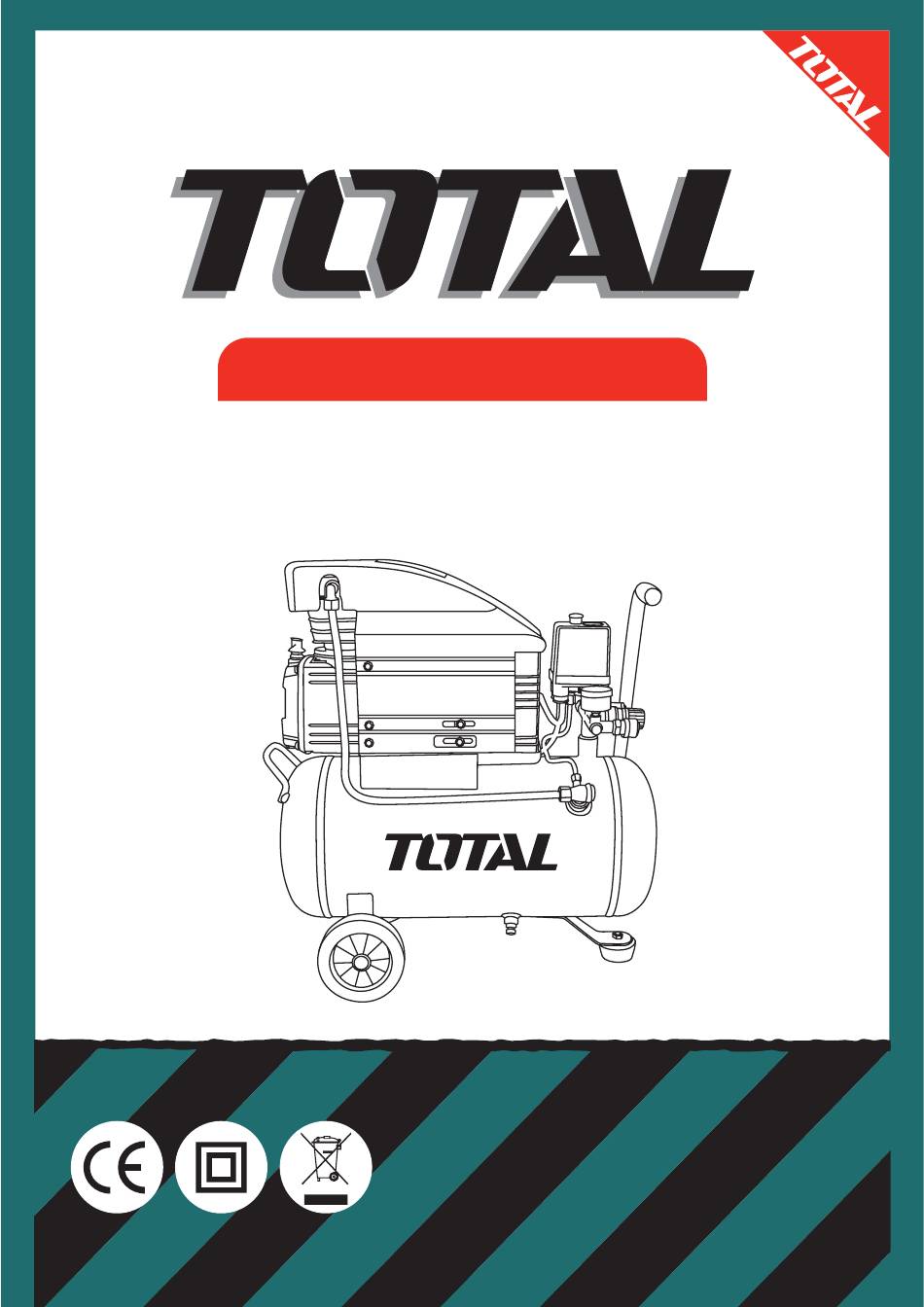

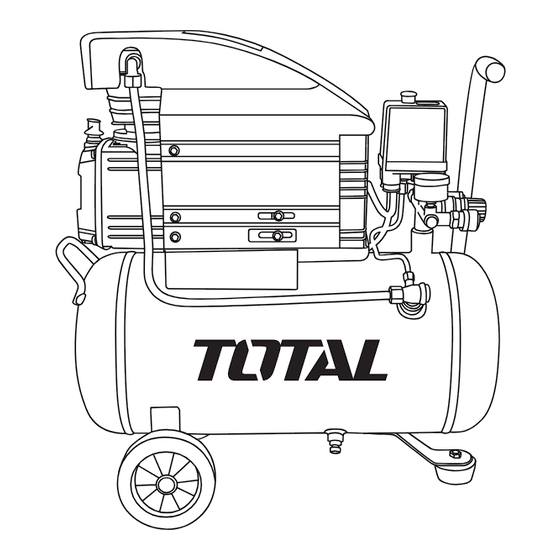

  • Page 1 AIR COMPRESSOR TC120242 UTC120242 TC125502 UTC125502...
  • Page 2 Warning! When using compressors, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. Read all these instructions before attempting to operate this product. Keep these instructions with the compressor. Save these instructions for future reference. Use Personal Protection Safety Equipment The compressor ejects high-pressure air.
  • Page 3 Wear goggles! Note the instructions for use! Wear ear muffs! Beware of electrical voltage Beware of hot parts...
  • Page 5 A) Important! To drain the condensation water completely, tilt the compressor to the side. B) Condensation water: Let out the condensation water daily by opening the drain valve (bottom of the pressure vessel).

  • Page 6: Safety Instructions

    1. Layout (Fig. 1/2/3) 4. Safety instructions 1. Intake air filter 4.1 General safety instructions 2. Pressure vessel Important! The following basic safety precautions 3. Wheel have to be taken when using this compressor in order 4. Drainage screw for condensation water to guard against the risk of electric shock, injury and 5.

  • Page 7: Assembly And Starting

    parts have to be properly fitted in order to be sure of fety devices and parts have to be repaired or replaced 4.4 Operating pressure vessels Important! There is a high risk of suffering a serious accident if you fects which constitute a danger to employees or third Have an electrician carry out repairs The pressure vessel must be regularly inspected for Noise...

  • Page 8: Technical Data

    7.4 Check the oil level at regular intervals You must be able to see that the oil level on the oil level gauge (6) is between the red oil level check mark and the Model TC120242 UTC120242 TC125502 UTC125502 Rated Voltage(V)
  • Page 9 8. Disposal and recycling The unit is supplied in packaging to prevent its being dam- aged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system. The unit and its accessories are made of various types of material, such as metal and plastic.
  • Page 10 TC120242,UTC120242 Spare Part List Part Description Part Description Crankcase Bolt Crankshaft Circlip Gasket Crankcasecover earbearingcrank Bolt Stator Gasket Bearing Oilgauge Rotator Bolt Bearing Breath Oilsealing Bolt Tank Connectingrod Circlip Washer Pistonpin Wheel Piston Bolt Pistonring Draincook Pistonring Bolt Gasket Washer...
  • Page 11 TC125502,UTC125502 Spare Part List Part Description Part Description Crankcase Bolt Circlip Crankshaft Gasket Crankcasecover earbearingcrank Stator Bolt Gasket Bearing Rotator Oilgauge Bearing Bolt Breath Oilsealing Tank Bolt Connectingrod Washer Circlip Wheel Pistonpin Piston Bolt Draincook Pistonring Pistonring Bolt Washer Gasket Cylinder Cushionfoot Bolt...
  • Page 12 TC120242,UTC120242 Exploding view...
  • Page 13 TC120242,UTC120242 Exploding view...
  • Page 14 TC120242 UTC120242 Air Compressor TC125502 UTC125502 1– 2– 3– 4– 5– 6– 7– 8– 9– 10– 11– –...

  • Page 15: Air Compressor

    AIR COMPRESSOR www.totaltools.cn TOTAL TOOLS CO.,LIMITED MADE IN CHINA T0512.V01...
