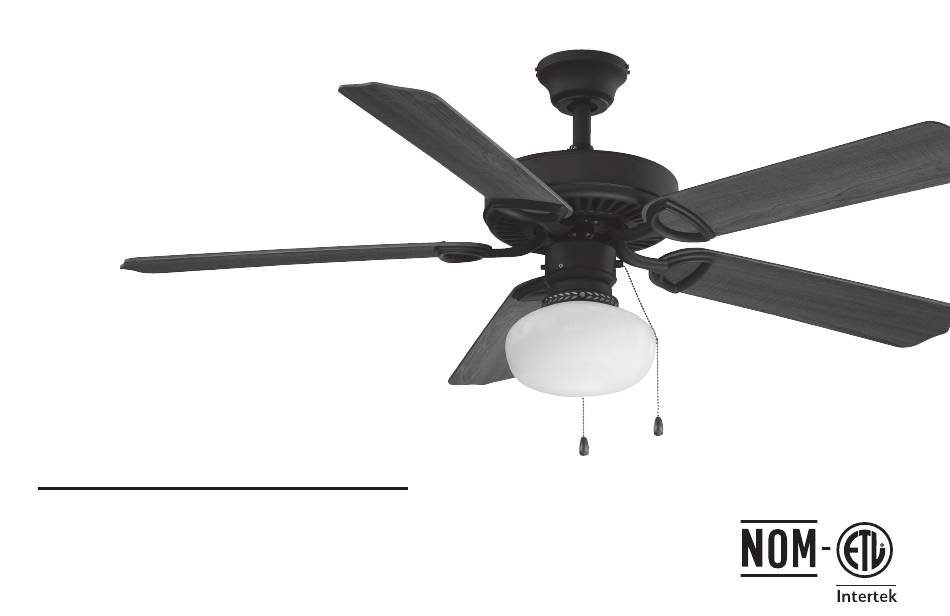

- Page 1 601 446 Model: YG269-ORB 120 V~ 60 Hz 122 W Read and follow all the instructions before using this product. Loreto Ceiling Fan Owner’s Manual Loreto Ventilador de 1.32 Manual del Propietario...
-
Page 2: Table Of Contents
52” Loreto Thank you for purchasing our ceiling fan. This product has been manufactured with the highest standards of safety and quality. Ceiling Fan Date Purchased Table of Contents Store Purchased Safety Rules ....1 601-446 UL Model No. - Page 3 VENTILADOR DE TECHO/CEILING FAN Marca/Brand: AIR COOL Modelo/Model: YG269-ORB 120 V~ 60 Hz 122 W Consumo de energía por unidad de tiempo en operación (Energy Consumption): 55.92 Wh Importador/Importer: Servicios Home Depot, S. de R.L. de C.V. Ricardo Margain 605, Santa Engracia, San Pedro Garza García, Nuevo León, C.P.
-
Page 4: Safety Rules
Safety Rules - Read and Save These Instructions To reduce the risk of electric shock, insure electricity has been turned off After making electrical connections, spliced conductors should be turned at the circuit breaker or fuse box before beginning. upward and pushed carefully up into outlet box. The wires should be spread apart with the grounded conductor and the equipment-grounding All wiring must be in accordance with the National Electrical Code conductor on one side of the outlet box and ungrounded conductor on the... -
Page 5: Unpacking Your Fan
Unpacking Your Fan Unpack your fan and check the contents. You should have the following items: Set of blades (5) Light kit Blade Attachment Hardware (16 Screws with Fiber Washers) Canopy assembly Glass shade Ball/downrod assembly Pull chain and fob (2) Light Kit Hardware Fan motor assembly Extra plastic plug... -
Page 6: Installing Your Fan
Installing Your Fan Provide Strong Support Figures 1~3 are examples of different ways to Tools Required mount the outlet box. Phillips screwdriver, straight slot screwdriver, step ladder and wire cutters. Recessed Ceiling Outlet Box Mounting Plate Figure 3 Mounting Options Outlet Box Note: You may need a longer downrod to If there isn't an existing NOM listed mounting box,... -
Page 7: Hanging The Fan
the clevis pin until it snaps into its locked Hanging the Fan Option 1: position, as noted in the circle inset of Fig. 6. Standard Ceiling Mounting REMEMBER to turn off the power. Follow the Tighten two set screws on top of the fan motor steps below to hang your fan properly. -
Page 8: Option 2: Close-To-Ceiling Mounting
NOTE: If a longer downrod is needed, take out Remove three of the six screws and lock Motor washers (every other one) from the collar of the screw located in the hanger ball, lower the Collar Screw and Lock Washer top motor. - Page 9 Installing Fan to NOM Listed Outlet Box the Electrical Box WARNING 120V Wires TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OTHER PERSONAL INJURY. MOUNT FAN ONLY TO AN OUTLET BOX OR SUPPORTING SYSTEM MARKED ACCEPTABLE Groove Ceiling Mounting FOR FAN SUPPORT AND USE THE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX.
-
Page 10: Making The Electrical Connections
Making the Electrical Connect the fan motor black wire to the supply SUPPLY CIRCUIT black (hot) wire using a wire nut. (Figure 12) Connections Connect the blue wire for light kit to the black Ground REMEMBER to disconnect the power. household supply wire. -
Page 11: Finishing The Fan Installation
Finishing the Fan Close-to-Ceiling Mounting Outlet Box Installation Remove the fan from the hook on the mounting Screws Ceiling bracket. Secure the canopy to the mounting Standard Ceiling Mounting Mounting bracket with four screws included with your fan. Bracket (Fig. 14) WARNING LOCKING SLOTS OF CEILING CANOPY ARE Canopy... -
Page 12: Attaching The Fan Blades
Attaching the Fan Blades CAUTION Motor MOTOR IS SHIPPED WITH RUBBER PACKING MOUNTS TO PREVENT MOVEMENT DURING TRANSPORTATION. REMOVE RUBBER PACKING MOUNTS FROM MOTOR ASSEMBLY AND DISCARD PRIOR TO ATTACH- ING BLADE ARMS. (FIG. 15) Rubber Packing Mounts Attach blades to blade arm using the screws Screws with fiber washers provided. -
Page 13: Blade Balancing
Blade Balancing All blades are grouped by weight during assembly. Because natural woods vary in density, the fan may wobble even though the blades are weight Touching Ceiling matched. The following procedure should correct most fan wobble. Check after each step. Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by loose parts). -
Page 14: Installing The Light Kit
Installing the Light Kit CAUTION BEFORE STARTING INSTALLATION, DISCON- NECT THE POWER BY TURNING OFF THE CIRCUIT BREAKER OR REMOVING THE FUSE AT FUSE BOX. TURNING POWER OFF USING THE FAN SWITCH IS NOT SUFFICIENT TO PREVENT ELECTRIC SHOCK. While holding the light kit under your fan, locate two single white and blue wires in the switch housing labeled "FOR LIGHT". - Page 15 Fan without Light Kit (Optional) CAUTION BEFORE STARTING INSTALLATION, DISCON- NECT THE POWER BY TURNING OFF THE CIRCUIT BREAKER OR REMOVING THE FUSE AT FUSE BOX. TURNING POWER OFF USING THE FAN SWITCH IS NOT SUFFICIENT TO PREVENT ELECTRIC SHOCK. Disassemble the switch housing cover from the Switch housing light kit, you can keep the light kit for future...
-
Page 16: Operating Your Fan
Operating Your Fan Warm weather - (Counter Clockwise Direction) WARNING A downward air flow creates a cooling effect as LOCKING SLOTS OF CEILING CANOPY ARE PRVIDED ONLY AS AN AID TO MOUNTING. DO shown in Figure 22. This allows you to set your air NOT LEAVE FAN ASSEMBLY UNATTENDED conditioner on a higher setting without affecting UNTIL ALL FOUR CANOPY SCREWS ARE... -
Page 17: Care Of Your Fan
Care of Your Fan Troubleshooting PROBLEM SOLUTION Here are some suggestions to help you maintain your fan. Fan will not start Check the main and branch circuit fuses or breakers. Because of the fan's natural movement, some Check the line wire connections to the fan and switch wire connections connections may become loose. -
Page 18: Specifications
Specifications FAN SIZE SPEED VOLTS AMPS WATTS N.W. G.W. C.F. 11.74 1664 6.90 kg 7.69 kg 52” MED. 1.31’ 0.33 30.4 3071 (15.20 lbs) (16.91 lbs) HIGH 0.42 50.13 4150 These are approximate measures. They do not include Amps and Wattage used by the light kit. Importer: SERVICIOS HOME DEPOT, S.
