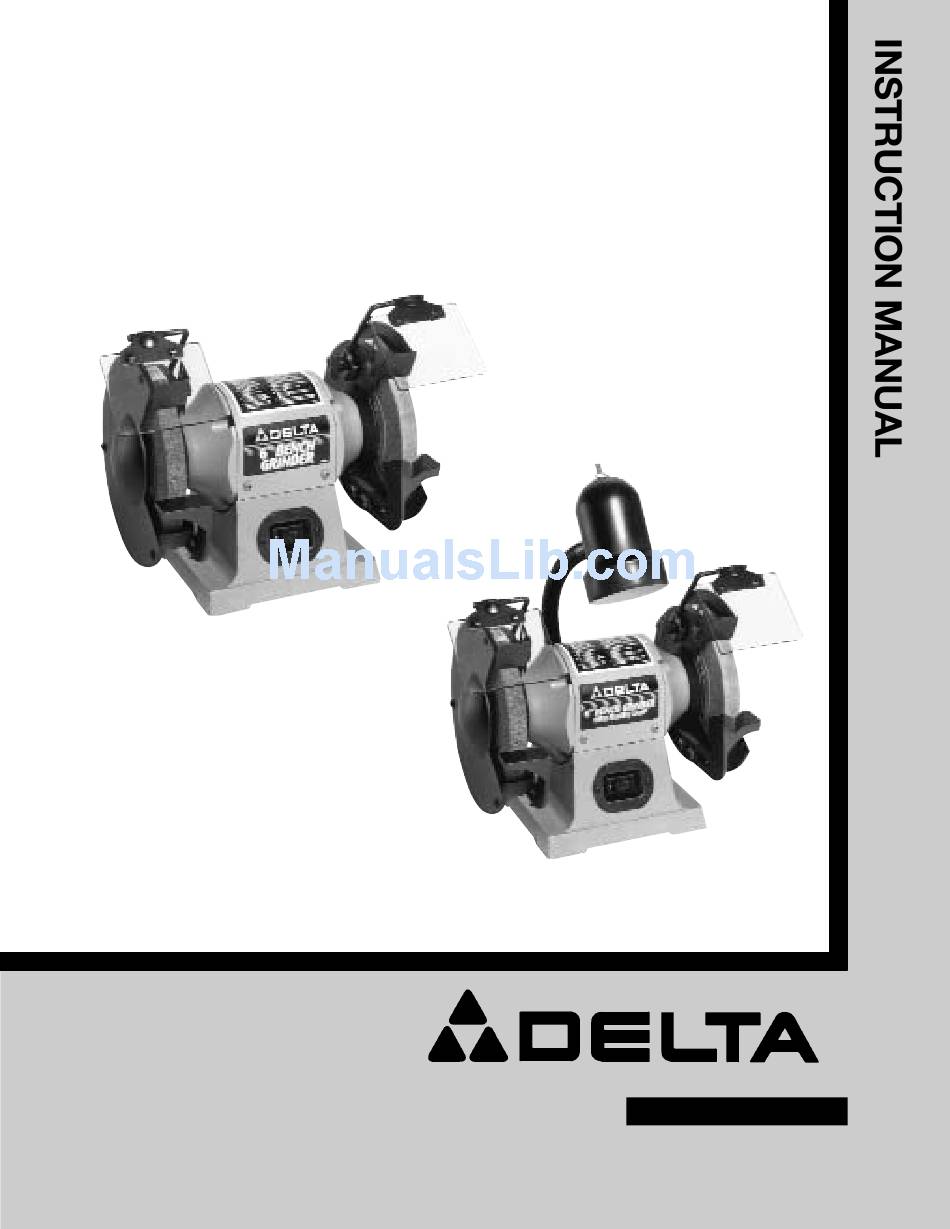

6" Bench Grinders
(Model 23-640 & 23-645)
PART NO. 900464 (011)
Copyright © 2001 Delta Machinery
To learn more about DELTA MACHINERY
ESPAÑOL: PÁGINA 11
visit our website at: www.deltamachinery.com.
For Parts, Service, Warranty or other Assistance,
1-800-223-7278 (
1-800-463-3582).
please call
In Canada call

Advertisement

Table of Contents
loading

Related Manuals for Delta 16" BENCH GRINDERS 23-640

Summary of Contents for Delta 16" BENCH GRINDERS 23-640

  • Page 1 6" Bench Grinders (Model 23-640 & 23-645) PART NO. 900464 (011) Copyright © 2001 Delta Machinery To learn more about DELTA MACHINERY ESPAÑOL: PÁGINA 11 visit our website at: www.deltamachinery.com. For Parts, Service, Warranty or other Assistance, 1-800-223-7278 ( 1-800-463-3582).

  • Page 2: Safety Rules

    If you have any questions relative to a particular application, DO NOT use the machine until you have first contacted Delta to determine if it can or should be performed on the product.

  • Page 3: Additional Safety Rules For Grinders

    7. SECURELY tighten tool rests so they cannot shift position while in use. 8. NEVER grind on a cold wheel. The grinder should always be started and run at idle speed for one full minute before applying work.

  • Page 4: Unpacking And Cleaning

    WARNING: FOR YOUR OWN SAFETY, DO NOT CONNECT THE TOOL TO THE POWER SOURCE UNTIL THE MACHINE IS COMPLETELY ASSEMBLED AND YOU HAVE READ AND UNDERSTAND THE ENTIRE INSTRUCTION MANUAL. 1. Grinder 2. Right side tool rest with V-groove 3. Left side tool rest 4.

  • Page 5: Hardware Illustration

    HARDWARE ILLUSTRATION Hardware Illustrated in actual size 11/16" Flat Washer (2) 3/4" Flat Washer (4) #10 - 24 Hex Nut (4) 5/16 - 18 x 1/2" Hex Head Screw (2) 1/4 - 20 Hex Nut (2) 5/16 - 18 x 5/8" Hex Head Screw (2) 1/4 - 20 x 3/4"...

  • Page 6: Assembling Tool Rests

    (A) should be adjusted accordingly. ASSEMBLING EYE SHIELDS Your grinder is supplied with two safety eye shields for operator protection. NOTE: ALWAYS WEAR EYE PRO- TECTION. To assemble the eye shields, proceed as follows: 1.

  • Page 7: Motor Specifications

    FASTENING GRINDER TO SUPPORTING SURFACE IF DURING OPERATION THERE IS ANY TENDENCY FOR THE GRINDER TO TIP OVER, SLIDE OR “WALK,” THE GRINDER MUST BE SECURED TO THE SUPPORTING SURFACE THROUGH THE TWO HOLES (A) Fig. 9, IN THE GRINDER BASE.

  • Page 8: Extension Cords

    A l l g r o u n d e d , c o r d - c o n n e c t e d t o o l s : In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock.

  • Page 9: Changing Grinding Wheels

    WARNING: THE USE OF ACCESSORIES AND ATTACHMENTS NOT RECOMMENDED BY DELTA MAY RESULT IN RISK OF INJURIES. Grinding wheels used with this grinder should be rated for 3600 RPM or higher and be 6" in diameter with a 1/2" arbor hole.

  • Page 10: Parts, Service Or Warranty Assistance

    PARTS, SERVICE OR WARRANTY ASSISTANCE All Delta Machines and accessories are manufactured to high quality standards and are serviced by a network of Porter- Cable•Delta Factory Service Centers and Delta Authorized Service Stations. To obtain additional information regarding your Delta quality product or to obtain parts, service, warranty assistance, or the location of the nearest service outlet, please call 1-800-223-7278, (In Canada call 1-800-463-3582).
