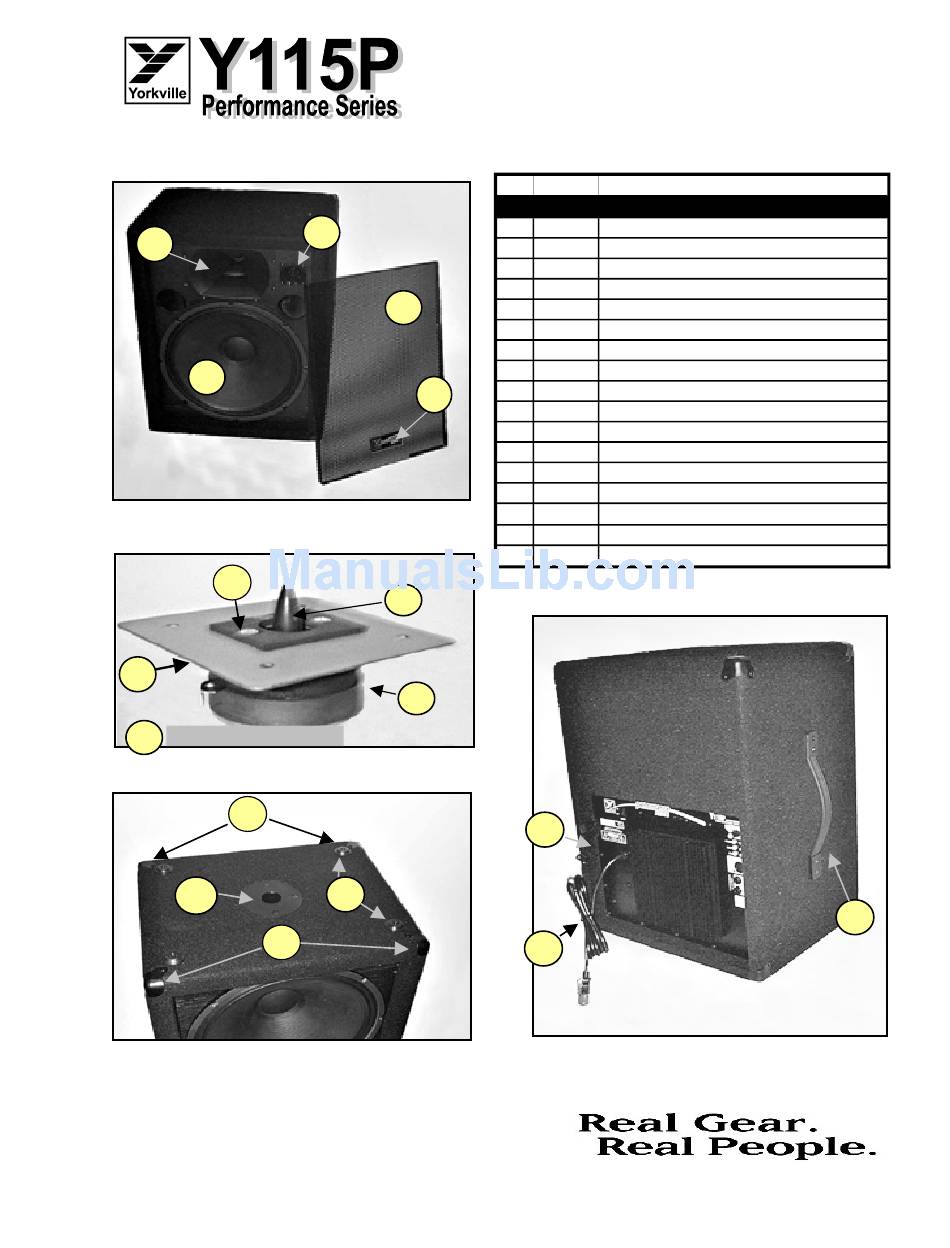

YORKVILLE Performance Y115P Parts List

1
2

Front View with Grill Off

6
7
10 diaphram not shown
HF Driver shown with mounting plate
12
13

Bottom view of Y115P

*NOTE: Replacement grills & HF Driver supports are 'Special-Order' and are only available while the model is in production.
Parts-Serv-y115p-1v0.xls
3
4
5
8
9
14
11
ftp.yorkville.com
Part# Description
#

Labeled Components

1 H07 HORN 60 X 40 1" STY 2000HZ
2 7316 15" 8R 200WPGM SPEAKER
3 7417 8R 30W TWEETER PIEZO 1
4 z247 Y115P GRILL*
5 8239 "Y" LOGO "Y" SERIES LARGED DOMED
6 8879 M5 X 10 DIN 7985 MS ZINC SCREW
7 M694 GENERIC DRIVER SUPPORT*
8 N252PP N252 REPLACEMENT PHASE PLUG
9 N252XN 8R 30W 1"DRIVER RCF-N252XN
10 M-73 N252 REPLACEMENT DIAPHRAM
11 8569 CORNER, 2 LEGS NO LIP BLACK OXIDE
12 8562 CORNER, 3 LEGS, BLACK OXIDE
13 8487 ADAPTOR,SPEAKER STAND,PLASTIC,L
14 8547 PLASTIC FOOT BLACK
15 8468 VELCRO STRAP 3/4"X22CM (VELSTRA)
16
3481 8' 3/18 SJT AC LINE CORD 250 C
17 8458 10.5" STRAP HANDLE, PLASTIC COVERS
15
16

Rear View

17
Speaker Enclosure
