WORLD HEADQUARTERS
CANADA
U.S.A.
Yorkville Sound Limited
Yorkville Sound Inc.
550 Granite Court
4625 Witmer Industrial Estate
Pickering, Ontario
Niagara Falls, New York
L1W 3Y8 CANADA
14305, USA
Voice: 905-837-8481
Voice: 716-297-2920
Fax: 905-839-5776
Fax: 716-297-3689
SERVICE MANUAL

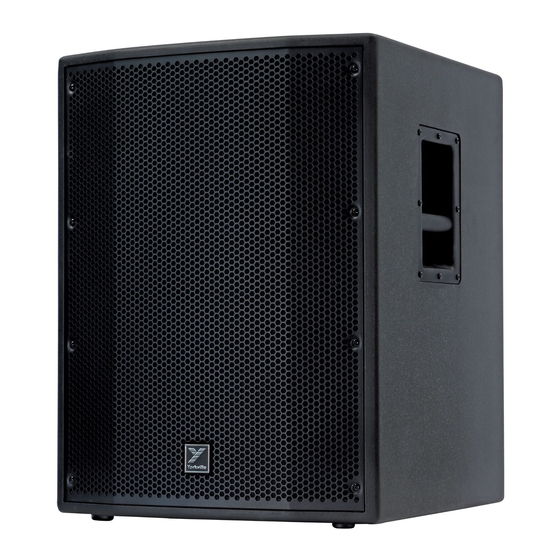

YXL15SP
SMT Disclaimer
Due to the complex nature of the use of SMT installed components
in Yorkville equipment, we highly caution all service technicians in
attempting to repair or replace SMT factory installed components.
Many of these components may be glued prior to initial soldering.
Replacing SMT components requires expensive
specialized de-soldering equipment and training.
Yorkville Sound will repair and replace defective SMT components
to ensure proper quality assurance and installation is maintained.
YXL15SP
Manual-Service-YXL15SP-00-1v0.• September 9,2023
Advertisement
Related Manuals for YORKVILLE YXL15SP
Summary of Contents for YORKVILLE YXL15SP
- Page 1 Due to the complex nature of the use of SMT installed components 550 Granite Court 4625 Witmer Industrial Estate in Yorkville equipment, we highly caution all service technicians in Pickering, Ontario Niagara Falls, New York attempting to repair or replace SMT factory installed components.
-
Page 2: Important Safety Instructions
IMPORTA NT SA FETY INSTRUCTIONS This lightning flash with arrowhead symbol, within an The exclamation point within an equilatereal triangle is intended to alert the user to the presence equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous of important operating and maintenance (servicing) instructions in the literature accompanying voltage”... - Page 3 Specifications System Type Powered Subwoofer Active or Passive Active Power Rating (watts) 500 watts program (1000 watts peak) Max SPL (dB) 128 dB peak Frequency Response (Hz +/- 3dB) 45 - 100 (Hz +/-3dB) LF Driver 15-inch (3-inch voice coil) LF Power Rating (watts) 500 watts program (1000 watts Peak) LF Amplifier Type...
- Page 4 Spécifications Type de système Subwoofer amplifié Actif ou passif Actif Puissance nominale (watts) 500 watts en programme (1000 watts en crête) NPA maximum (dB) 128 dB en crête Réponse en fréquence (Hz +/- 3dB) 45 - 100 (Hz +/-3dB) Driver BF 15 pouces (bobine mobile de 3 pouces) Puissance nominale LF (watts) Programme de 500 watts (1000 watts crête)
- Page 5 YXL15SP Block Diagram for D E S I G N E D Y O R K V I L L E S O U N D LEFT SUB AMP Σ Microcontroller RIGHT PUNCH SMOOTH ACTIVITY DEEP MODE Block-Diag-YXL15SP-00-1v0...
- Page 6 10u/16V 0.1uF 0.1uF 470K -15V 设 计 东莞市三基音响科技有限公司 文件类别 原理图 审 查 审 核 版 本 共 页 第 页 图 名 / OE3172-03 物 品 名 称 文件 ( 图 ) 号 批 准 物品规格 加拿大 04/YORKVILLE/YXL12P 功放板 生效日期...
- Page 7 DSP.SCHDOC Needs mod to amp module. AmpV+~ Preamp AGND Preamp.SchDoc DGND Output Output.SchDoc HiSense HiSense LoSense LoSense EVA1 AGND Bluetooth_BM64-Dg.SchDoc HORN_PRE_OUT WOOFER_PRE_OUT Hi+Out Hi+Out BT_LRCLK W6_L BT_LRCLK Hi-Out Hi-Out EVA_A PRE_GND BT_BCLK W6_K BT_BCLK LO+Out LO+Out BT_SDATA_OUT W6_J BT_SDATA_OUT AGND LO-Out LO-Out BT_SDATA_IN...
- Page 8 100V 0603 MC33078 绿灯模式 7817 W125 ≈700mV@200Hz 100N C143 0603 0603 W125 W100 1206 100N 7817 470R R142 0805 0603 0805 1N4148 0603 0603 0603 0603 MC33078 AGND 7817 W100 R202 0603 100N 0603 0603 0603 W125 W125 C144 0603 1206 W100 AGND...
- Page 9 +3V3 600R F0805 +3V3_DSP +3V3_DSP MCLK DGND 0603 0805 MMBT5401 +1V8 SUPPLY 470R 0603 0603 0603 0805 0603 0603 0805 0603 +3V3_DSP 7837 100R +3V3_DSP DGND +3V3 0603 W125 OSCILLATOR Grounds DGND 0603 0603 600R 0603 DGND F0805 ADAU1401 W100 100R 7894 1.8V Reg...
- Page 10 +3V3_uC +3V3 R194 W250 F0805 0805 C140 LQFP64 0805 0805 0805 0603 0805 0603 0603 MKL15Z64VLH4 DGND 8173 DGND PTE0 PTE1 LimitLED PTD7 LimitLED ClipLED ClipLED PTD6 PTE16 PTD5 PTE17 PTD4 PTE18 PTD3 PTD2 BT_Switch Mode_Switch PTE19 PTD1 Sub_Switch PTE20 PTD0 PTE21 PTE22...
-
Page 11: Dac Output
DAC Output HORN OUTPUT R108 W100 0603 C115 680P C117 0603 R112 Hi+Out R114 W100 MC33078 100N W100 0805 7817 0603 200R 0603 U13A HORN_PRE_OUT C119 0603 5X5.5mm R116 C122 W100 R118 200R Hi-Out C125 W100 100N 0603 0805 0603 680P 0603 R122... -
Page 12: Power Led Indicator
4. Activity LED – Illuminates when signal is sent to the Master. 5. Input – Left/Right Inputs 6. Link – Left/Right Links To get the full Owner’s Manual please visit our website at http://www.yorkville.com/manuals/ or, if you need a printed version call 905-837-8777 Printed In Canada Printed In CANADA QuickStart-YXL__SP-00-1v0 •... - Page 13 4. DEL d’Sctivité - S’allume lorsque le signal est envoyé au Master. 5. Entrée - Entrées gauche/droite 6. Link - Liens gauche/droit Pour obtenir le manuel de utilisateur visitez notre site Web à http://www.yorkville.com/manuals/ ou, si vous avez besoin d’une version imprimée appelez-nous au 905-837-8777...
