Summary of Contents for Baker B6045

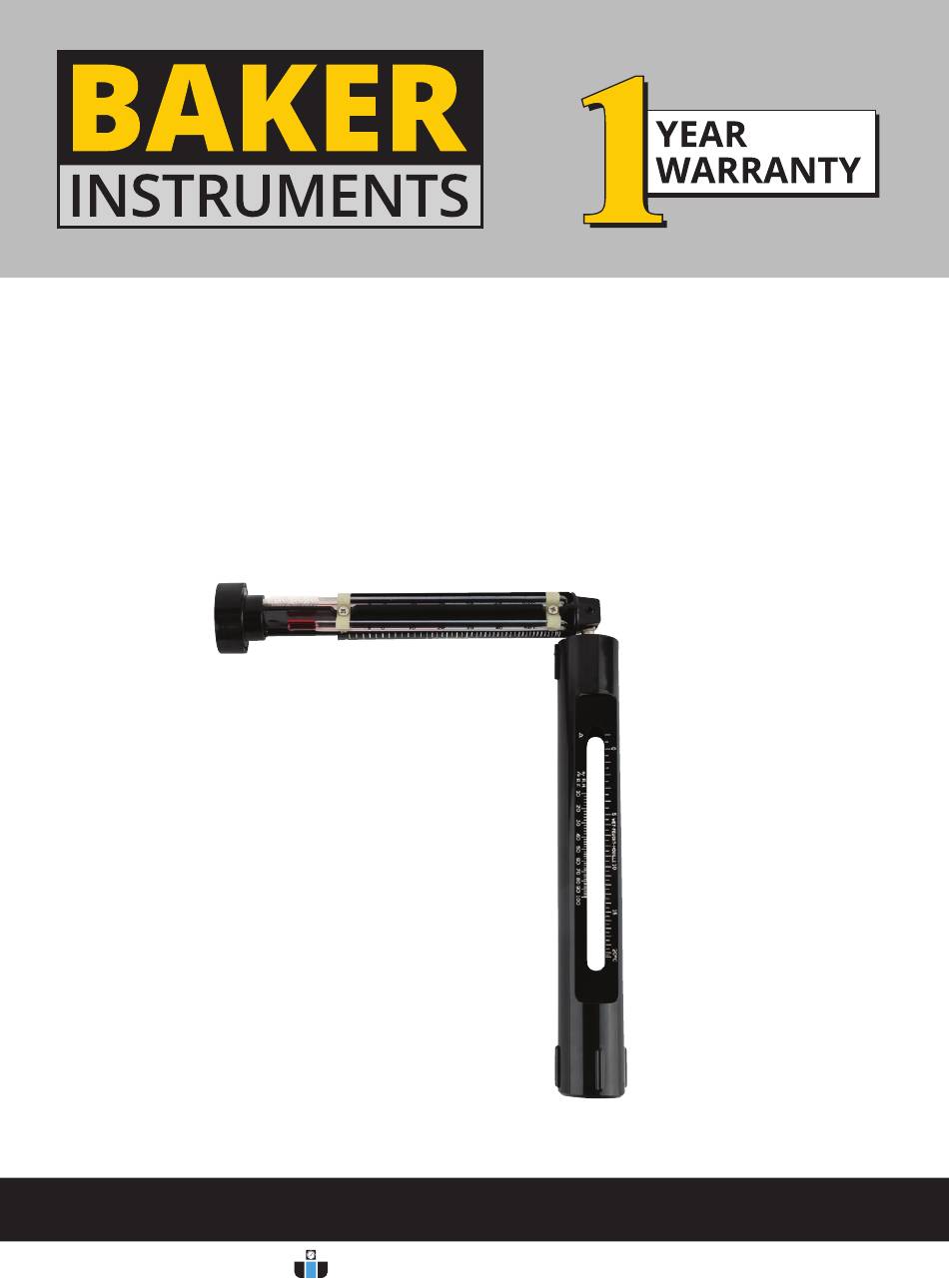

- Page 1 B6045 Model Sling Psychrometer, Celsius Scale Instruction Manual www.Baker-Instruments.com 1.888.610.7664 www.calcert.com sales@calcert.com...
-
Page 2: Table Of Contents
Care and Maintenance ..............8 Accessories and Replacement Parts ..........8 Introduction Thank you for purchasing your BAKER B6045 Sling Psychrometer. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your product will provide years of reliable service. -
Page 3: Features
-5 to 50°C Accuracy: ± 0.5°C Divisions: 1°C Humidity Measuring Range: 10 to 100% RH (non-condensing) Accuracy: ±5% R.H General Specifications Dimensions: 7.5 x 1 x 1 in (19.0 x 2.5 x 2.5 cm) Weight: 3.10oz (87.88g) www.Baker-Instruments.com 1.888.610.7664 www.calcert.com sales@calcert.com... -
Page 4: Instrument Description
Instrument Description 1. End Cap 2. Thermometer Clips 3. Psychrometer Body 4. Dry Bulb Thermometer 5. Tube 6. Roll Pin 7. Screws 8. Wet Bulb Thermometer 9. Wick www.Baker-Instruments.com 1.888.610.7664 www.calcert.com sales@calcert.com... -
Page 5: Operating Instructions
Ensure the reservoir on the DRY BULB THERMOMETER remains dry. 3. Preparing to Whirl: Pull the TUBE away from the BODY to allow the BODY to swivel freely. continued... www.Baker-Instruments.com 1.888.610.7664 www.calcert.com sales@calcert.com... - Page 6 BODY into the TUBE as necessary. 8. Reading Relative Humidity: Read the % Relative Humidity (% R.H.) indicated by the arrowhead on the lower scale of the calculator. www.Baker-Instruments.com 1.888.610.7664 www.calcert.com sales@calcert.com...
-
Page 7: Applications
(R.H.) for dry-bulb temperatures between -5°C to 50°C. For higher precision, refer to psychrometric charts or tables such as W.B. No. 235, "Psychrometric Tables for Obtaining the Vapor Pressure, Relative Humidity, and Temperature of Dew Point," available from the U.S. Government Printing Office. www.Baker-Instruments.com 1.888.610.7664 www.calcert.com sales@calcert.com... -
Page 8: Care And Maintenance
To separate the body from the tube, remove the roll pin from the plug and swivel assembly. The assembly can then be slid out from the back of the tube. Accessories and Replacement Parts B6046 Spare Thermometer (°C) B6048 Replacement Wicks (Pack of 6) www.Baker-Instruments.com 1.888.610.7664 www.calcert.com sales@calcert.com...
