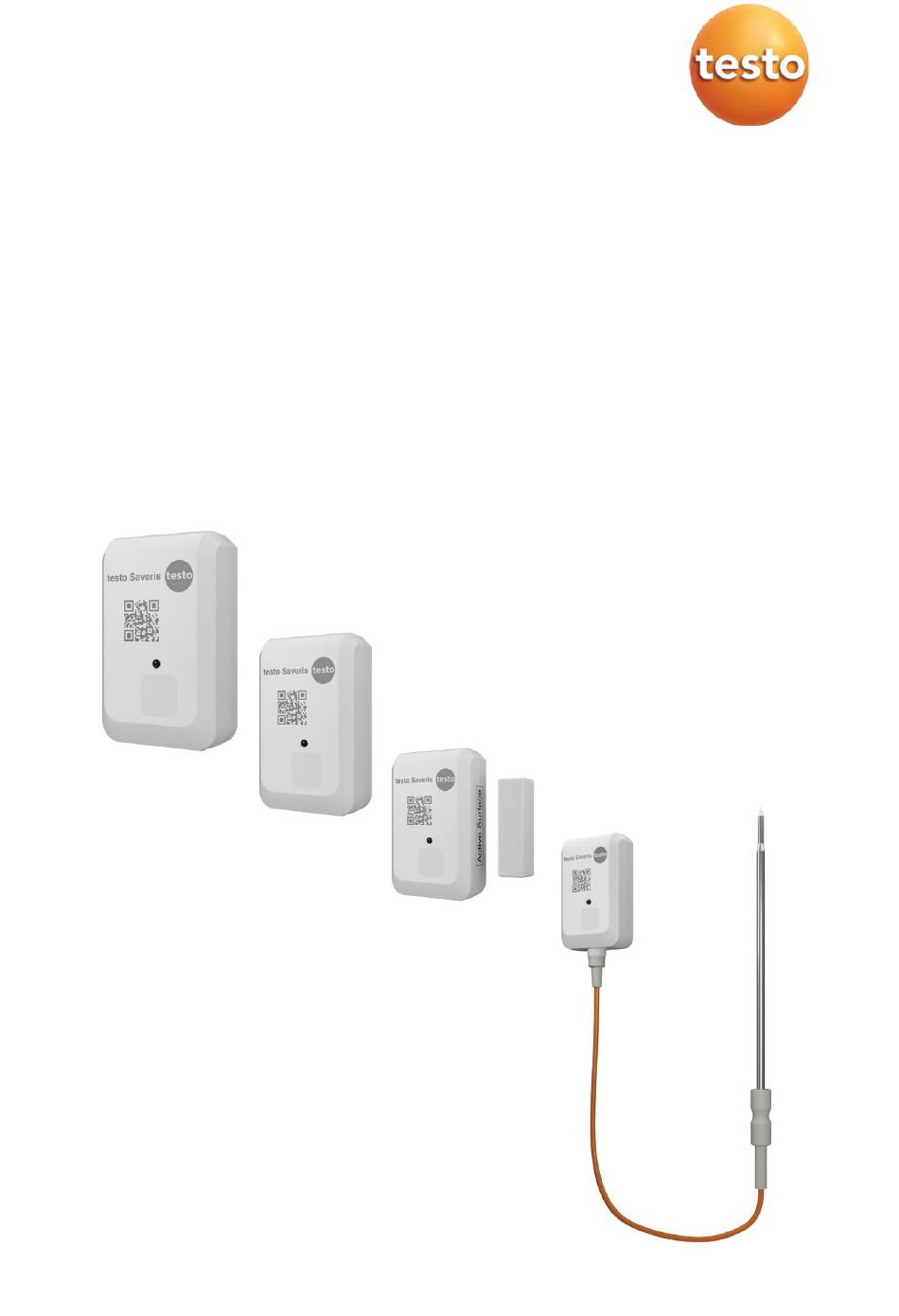

- Page 1 Wireless sensors 0572 2201 XX 0572 2202 XX 0572 2203 XX 0572 2204 XX Instruction manual...
-
Page 3: Table Of Contents
Contents Contents About this document ................3 Use ......................3 Icons ....................... 3 Safety and waste disposal ..............3 Safety instructions .................. 3 Warning notices..................5 Disposal ....................5 Product-specific approvals ..............5 Support ....................5 Description of the instrument ............. 5 System overview .................. -
Page 5: About This Document
• Hand this documentation on to any subsequent users of the product. • You will find the General Terms and Conditions in the login area of the respective testo Saveris solution at: www.testo.com/login. Icons Display Explanation Note: basic or further information Action: several steps, the sequence must be followed. - Page 6 Only maintenance and repair work that is described in the documentation • may be carried out on this instrument. Follow the prescribed steps exactly when doing the work. Only use original spare parts from Testo. Built-in batteries DANGER Risk of death! The built-in battery can explode if it gets too hot.
-
Page 7: Warning Notices
Testo website at: www.testo.com. 5 Description of the instrument Wireless sensors are part of testo Saveris Food Solution. As a stationary measuring technology solution, they are ideal for monitoring temperature and door contacts in refrigerated storage areas and storerooms. Wireless sensors are available in various designs and can therefore be adapted flexibly to suit a wide range of applications. - Page 8 The measuring values stored in the Cloud can be called up and analysed at any time on the relevant testo Saveris Cockpit. If limit values are exceeded, this is displayed immediately on the Control Unit or communicated via e-mail or SMS.
-
Page 9: System Overview
5 Description of the instrument System overview Scope of delivery The wireless sensors are available in various designs: Article Package contents Illustration Wireless sensor T1 Wireless sensor 0572 2201 XX Commissioning instructions Calibration certificate Second QR code label Wireless sensor T2 Wireless sensor 0572 2202 XX Commissioning... -
Page 10: Wireless Sensor T1
5 Description of the instrument Wireless sensor DC Wireless sensor with magnet 0572 2203 XX Commissioning instructions Calibration certificate Second QR code label Wireless sensor T3 Wireless sensor with core temperature probe 0572 2204 XX Commissioning instructions Calibration certificate Second QR code label Wall bracket for wireless Wall bracket sensor... -
Page 11: Wireless Sensor T2
However, the product simulator does not represent the core temperature of the food, but simulates the behaviour of the food. For the most accurate simulation, Testo recommends using the “Product Simulation Service”. Product temperature simulators (temperature mimicking sensors) are not intended to monitor the ambient temperature in cold rooms where they are used. -
Page 12: Functions And Led Displays
6 Commissioning In order for the wireless sensors to function, the measuring cycle must be set in the testo Saveris Cockpit as part of the configuration of the quality manual and the alarm settings must be made. Time-controlled alarms can be individually adjusted on site via the testo Saveris Cockpit. -
Page 13: Mounting Wireless Sensors
6 Commissioning With a typical measurement cycle of 15 min, a communication interruption can be bridged over a period of 75 h. A shortened or extended measuring cycle shortens or extends this period accordingly. Typical measurement Duration of data storage in case of cycle communication interruptions 5 min... -
Page 14: Door Contact Sensor
6 Commissioning Door contact sensor 6.1.2 Adhesive strips can be used to mount the wireless sensor DC. Please pay attention to the following points when fixing the wireless sensor The magnet is mounted on the • door. The sensor is mounted on the •... -
Page 15: Connecting Wireless Sensors With The Gateway
6 Commissioning The bracket on the edge of the food containers can be used to hold the core temperature probe. WARNING Sharp tip! Risk of injury! - Handle the probe measuring tip carefully before and after measurement. IMPORTANT Sensitive sensor technology! - Handle with care, do not expose the temperature probe to any kind of impact. -
Page 16: Configuring Alarms
QR code scanner opens. Scan in QR code. Temperature value is displayed. The measurement data collected is accessible online in the testo Saveris Cockpit. Deactivating/activating the wireless sensors In certain cases, it may be necessary to deactivate the wireless sensor. -
Page 17: Maintenance And Care
7 Maintenance and care Data Logger Select the menu item in your account. This brings up an overview of all wireless sensors for your account. Select the button with “3 dots”. Deactivate Select the field. The wireless sensor is deactivated and will not record any ... - Page 18 8 Technical data Wireless 0572 2201 0572 2202 0572 2203 0572 2204 sensor Radio Sub1-GHz frequency Wireless range For clear transmission path up to 300 m If clear transmission path obstructed up to 50 m General AES encryption encryption methods General data Wireless 0572 2201...
-
Page 19: Accessories
9 Accessories Temperature Application Battery life -30 °C Hardware temperature limit Up to 10 years -20 °C Deep-freeze application Up to 10 years 0 °C Cooling application Up to 10 years +25 °C Ambient conditions Up to 10 years +65 °C Keeping warm Up to 8 years +85 °C... - Page 20 Testo SE & Co. KGaA Celsiusstr. 2 79822 Titisee-Neustadt Germany Tel.: +49 7653 681-0 E-mail: info@testo.de www.testo.com 0970 2661 en 06 – 11.2024...
