Summary of Contents for TESTO 0572 2163

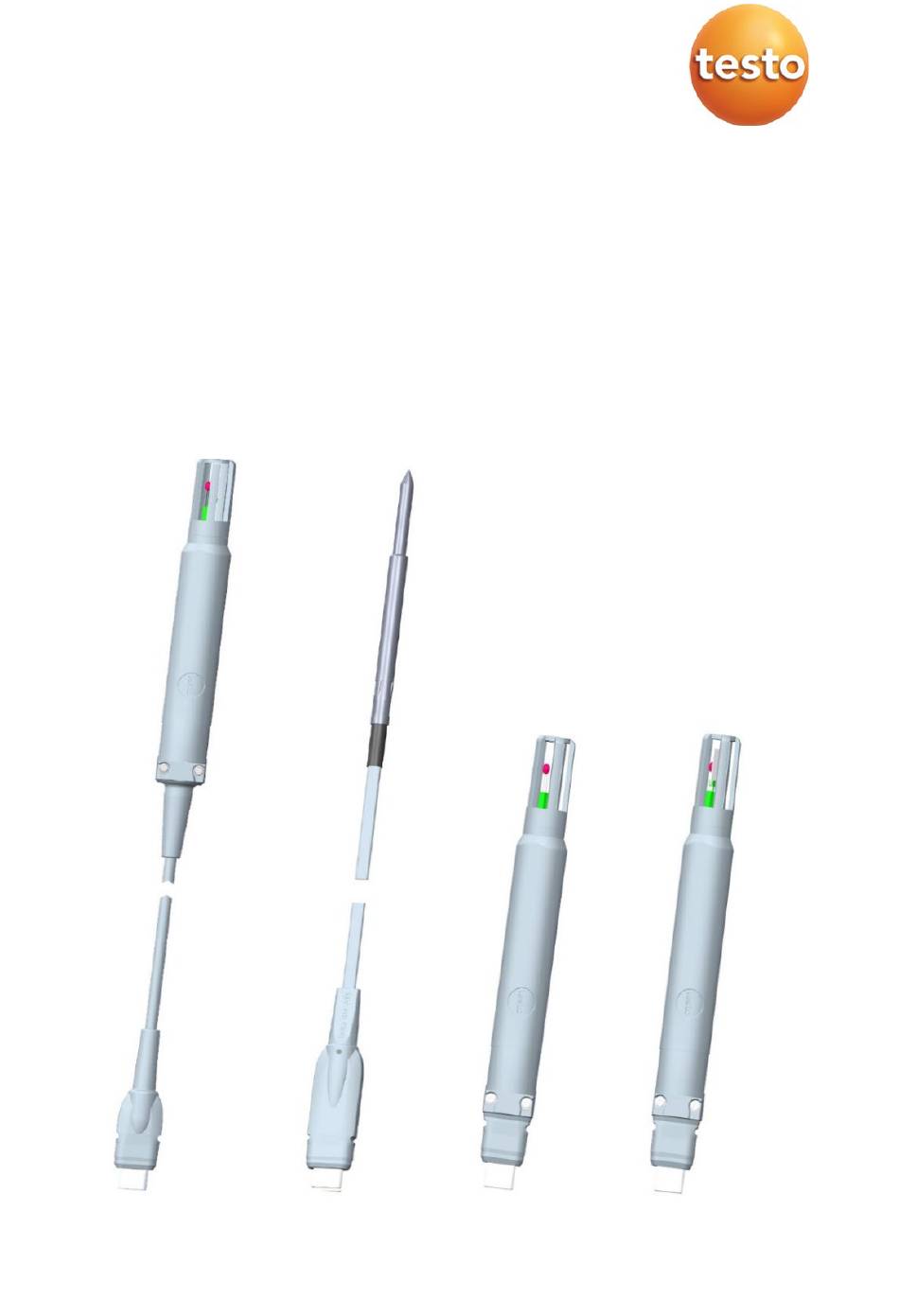

- Page 1 Probes and probe accessories for testo Saveris 1 Instruction manual...
-
Page 3: Table Of Contents
Contents Contents About this document ................3 Safety and disposal ................4 Probes ....................5 Digital probes ..................5 NTC probe ....................7 Pt 100 ..................... 8 Thermocouple ..................8 TUC extension cable for digital probes ..........10 Using the TUC extension cable ............10 Extension cable for digital sensors ............ -
Page 5: About This Document
Hand this instruction manual on to any subsequent users of the product. • The instruction manual for the testo Saveris 1 measurement data monitoring system is divided into the following sub-documents: Operating instructions for the testo Saveris 1 measurement data... -
Page 6: Safety And Disposal
Dangers may also arise from objects to be measured or the measuring • environment. Always comply with the locally valid safety regulations when carrying out measurements. Use only original spare parts from Testo. • Temperature information given on probes/sensors relates only to the •... -
Page 7: Probes
The digital door contact (0572 2161) and the digital analog coupler (0572 2166) are not supported by the WLAN logger testo Saveris 2 H2 (0572 2015 01). The digital analog coupler for testo 150 (0572 2166) is connected to testo 150 data logger modules in the same way as the other digital probes with TUC connectors. - Page 8 3 Probes Designation Order no. Measuring Accuracy Resolut Connec range tion Humidity/tem 0572 2165 -30 to +50 °C/ ±0.4 °C at +25 °C t RH: 20 s 0.1 °C perature 0 to 100 %RH ±2.0 %RH at t°C: 240 s probe with 0 to 90 %RH at +25 °C cable...
-
Page 9: Ntc Probe
3 Probes NTC probe Designation Order no. Measuring Accuracy Resoluti Connecti range Temperature 0572 1001 -40 to +125 °C ±0.5% of measured 0.1 °C Mini DIN probe with value ribbon cable (100 to +125 °C) ±0.2 °C (-25 to +80 °C) ±0.4 °C (other measuring range) Mini DIN... -
Page 10: Thermocouple
3 Probes Designation Order no. Measuring Accuracy Resoluti Connecti range Mini DIN Immersion 0628 0006 -35 to +80 °C ±0.2 °C 0.1 °C (-25 to +75 °C) penetration ±0.4 °C probe (-35 to -25.1 °C) ±0.4 °C (+75 to +80 °C) Waterproof 0615 1212 -50 to +150 °C... - Page 11 3 Probes Designation Order no. Measuring range Accuracy Resoluti Conne ction Temperature 0602 0646 -50 to +250 °C Class 2* 0.1 °C probe (type Magnetic 0602 4792 -50 to +170 °C Class 2* 150 s 0.1 °C temperature probe (type Magnetic 0602 4892 -50 to +400 °C...
-
Page 12: Tuc Extension Cable For Digital Probes
(type T). 4 TUC extension cable for digital probes Using the TUC extension cable Connect the cable to the testo 150 data logger module. Route the cable. Connect the TUC probe to the TUC socket of the extension cable. Insert the plug-in connector into the... -
Page 13: Extension Cable For Digital Sensors
4 TUC extension cable for digital probes Close the safety clip (click). Extension cable for digital sensors Description Temperature Protection Order no. range class TUC extension cable (2 m) -30 °C to +50 °C IP54 0449 3302 TUC extension cable (6 m) -30 °C to +50 °C IP54 0449 3306... -
Page 14: Other Accessories
Description Order no. Mini-DIN / TUC adapter 0572 2160 Mini-DIN / TUC adapters are exclusively designed for adapting digital probes with TUC plug to the WLAN data logger testo Saveris 2 H2 (0572 2015 01). Sintered caps 4.3.2 Description Order no. - Page 16 Testo SE & Co. KGaA Celsiusstr. 2 79822 Titisee-Neustadt Germany Phone: +49 7653 681-0 E-mail: info@testo.de www.testo.com 0970 2815 en 06 – 10.2024...
