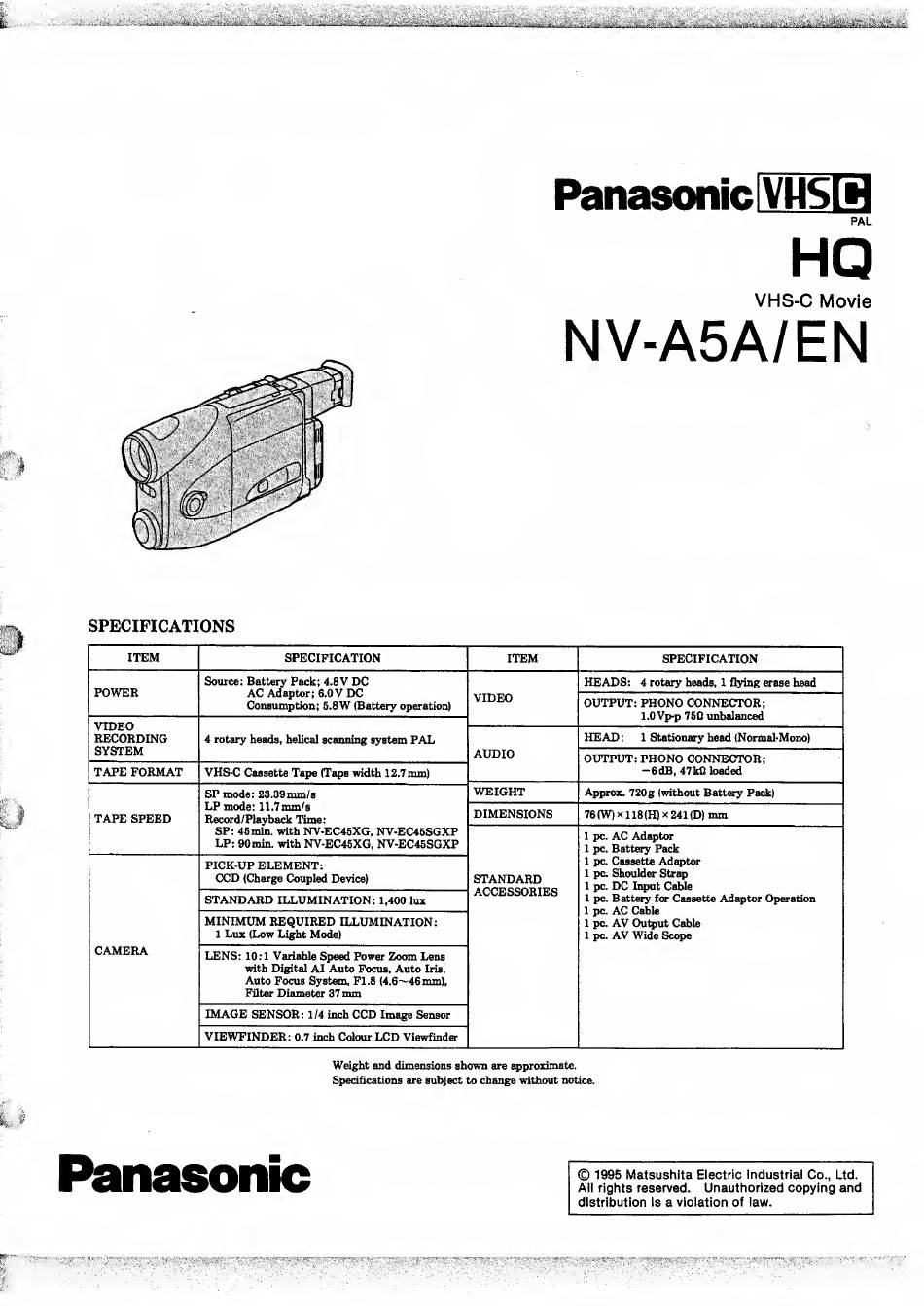

Panasonic NV-A5A Manual

ITEM SPECIFICATION ITEM
SPECIFICATION
POWER
Source: Battery Pack; 4.8V DC
AC Adaptor; 6.0V DC
Consumption; 6.8W (Battery operation)
VIDEO
HEADS: 4 rotary heads, 1 flying erase head
OUTPUT: PHONO CONNECTOR;
l.OVp-p 760 unbalanced
VIDEO
RECORDING
SYSTEM
4 rotary heads, helical scanning system PAL
AUDIO
HEAD: 1 Stationary head (Normal-Mono)
OUTPUT: PHONO CONNECTOR;
—6dB, 47kQ loaded
TAPE FORMAT
VHS-C Cassette Tape (Tape width 12.7 mm)
TAPE SPEED
SP mode; 23.39mm/s
LP mode: 11.7mm/s
Record/Playback Time:
SP: 46min. with NV-EC45XG, NV-EC45SGXP
LP: 90min. with NV-EC46XG, NV-EC45SGXP
WEIGHT Approx. 720g (without Battery Pack)
DIMENSIONS 76(W) x 118(H) x 241(D) mm
STANDARD
ACCESSORIES
1 pc. AC Adaptor
1 pc. Battery Pack
1 pc. Cassette Adaptor
1 pc. Shoulder Strap
1 pc. DC Input Cable
1 pc. Battery for Cassette Adaptor Operation
1 pc. AC Cable
1 pc. AV Output Cable
1 pc. AV Wide Scope
CAMERA
PICK-UP ELEMENT:
CCD (Charge Coupled Device)
STANDARD ILLUMINATION: 1,400 lux
MINIMUM REQUIRED ILLUMINATION:
1 Lux (Low Light Mode)
LENS: 10:1 Variable Speed Power Zoom Lens
with Digital AI Auto Focus, Auto Iris,
Auto Focus System, F1.8 (4.6—46 mm),
Filter Diameter 37 mm
IMAGE SENSOR: 1/4 inch CCD Image Sensor
VIEWFINDER: 0.7 inch Colour LCD Viewfinder
Weight and dimensions shown are approximate.
Specifications are subject to change without notice.
Panasonic
© 1995 Matsushita Electric Industrial Co., Ltd.
Ail rights reserved. Unauthorized copying and
distribution is a violation of law.
