Dear customer

Thank you for purchasing this product. For optimum performance
and safety, please read these instructions carefully.
Before connecting, operating or adjusting this product, please read
these instructions completely.
Please keep this manual for future reference.
Region number supported by this unit
Region numbers are allocated to DVD players and software
according to where they are sold.
≥The region number of this unit is "1".
≥The unit will play DVDs marked with labels containing "1" or
"ALL".
Example:
PP
HDD
DVD
SD
PC
1
1
2
ALL
4

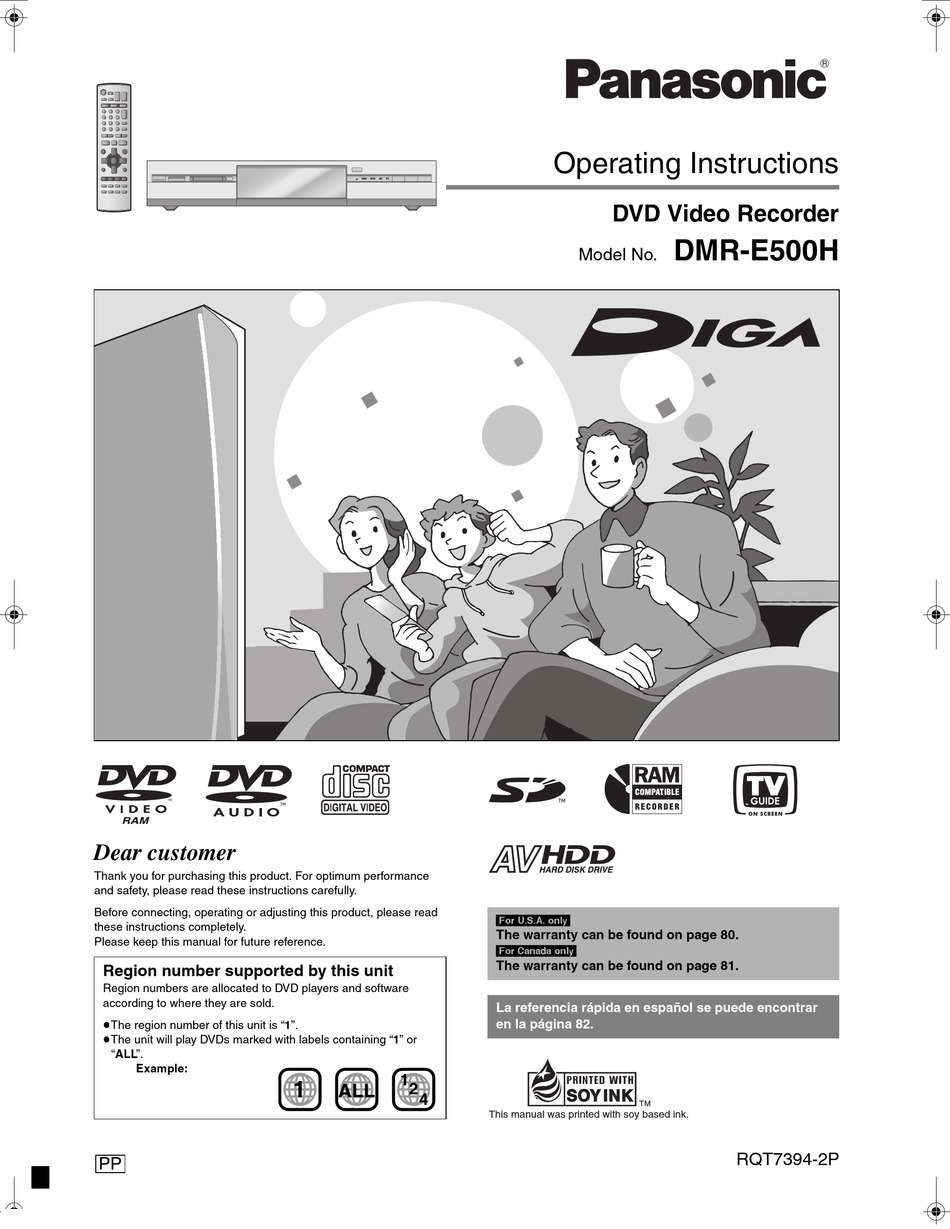

Operating Instructions

DVD Video Recorder

Model No.
[For\U.S.A.]only]
The warranty can be found on page 80.
[For\Canada]only]
The warranty can be found on page 81.
La referencia rápida en español se puede encontrar
en la página 82.
This manual was printed with soy based ink.
DMR-E500H
RQT7394-2P
