Nx series

Advertisement

applicable to units with serial numbers prior to 107xxxx
1
3

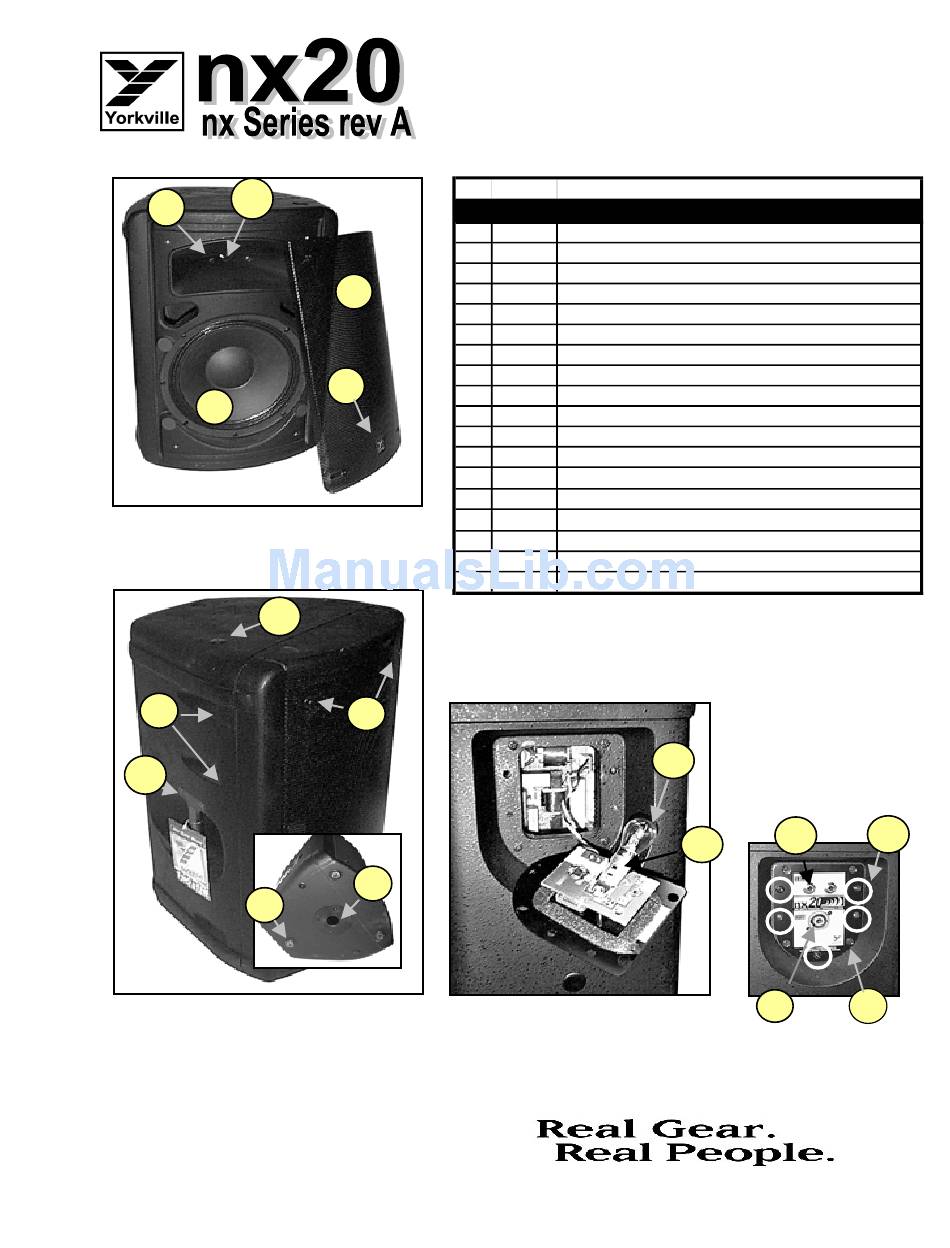

nx20 rev A front with grille removed
7
8
Side view if nx20 rev A w/ bottom view shown (inset)
*NOTE: Replacement grilles are 'Special-Order' and are only available while the model is in production.
Parts-Serv-nx20-revA-1v0.xls
2
4
5
6
9
11
10
ftp.yorkville.com
#
Part#
Description
1
8988
HF DRIVER BOLT M5 X 30 PAN SLOT MS JS500 BLACK
2
HD120
8R 40W 1 INCH DRIVER HD1208R
3
12HLP64-8 12 INCH 8R 350W PROG NEO SPEAKER
4
Z268*
5
8240D
"Y" LOGO SML. DOMED YORKVILLE BLUE
6
8989
PANEL FASTENER, PLASTIC, BLACK
7
8990
#8 X 2 1/2 SCKT DECK SCRW FLT JS500
8
8540
CAST BAR HANDLE "YORKVILLE" YS BLUE
9
8906
#14X2 ALLEN FLAT HD WOOD SCREW
10
8547
PLASTIC FOOT BLACK
11
8487
ADAPTER, SPEAKER STAND, PLASTIC, LARGE
12
3641
S.C. BAYONET WIRE SOCKET TINNED
13
3647
12V 18W SC BAYONET #1141 BULB
14
3924
1/4 INCH JACK PCB MT VERT 2XTIP HICURRENT
15
3628
SPKON 4C PCB MT VERT 250TAB GRY #4
8786
16
BOLT 10-32 X 1 1/4 PAN QD MS JS500 BLACK
17
8722
SCREW #8 X 1 INCH PAN QUAD TYPE AB B/O
18
8815
INTERNAL XO MOUNTING SCREW
nx20 rev A Crossover removed
note: to remove crossover, remove bolts (17) as highlighted above
13
14
12
15
16
18
