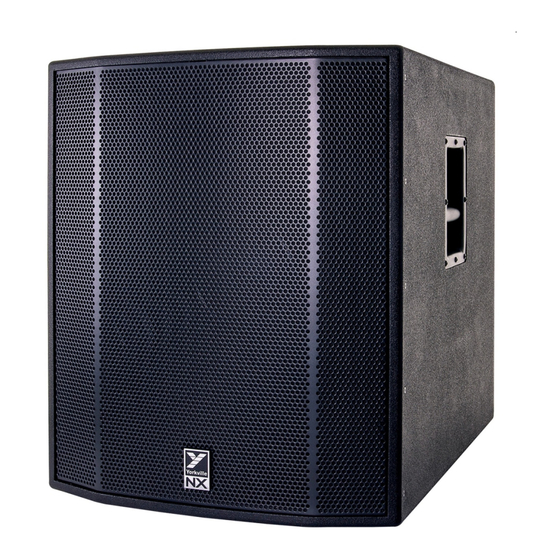

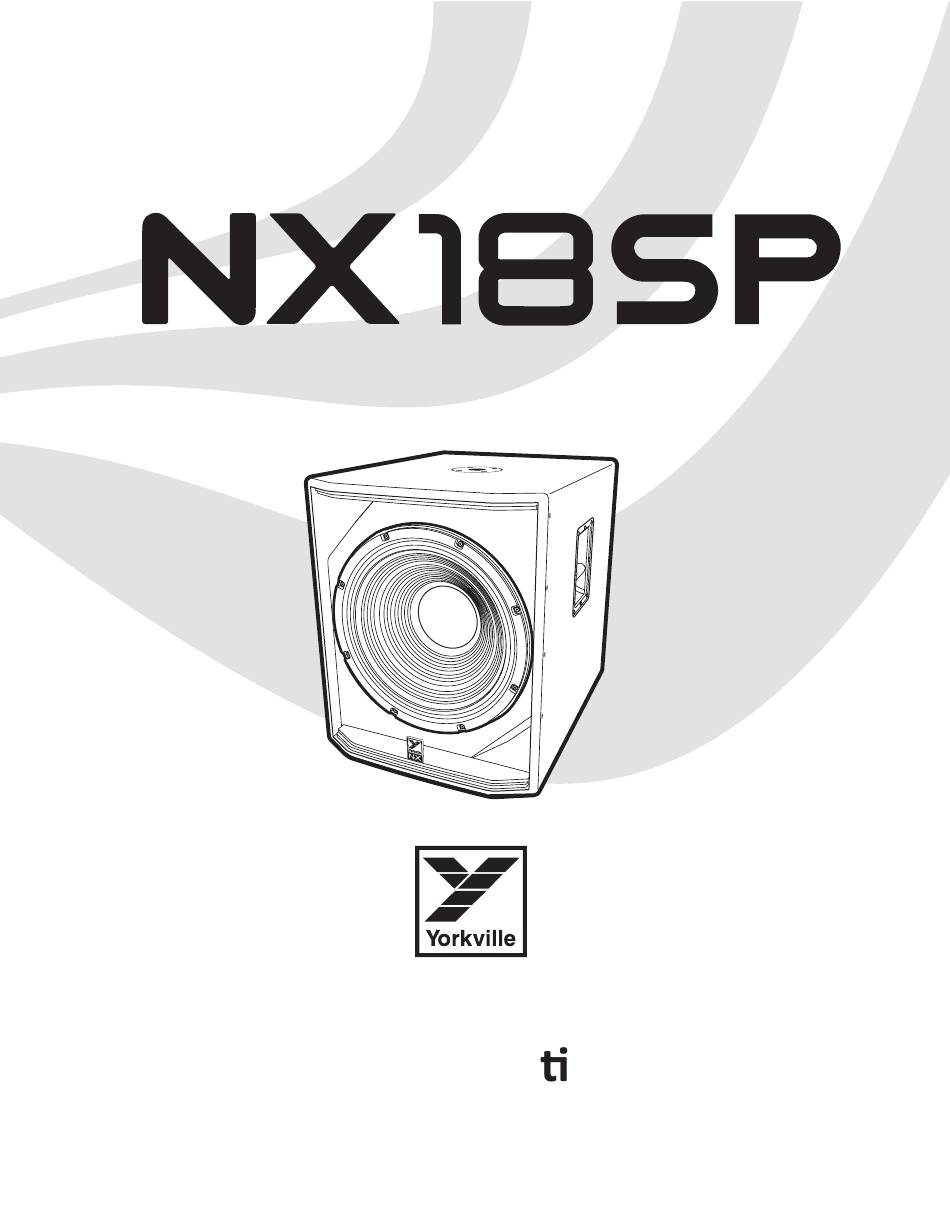

- Page 1 ACTIVE SUBWOOFER ENCLOSURE ACTIVE SUBWOOFER ENCLOSURE Owner’s Manual Manuel de L’U lisateur NX18SP...
-
Page 2: Important Safety Instructions - English / Français
Important Safety Instructions - English / Français I MP OR TA N T S A FE T Y I N ST R U C TI O N S This lightning flash with arrowhead symbol, within an The exclamation point within an equilatereal triangle is intended to alert the user to the presence equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous of important operating and maintenance (servicing) instructions in the literature accompanying voltage”... -
Page 3: Table Of Contents
Table of Contents NX18SP - Cover ..............a Caractéristiques ..............2 Important Safety Instructions - English / Français ....i 1. Indicateur LED d’alimentation ........2 EMC Declaration TYPE A - English / Français ....ii 2. Changement de mode ..........2 Table of Contents ..............ii... -
Page 4: Introduction
Note: The NX18SP’s built-in stand mounting adapter can be used with the Yorkville SW-Teletube3 accessory to support our NX cabinets. The support tube can be adjusted up to 78cm (31 inches) from end-to-end when used with the NX12P and 116cm (46 inches) from end-to-end when used with the NX8P. -
Page 5: Introduction
NX12P et 116 cm (46 pouces) de bout en bout lorsqu’il est utilisé avec le NX8P. Pour des raisons de sécurité contre le basculement, le NX18SP doit être conservé sur une surface plane pendant son utilisation. -
Page 6: Specifications - English
Specifications - English Specifications System Type Bass Reflex Subwoofer Active or Passive Active Power Output 1200 watts Program (2400 watts peak) 127dB cont. (134dB peak) Max SPL (C-Weighted) 35Hz-100Hz Frequency Response (Hz +/- 3dB) 100Hz Crossover Frequency Driver 18-inch, 4-inch voice coil Driver Protection Voice coil thermal (RMS), excursion (Peak) Amplifier Type... -
Page 7: Block Diagram
Block Diagram... -
Page 8: Optional Caster Installation
Optional Caster Installation OPTIONAL CASTERS - For easier mobility, casters are available for the NX18SP, please consult with your Yorkville dealer for purchasing options (YS Part#8969KIT). ROULETTES OPTIONNELLES - Pour une mobilité plus facile, des roulettes sont disponibles pour le NX18SP, veuillez consulter votre revendeur Yorkville pour les options d’achat, (YS pièce#8969KIT). -
Page 9: Warranty - English / Français
Unlimited Warranty Yorkville's two and ten-year unlimited warranty on this product is transferable and does not require registration with Yorkville Sound or your dealer. If this product should fail for any reason within two years of the original purchase date (ten years for the wooden enclosure), simply return it to your Yorkville dealer with original proof of purchase and it will be repaired free of charge. -
Page 10: Rear Page
CANADA U.S.A. Yorkville Sound Limited Yorkville Sound Inc. 550 Granite Court 4625 Witmer Industrial Estate Pickering, Ontario Niagara Falls, New York L1W 3Y8 CANADA 14305, USA Voice: 905-837-8481 Voice: 716-297-2920 Fax: 905-839-5776 Fax: 716-297-3689 Manual-Owners-NX18SP-00-1v2 • June 13, 2024 REAR-PAGE-00-5v1...
