Chicago Faucets 2200 Series Installation Instructions

Single lever faucet

Advertisement

Quick Links

Single Lever Faucet Installation Instructions
Installation Instructions for 2200 & 2300 series faucets
Overview
Chicago Faucets deck mounted faucets feature cast brass bodies and precision cartridges for years of reliable operation. Stainless steel hoses are provided as
standard equipment for easy installation; copper supply tubes are available as an optional accessory.
Notice to the Installer
• Read this entire instruction sheet before installing to ensure proper installation.
• Installation must comply with local codes and ordinances.
Pressurized plumbing fixtures shall be installed in accordance with manufacturer's recommendations. The supply piping to these devices shall be securely
anchored to the building structure to prevent installed device from unnecessary movement when operated by the user. Care shall be exercised when
installing the device to prevent marring the exposed surface.
NOTE: The information in this manual is subject to change without notice.
Please leave this manual with the facility manager after completing the faucet installation. This document contains information necessary for routine maintenance
and servicing.
NOTE: Before installation, turn off water supplies to existing faucet and remove faucet if replacing. Clean faucet basin and clear away debris. Flush all supply lines
before connecting to faucet. Failure to do so can result in debris clogging the inlets and/or cartridges.
Installation – Lavatory
1.
Turn off water supply to existing faucet.
2.
Remove old faucet and pop-up (if necessary).
3.
Thread the stainless steel hoses into the body and hand tighten securely.
Do not over tighten. Overtightening may damage the hose.
4.
Thread 1/4˝ -20 mounting stud fully into the body hole closest to the center, hand-tighten.
5.
If installing a model with pop-up waste assembly, install the upper lift rod into the body.
6.
If cover plate is used, secure it to faucet body with 1/4˝ -20 pan head screw. Thread
guide shanks into cover plate.
NOTE: For 2200 series faucets, slip washer is not used.
7.
Place faucet and cover plate onto sink and hoses through mounting hole. Use
plumbers putty to seal faucet to sink. Place ring of putty around hole openings of the
sink base.
NOTE: Use silicon sealant for porous stone or plumbers putty as recommended by
counter manufacturer.
8.
Place hold-down washer (solid surface facing downward) onto mounting stud from
below and secure with mounting nut finger tight.
9.
Adjust faucet position as necessary, then tighten all mounting hardware.
NOTE: If installing a new pop-up waste assembly, continue with steps 10-12,
otherwise skip to step 13.
10. Clean faucet basin and clean away debris.
11. Install the flange seal through the top of the sink, using plumbers putty between
flange seal and sink.
12. Install the flange seal washer, washer, locknut, and tailpiece to the sink drain hole.
Pivot hole must face to the rear. DO NOT tighten nut fully at this time.
13. Connect the supply hoses to the water supply. If installing with optional copper
supply tubes, connect the inlet tubes to water supply with compression nuts
(not supplied with inlet tubes). Tighten connections securely.
14. Insert the stopper fully into the drain hole. Insert the pivot ball-rod assembly into the
tailpiece pivot hole.
NOTE: Pivot ball-rod may be inserted so rod end engages through stirrup in stop
shank for vandal-resistant installation; or stirrup can rest on top of rod end for easy
removal and cleaning.
15. Secure the ball nut. Tighten ball nut lightly with pliers or wrench, but do not
over tighten.
16. Attach pivot ball-rod assembly to hanger with v-clip.
17. With lift rod in lowest position and pivot ball-rod in lowest position, attach the hanger
to the upper lift rod. Tighten thumbscrew. Fully lift the upper lift rod to test stopper.
Adjust if necessary.
18. Turn on water supply and check for leaks.
Installation – Kitchen
1.
Turn off water supply to existing faucet.
2.
Remove old faucet.
3.
Clean faucet basin and clear away debris.
4.
Thread the stainless steel hoses into the body and tighten securely.
Do not over tighten. Overtightening may damage the hose.
5.
Thread 1/4˝-20 mounting stud fully into the body, hand-tight.
6.
Position the slip washer between the faucet and cover plate. Secure cover plate to
faucet body with 1/4˝ -20 pan head screw.
7.
Thread guide shanks into cover plate.
8.
Place faucet and cover plate onto sink with hoses through mounting hole.
Use plumbers putty to seal faucet to sink. Place a ring of putty around inside of
cover plate.
NOTE: Use silicon sealant for porous stone or plumbers putty as recommended by
counter manufacturer.
9.
Place hold-down washer (solid surface facing downward) onto mounting stud from
below and secure with mounting nut finger tight.
10. Secure the cover plate to the sink using the guide shanks, washers, and nuts
supplied.
11. Adjust faucet position as necessary, then tighten all mounting hardware.
12. Slip spray hose through flange and route hose up through faucet center mounting
hole and slip washer supplied. Apply teflon tape to supply tube and attach hose to
threaded adapter on faucet.
13. Connect the supply hoses to the water supply. If installing with optional copper
supply tubes, connect the inlet tubes to water supply with compression nuts
(not supplied with inlet tubes). Tighten connections securely.
14. Turn on water supply and check for leaks.
For additional technical assistance, call 800/TEC-TRUE (800-832-8783) or visit our website at chicagofaucets.com.
1

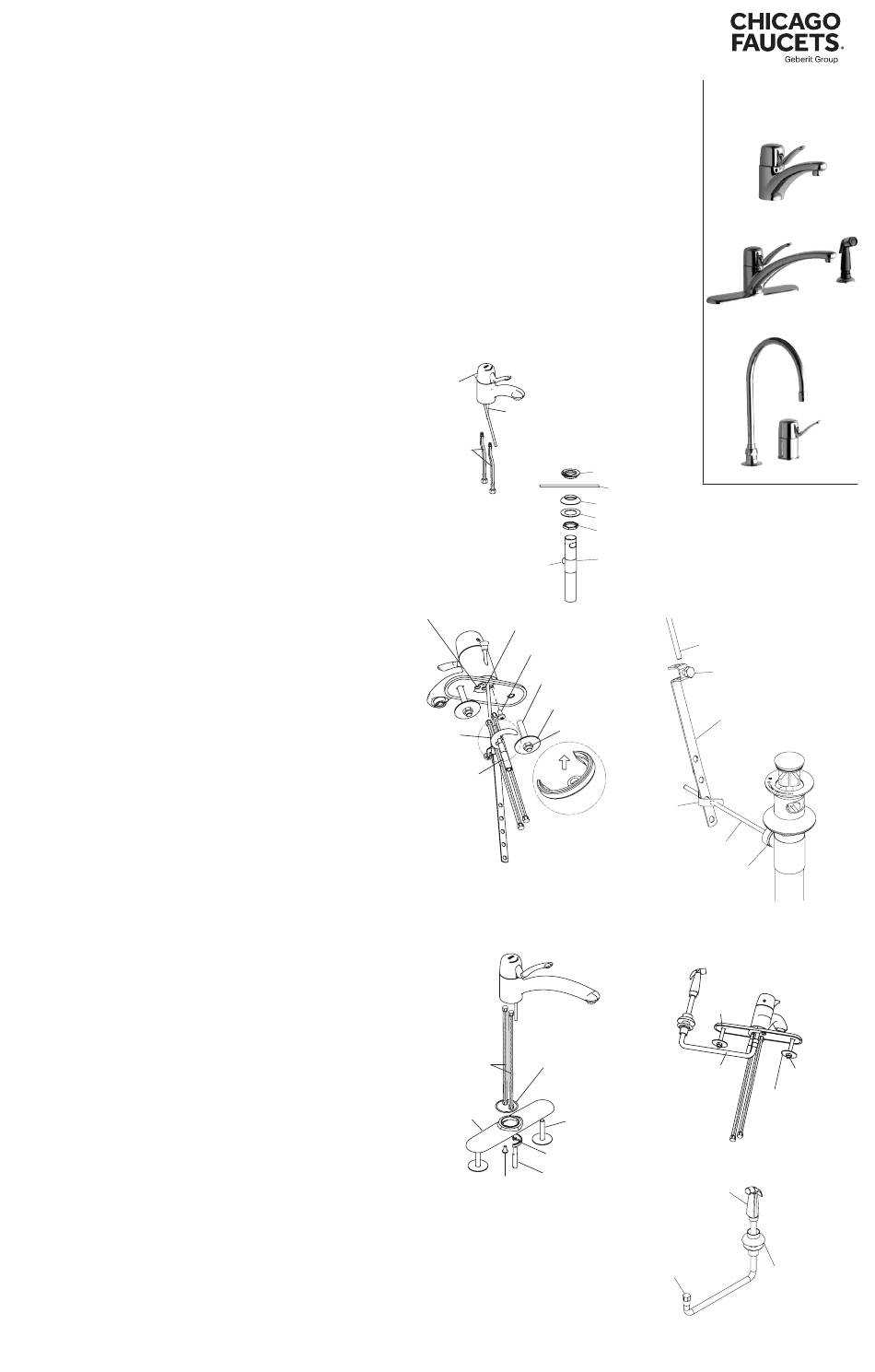

Upper Lift Rod
Mounting Stud
1/4˝ -20
Stainless
Steel
Hoses
Pivot Hole
(face toward
the faucet)
Cold Water Inlet
Hot Water Inlet
Screw, Pan Head,
1/4˝ -20
Guide Shank
Washer, 1-3/4˝
Nut, 3/8˝ -24
Hold-Down
Washer
Mounting Nut
Mounting Stud,
1/4˝ -20
Stainless
Slip Washer
Steel Hoses
Cover Plate
Guide Shank
Hold-Down Washer
Mounting Nut
Pan Head Screw
1/4˝ -20
Route through mounting hole
in sink and connect to fitting
Flange Seal
Sink
Flange Seal Washer
Washer
Nut
Tailpiece
Upper Lift Rod
Thumbscrew
Hanger
V-Clip
Pivot Ball-Rod Assembly
Ball Nut
Guide
Shank, 3/8˝
Spray Hose
Spray Assembly
on underside of faucet
Nut, 3/8˝ -24
Washer, 1-3/4˝
Flange Assembly

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2200 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Chicago Faucets 2200 Series

  • Page 1 Installation Instructions for 2200 & 2300 series faucets Overview Chicago Faucets deck mounted faucets feature cast brass bodies and precision cartridges for years of reliable operation. Stainless steel hoses are provided as standard equipment for easy installation; copper supply tubes are available as an optional accessory.
  • Page 2 Care and Maintenance All Chicago Faucets fittings are designed and engineered to meet or exceed industry performance standards. Care should be taken when cleaning this product. Do not use abrasive cleaners, chemicals or solvents as they can result in surface damage. Use mild soap with warm water for cleaning and protecting the surface of Chicago Faucets fittings.

This manual is also suitable for:

2300 series
