Chicago Faucets EQ Series User's Manual & Installation Instructions

EQ Series User Guide Installation Instructions
For single supply and dual supply EQ Series faucets

Overview

Chicago Faucets EQ Series faucets feature three designs in two finishes with heavy-duty cast brass spouts and high-quality electronic components. The
faucet is up and running in minutes without the need for programming. Superior user detection means EQ turns on when user approaches and shuts off
when user leaves. It also adjusts for optimal performance, saving water.

Safety Information

Read this entire user guide to ensure proper installation. Compliance and conformity to local codes and ordinances is the responsibility of the installer.
The following safety notes must always be complied with during handling of this product:
• Make sure there is enough space and lighting available during installation and service.
• Do not modify or convert this Chicago Faucets product yourself. All warranties will be voided.

Notice to the Installer

• Read this entire instruction sheet before installing to ensure proper installation.
• Installation must comply with local codes and ordinances.
• Do not use pipe dope.
• Care shall be exercised when installing the device to prevent marring the exposed, decorative surfaces.
The supply piping to these devices shall be securely anchored to the building structure to
prevent installed device from unnecessary movement when operated by the user.
NOTE: The information in this manual is subject to change without notice.
Installation may be performed at different times of construction by different individuals.
For this reason, these instructions should be left on-site with the facility or maintenance
manager.
NOTE: Before installation, turn off water supplies to existing faucet and remove faucet if
replacing. Clean faucet basin and clear away debris. Flush all supply lines before
connecting to faucet. Failure to do so can result in debris clogging the inlets and/or
internal control and mixing valves.
In order to complete the installation, you will need the following tools and supplies:
• Phillips Screwdriver, #1, #2, #3
• Adjustable Wrench
• Tape Measure
• Silicone-based Lubricant

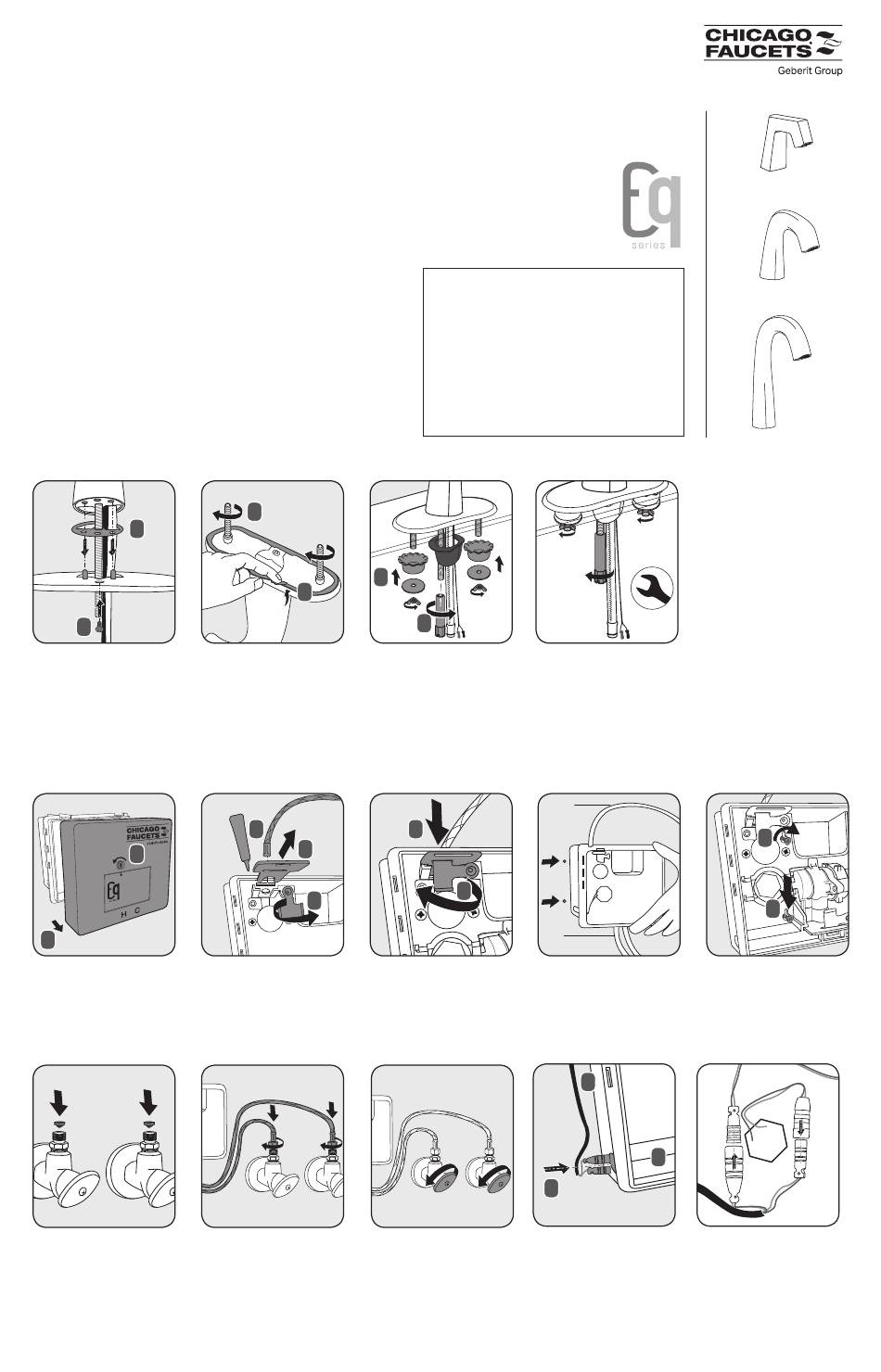

Mounting of Faucet and Optional Cover Plate

1
2
1. Install the gasket on the bottom
of the spout, flat side down. If
installing a cover plate, align the
holes in the spout base with the
pins on the plate, and feed the
power cable and braided hose
through the plate. Secure the
plate to the spout with the #3
Phillips screw.

Mounting Control Box

1
Remo ve screw
acce ss
for box
2
1. Remove the control box
cover by using a #2 Phillips
screwdriver to loosen the
cover screw.

Connecting Water Supply (dual supply unit shown)

1. Insert the filter screen gaskets
into the supply stops.
IMPORTANT: the filter screen
gaskets seal the connection
against leaks and must be
installed as shown.
For additional technical assistance, call 800/TEC-TRUE (800-832-8783) or visit our website at chicagofaucets.com.
1
• Drill, with 3/16˝ Bit
• Mallet
• Plumbers Putty
• 1/2˝ Deep Socket or #3 Flat Head Screwdriver
1
2
2. Attach the threaded rods to
the bottom of the cover plate.
Apply plumber's putty to the
underside of the cover plate
where shown.
3
2
1
2. Pivot the yellow locking tab and
remove the metal key at the
top of the control box. Apply
silicone-based lubricant to
the end of the spout hose and
insert it through the hole.
H C
2. A ttach the 3/8˝ female com-
pression supply hoses from the
control box to the supply stops.
Use a wrench to tighten the
nuts to the supply stops.
IMPORTANT: Remove any
debris or hardware from the sink
before opening the supplies and
testing the faucet.
Operating static pressure: 20-125 PSI (138-862 kPa)
Minimum static pressure for mixing: 30 PSI (207 kPa)
COLD water inlet temperature range: 40-80°F (4-27°C)
HOT water inlet temperature range: 100-180°F (38-82°C)
Maximum hot water range outlet from thermostatic
mixing valve: 80-120°F (27-49°C)
Maximum hot water range outlet from mechanical mixing
valve: 40-140°F (4-60°C)
Maximum pressure differential between Hot & Cold water
supplies: 20%;
Maximum inlet water supply temperature differential:
20°F (9°C)
2
1
3. Position the faucet on the 4. When the spout is in the
sink. For all installations, hand-
tighten the spout to the deck
with the large black spacer
and long mounting nut. For
installations with a cover plate,
also attach the large cup
washers, flat washers, and
wing nuts to the threaded rods.
1
2
3. Be sure to seat the hose firmly
before reinstalling the metal key
and securing it with the yellow
locking tab.

Connecting Power and Solenoid

1. Bring wire into box. Use length
3. Open the supply stops and
check for leaks. Note: water
may run through spout.
1/2˝ Socket
desired position, use a wrench
to tighten all mounting
hardware.
17-21˝
(43-53 cm)
24˝
(61 cm)
4. Determine the position of the
control box under the sink.
Hold the control box against
the wall and mark the locations
of the two mounting holes.
Orientation is not critical.
3
2
1
2. Attach power connections
of box for measurement. Snap
into holder on side.
EQ Angular
EQ Curved
EQ High Arc
1
2
5. D rill 3/16˝ holes, install wall
anchors and mounting screws.
Be sure to leave at least 1/2˝
(12mm) of the screw head
exposed. Secure the control
box to the wall using a #2
Phillips screwdriver.
as shown in the following
sections.
