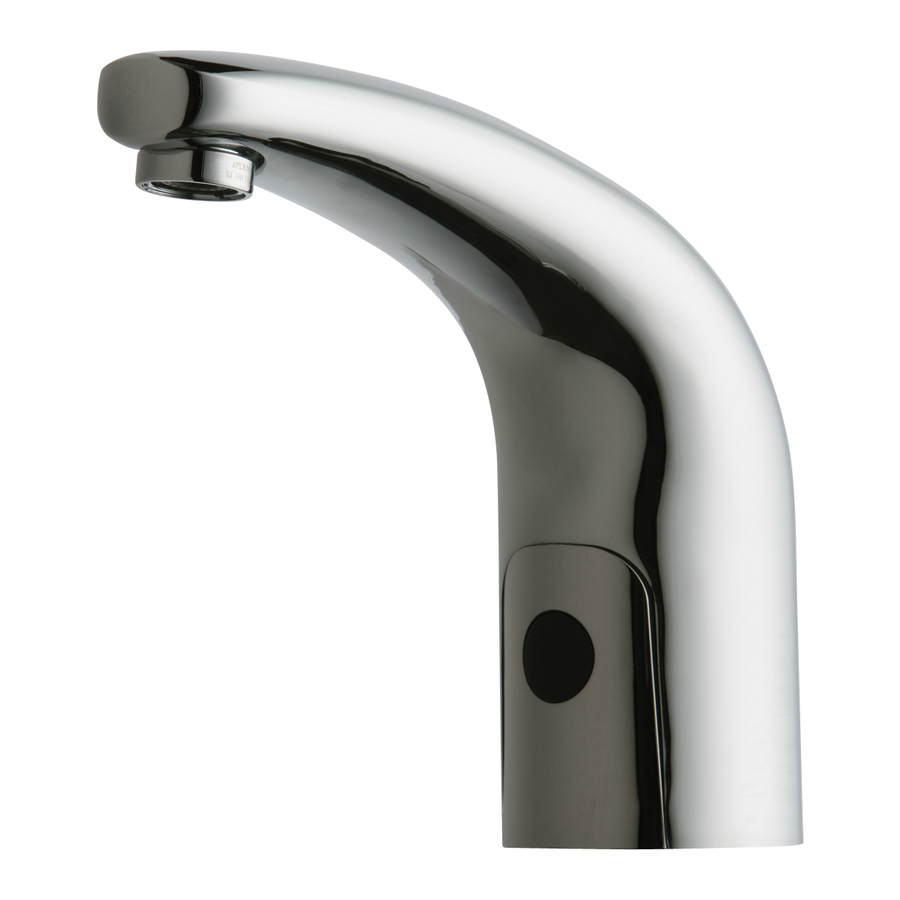

Chicago Faucets HYTRONIC User Manual

Cleaning or Replacing Inlet Filter
1 Close supply valves
2 Disconnect braided hoses
and clean or replace filter
(for a new filter, see "common
replacement parts")
3 Connect braided hoses with
filter to supply valves and
fully open.
Result — The filter is now cleaned or replaced.
Cleaning or Replacing Aerator
Result — The outlet is now cleaned or replaced.
HYTRONIC WITH SSPS USER GUIDE
Recommended for Single Supply
HyTronic Faucets Only
®
SAFETY INFORMATION
Read this entire user guide to ensure proper installation. Compliance and conformity to local
codes and ordinances is the responsibility of the installer. The following safety notes must
always be complied with during handling of this product:
• Make sure there is enough space and lighting available during installation and service
• Do not modify or convert this Chicago Faucets product yourself. All warranties will be voided.
IMPORTANT
• Installation may be performed at different times of construction by different individuals. For
this reason, these instructions should be left on-site with the facility or maintenance manager.
• Pressurized plumbing fixtures shall be installed in accordance with manufacturer's
recommendations. The supply piping to these devices shall be securely anchored to
the building structure to prevent installed device from unnecessary movement when
operated by the user. Care shall be exercised when installing the device to prevent
marring the exposed significant surface.
• Do not use pipe dope.
• Flush all the water supply lines before making connections.
Traditional Lavatory
Gooseneck
Contemporary Lavatory
Wallmount SSPS Generator
957.078.00.0 rev.05/12
