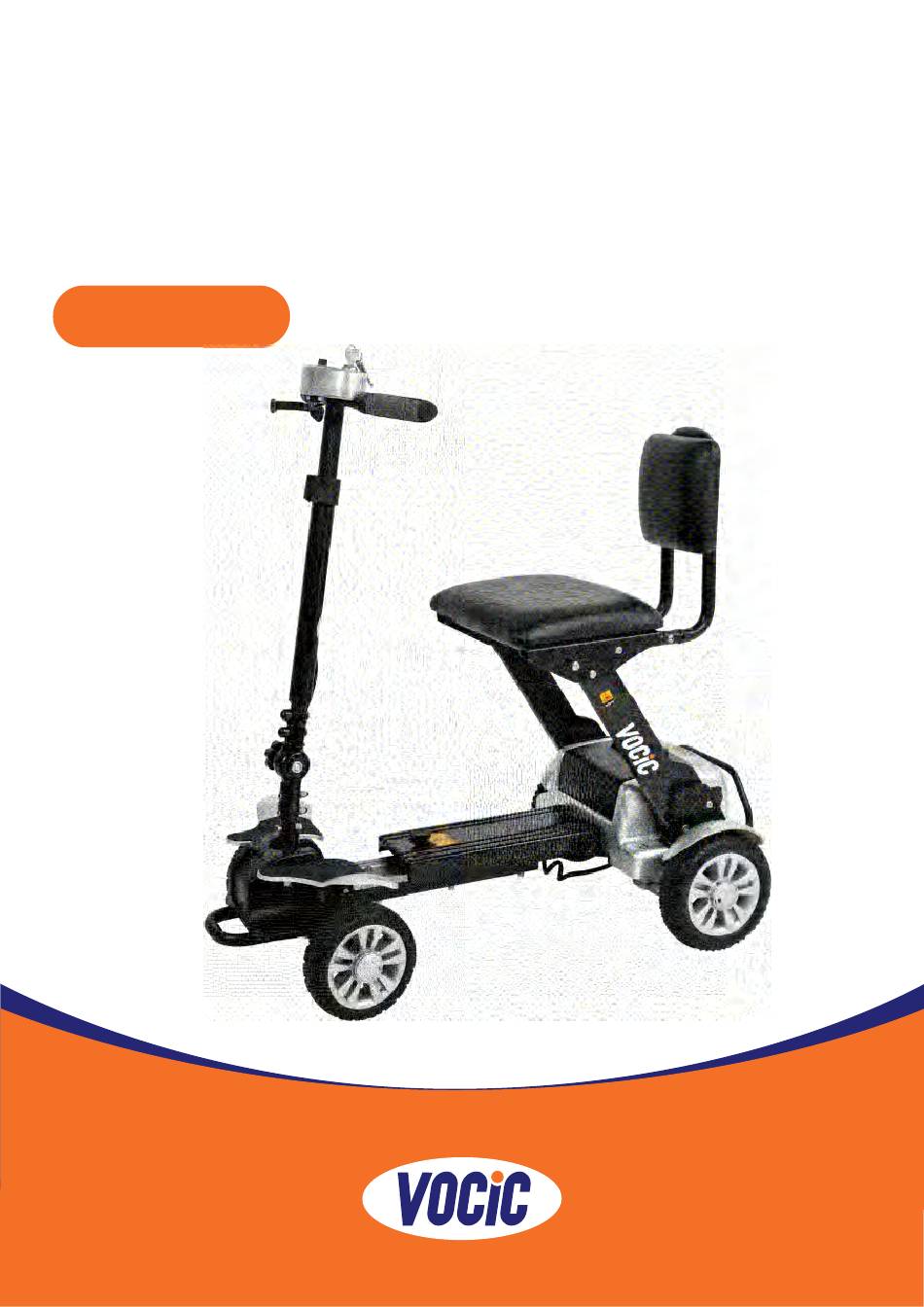

- Page 1 Folding Mobility Scooter Instruction Manual FDB05 V-ES-D71-A...
-
Page 2: Table Of Contents
CONTENTS Table of Contents I.Instruction II.Specification and Structure III.Assembly IV.Operation V.Battery and Charging VI.Care and Maintenance VII.Safety VIII.FAQ IX.Warranty... -
Page 3: I.instruction
Your Home Rehabilitation Partner I.Instruction Thank you for choosing VOCIC folding mobility scooter. This model is an ultra-light, folding mobility scooter specifically designed for your daily commuting and outdoor adventures. Read and follow all instructions, warnings, and notes in this manual before attempting to operate your mobility scooter for the first time. -
Page 4: Ii.specification And Structure
Specification and Structure What’s in the box Scooter Charger*1 PC Hex Wrenches*2 PCS Four-hole wrench*1 PC... -
Page 5: Specification
Your Home Rehabilitation Partner Specification Model FDB05 Material Aluminium Alloy Unfold Size (L*W* H)(mm/inch) 940 × 470 × 920 mm (37"×18.5"×36.2") Fold Size(L*W* H)(mmlinch) 720 ×470× 365 mm (28.3"×18.5"*14.4") Loading Capacity 150kg(330lbs) Motor 180W x 1pc brush motor Battery 24V10AH ×1pc lithium battery Max Speed 6 km/h (3.7mph) Mile Range... -
Page 6: Iii.assembly
III.Assembly The mobility scooter is pre-assembled. It only takes you 3 easy steps to fully assemble this mobility scooter. For the scooter test drive, please adjust to minimum speed to ensure your safety. OPENING THE PACKING BOX Unbox your new scooter, removing all protective liners, and proceed to extract the folded scooter from the package. -
Page 7: Iv.operation
Your Home Rehabilitation Partner IV.Operation WARNING！ Remove the key from the key switch before adjustments. Never attempt to do ajustments while the scooter is in motion. Control Panel (2) Battery Life Indicator (3) Speed Adjustment Knob (1) Power Switch Power Switch： Insert the key into the key switch Battery Life Indicator：... -
Page 8: Telescopic Handle
Steering Post Tiller angle can be adjusted by rotating the knob under the post. The tiller angle can be adjusted to most comfortable position which suits you. To do so, first loosen the lock nuts located at the lower end of the tiller. - Page 9 Your Home Rehabilitation Partner Telescopic Handle Pull up plastic clipper for adjusting to length of handle, push back the clipper at desired length. To adjust the length of the handle, pull up the plastic clipper and then push it back down at the desired length to lock it in place. Extendable Frame You can choose from three lengths for the frame.
- Page 10 Folding and Unfolding the Scooter The scooter can only be folded and unfolded manually. The bottom frame is adjustable. If you prefer a smaller folded size, we suggest pulling up the knob on the horizontal axis and slid- ing the frame to its shortest length. However, if your car trunk has ample space, we recommend leaving it at its original length to avoid having to adjust it every time you unfold it.
-
Page 11: V.battery And Charging
Your Home Rehabilitation Partner V.Battery and Charging This knob allows you to preset and limit your scooter’s top speed. Maximum forward speed: 3.75mph, maximum reverse speed: 2.17mph WARNING！ Your scooter’s batteries must be charged with the off-board battery charger supplied by us. Do not use any automotive-type battery char- ger. -
Page 12: Vi.care And Maintenance
VI.Care and Maintenance In order to guarantee the safety and extend the service life, your scooter needs routine maintenance like other electric vehicles. Pre- ventative maintenance is very important. Some routine inspections could be performed by yourself. Hope you could make a time list of maintenance according to the content of this section and use your scooter better. - Page 13 Your Home Rehabilitation Partner The scooter should be handled with care to prevent sharp objects from scratching the seat leather, PU handrails, and plastic orna- ments, as this may affect the scooter's appearance. To protect not only the battery but also the plastic parts and stickers, keep the scooter in a shady place and avoid prolonged exposure to sunlight.
-
Page 14: Regular Inspection
Clean-keeping Do not wash your scooter with water or allow it to come into direct contact with water. The scooter's shroud is made of ABS plastic, which can be cleaned with a damp cloth. Do not clean the seat with chemical agents, as they may make it slippery or cause it to dry out and crack. -
Page 15: Vii.safety
Your Home Rehabilitation Partner VII.Safety It’s suggested to perform the safety check prior to using your scooter: Check all electrical connections. Make sure they are tight and not corroded. Check all connections to the battery box. Make sure they are cor- rect and secure. -
Page 16: Ix.warranty
ABS Shroud and rubber pads Tires Upholstery and seat Damage caused due to abuse misoperation, accident and negli- gence Damage caused due to improper operation, maintenance and storage Business or other non-normal use CUSTOMER SERVICE If you have any questions, please contact us: support@vocic.com. - Page 17 Your Home Rehabilitation Partner @VOCiCMedical @VOCiCMedical @VOCiCMedical @VOCiCMedical lf you have any questions, please contact us: support@vocic.com...
