- Page 1 Mobility Scooter INSTRUCTION MANUAL Please read the instruction manual carefully and service-us@vocic.vip completely, and save it for future reference.
-
Page 2: Table Of Contents
Contents 1.Introduction........................2 ......................3 2.What’ s in the box 3.Assembly........................6 4.Operation........................8 5.Battery and Charging....................11 6.Care and Maintenance....................12 7.Safety.........................14 8.FAQ........................17 9.Warranty........................19... -
Page 3: Introduction

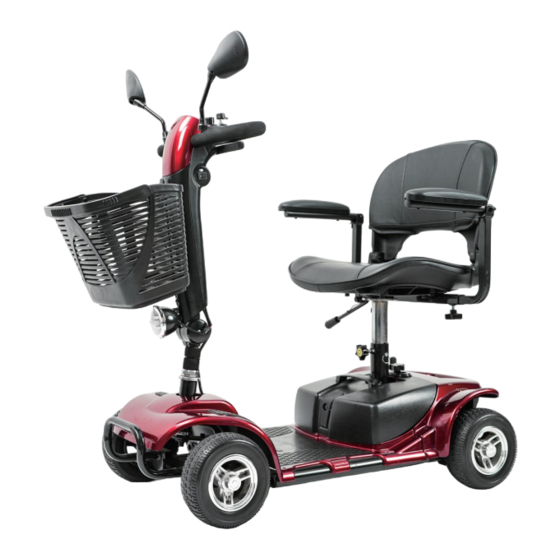

1.Introduction Thank you for choosing Vocic mobility scooter. This model is a standard 4-wheel mobility scooter that has everything you need for convenience and comfort. Whether it’ s for your own use or as a gift, this is the perfect product for you. -
Page 4: What' S In The Box
2.Specification and Structure What’ s in the box 1. Battery 2. Seat 3. Main Body 4. Basket 5.Armrest 6.Headlight 7. Power adapter 8. User Manual and Tool Kit 9.Rearview mirror Handlebar Tiller Console Backrest Armrest Seat Cushion Front Body Battery Anti-tip Wheel fig.1 Brake Lever... - Page 5 2.What’s in the box 1. TILLER CONSOLE (see fig.2) a. Horn Button b. Speed Adjustment Knob c. Battery Condition Indicator d. Control Lever fig.2 e. Handlebar f. Headlight Switch g. USB Port 2. CHARGING AND ELEC- TRIC CONTROL SYSTEM (see a.
- Page 6 Specification Overall size (L*W*H) 1020*500*840mm Seat height 520mm Seat width 430mm Seat depth 350mm Armrest height 210mm Backrest height 330mm Scooter weight(with batteries) 42Kg Max. speed 6km/h Braking distance on the flat ≤1500mm Min. turning radius 1200mm Load capacity ≤120kg Travel Distance in Theory 15 km/9.32 Miles Static stability...
-
Page 7: Assembly
3. Assembly For ease of transportation and to minimize potential damage to the scooter, the batteries, seat unit, and scooter body are individually packaged. Therefore, kindly assemble these components before using the scooter. And keep in mind, that firstly install the battery, and then assembly the seat. (Note: For the scooter test drive, please adjust to minimum speed to ensure your safety. - Page 8 3. Assembly fig.5 fig.6 fig.A CAUTION! 1. Check and clean the electrodes and remove any foreign bodies on them that may cause poor electrical contact. 2. Incorrect placement of the batteries may cause the scooter unusable. 3. Please firmly tighten the knob on the platen. Otherwise, there will be a SEAT ASSEMBLY 1.
-
Page 9: Operation
4. Operation WARNING! Remove the key from the key switch before adjustments. Never attempt to do adjustments while the scooter is in motion. SEAT HEIGHT ADJUSTMENT The seat height could be adjusted by the hole distance. Pull up the seat lock-lever located on the low right of the seat to unlock the seat. Pull up the seat. - Page 10 4. Operation TILLER CONSOLE The tiller console encompasses all the controls necessary for operating your scooter, including the key switch, speed adjustment knob, throttle control lever, and battery condition indicator. With these controls on the console, you can manage various movements of your scooter. POWER SWITCH (See fig.2) Plug the key into the key switch The light on the battery indicator illuminates.
- Page 11 4. Operation OFF-BOARD CHARGER (see fig.3) Open the hasp on the battery box, you could charge your scooter with the off-board charger through a 3-pin charger socket inside the battery box. (see fig.3) Please refer to Battery and LOAD PROTECTOR (See fig.3) The load protector serves as a safety feature.
-
Page 12: Battery And Charging
5. Battery and Charging This scooter is working with two 12V12AH durable and deep-cycle lead-acid batteries, which are sealed and maintenance free. WARNING! Your scooter’ s batteries must be charged with the off-board battery charger supplied by us. Do not use any automotive-type battery charger. Charging Batteries with the Off-board Charger The batteries could be charged on the scooter or separately. -
Page 13: Care And Maintenance
6. Care and Maintenance In order to guarantee the safety and extend the service life, your scooter needs routine maintenance like other electric vehicles. Preventative maintenance is very important. Some routine inspections could be performed by yourself. Hope you could make a time list of maintenance according to the content of this section and use your scooter better. - Page 14 Storage The scooter should be stored in dry environment, instead of extreme temperature(-5℃). The batteries should be dissembled if the scooter is expected to store for long. If not able to store in above environment, then the frame, connectors and electrical system may get rusted or damaged. Clean-keeping •Do not wash your scooter with water or contact water directly.
-
Page 15: Safety
7. Safety It’ s suggested to perform the safety check prior to using your scooter: •Check all electrical connections. Make sure they are tight and not corroded. •Check all connections to the battery box. Make sure they are correct and secure. •Check the brakes. - Page 16 7. Safety THIS SCOOTER HAS TWO BRAKE SYSTEMS. 1. ELECTRIC BRAKING SYSTEM: DURING DRIVING, THE ELECTRIC SYSTEM COULD GRADUALLY SLOW AND STOP YOUR SCOOTER WHEN THE USER RELEASES THE CONTROL LEVER TO ITS INITIAL POSITION. 2. MOTOR BRAKING SYSTEM: WHEN THE ELECTRIC SYSTEM SLOW THE SCOOTER TO COMPLETELY STOP, THE DAMPER OF MOTOR BRAKING SYSTEM WILL BE AUTOMATICALLY CLOSED TO GET THE WARNING! When the scooter is in power mode, the brake lever must be put backward and in power mode.
- Page 17 7. Safety Electromagnetic Interference Radio waves from mobile phones, radio receivers or other transmitters such as radio and TV stations could affect your scooter’s use if your scooter is in the range of their influence. Your scooter may be out of order due to their influences. WARNING! The electrical devices maybe influenced by the EM.
-
Page 18: Faq
8. FAQ Q: I installed everything, and inserted the key, why the scooter just doesn’t turn on? A: Firstly please check the battery. Make sure the cap is parallel to the battery handle. Tighten the screw. As shown below. Secondly, please check the switch lever on the right back of the scooter. - Page 19 8. FAQ Q: Is the seat height adjustable? A: Yes, there are 3 options for you to choose. You can adjust the height according to your need. Q: Is the armrest adjustable? A: Yes, armrest is liftable and seat is 360° swivel for easy onboard and offboard. Q: What is the mileage? A: It can run for 15 miles on a full charge.
-
Page 20: Warranty
Damage caused due to abuse misoperation, accident and negligence Damage caused due to improper operation, maintenance and storage Business or other non-normal use CUSTOMER SERVICE If you happen to have any question, please feel free to contact us via support@vocic.com. - Page 21 Your Home Rehabilitation Partner CERTIFICATE Product name: Mobility Scooter Itme Model： W3431R SN: J331610431R23001 Date of manufacture: Inspector： Product inspection： Zhejiang Innuovo Rehabilitation Devices Co.,Ltd. Instagram Facebook Youtube...
