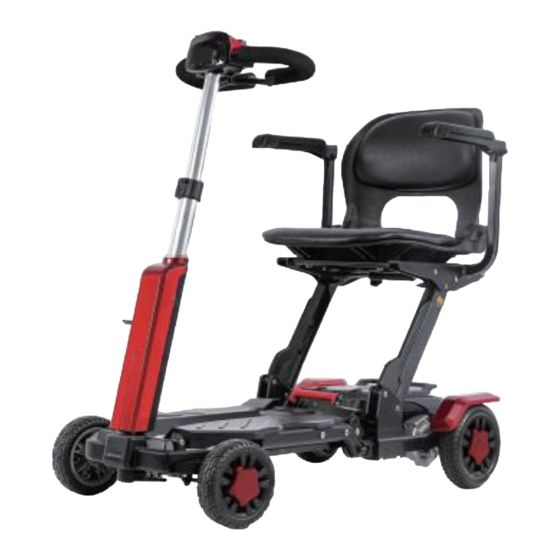

Electric Scooter
INSTRUCTION MANUAL
> > > English 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FDB07 and is the answer not in the manual?

Questions and answers

Related Manuals for VOCiC FDB07

Summary of Contents for VOCiC FDB07

  • Page 1 Electric Scooter INSTRUCTION MANUAL > > > English 1...
  • Page 2 PREFACE Dear Users, The manual is to assist you operating and maintaining the scooter, please go through it with necessary information in mind prior to use the scooter. Any problem which is not cover in here or any confusion of the manual, feel free to communicate with your local dealers or distributors.

  • Page 3: Table Of Contents

    Contents 1. Symbol Definition...................... 1 2. Security Guidance...................... 3 3. Product Related Explanation..................5 4. Major Parts........................6 5. Specifications......................7 6. Specification Diagram....................8 7. Contents In Scooter Carton..................9 8. Main Operational Parts Function................12 9. Folding And Open....................13 10. Battery And Charging....................15 11. Battery Safety And Life Guide.................18 12.

  • Page 4: Symbol Definition

    1. SYMBOL DEFINITION Warning Attention, see instruction Beware of potential hazard for use Refer to instructions for Refer to instructions for use - Mandatory use - Recommended Failure read Failure read instructions for use could instructions for use could introduce a hazard introduce a hazard Product fulfill Manufacturer...
  • Page 5 Danger of explosion Package Number Keep dry Foot Switch Equipotential CF application part Switch Fuse PCTB Volume control Disposal recycling Do use cel phone, remote only authorized recycling speakers, note book companies recycle computer or other wireless parts this mobility ejecting device while oper scooter.

  • Page 6: Security Guidance

    2. SECURITY GUIDANCE 1. The user must perform all of the procedures in this manual. 2. This product is suitable for users with age between 18 to 75 years old. 3. Do not drive on public highway. 4. No over cross any gap which is over 100 mm (3.94") in width. 5.
  • Page 7 Statement Indications for use: It is a motor driven, indoor and outdoor transportation vehicle with the intend ed use to provide mobility to a disabled or elderly person limited to a seated position. The Scooter has a base with alumini um alloy frame, two front wheels, two rear wheels, a seat, an adjustable steering column, a tiller console, an electric motor, an electromagnetic brake,2 recharge able Lithium-Ion Batteries with an off-board charger.

  • Page 8: Product Related Explanation

    Label of the Scooter Product Name: Electric Scooter Model: FDB07 (Read the User Guide for Other Details) Distributor: MATESIDE GLOBAL US INC. Address: 16261 Gale Ave, City of Industry, CA 91745 Legal Manufacturer: Anhui JBH Medical Apparatus Co., Ltd.

  • Page 9: Major Parts

    4. MAJOR PARTS Control panel Backrest Armrest Adjustable height handle Seat cushion Control panel Seat supporting frame Lithium battery Plastic pedal Decorative cover Electric switch Gas spring tilting device Front frame Rear wheel Front wheel...

  • Page 10: Specifications

    5. SPECIFICATION Model FDB07 Material Aluminium Alloy Unfold Size (L * W * H) (mm/inch) 980 × 490 × 850 mm(38.6"×19.3"×33.5") Fold Size (L * W * H) (mm/inch) 390 × 490 × 720 mm (15.4"×19.3"×28.3") Loading Capacity 120 kgs (265 lb) Motor 270W ×...

  • Page 11: Specification Diagram

    6. SPECIFICATION DIAGRAM 400 mm (15.7"） 850 mm (33.5") 165×50 mm 190×54 mm (6.5"×2") (7.5"×2.1") 980 mm (38.6") 485 mm (19.1") 460 mm (18.1") 720 mm (28.3") 530 mm (20.9") 490 mm (19.3") 390 mm (15.4")

  • Page 12: Contents In Scooter Carton

    Upon receipt of the scooter, please open carton packing and check if ther follow ings are included: Scooter Power transfer Armrests Lithium battery Charger connection Mobility Scooter INSTRUCTION MANUAL > > > English 1 service-us@vocic.vip Remote control key Tools Safety belt Users manual...

  • Page 13: Main Operational Parts Function

    8. MAIN OPERATIONAL PARTS FUNCTION Handle Bar Set The handle bar set including Control Panel ( with LCD display of battery Power, Driving Speed km/h, Total Driv ing Distance and climatetemperature, plus Key Switch, Speed Setting Knob and Horn.), Delta Handle, Directional Control Lever. The major Photo 1 operational functions are set.
  • Page 14 Speed Controller The adjustment of driving speed through speed control knob by finger range from 0 km/h to 6 km/h at your choice. Turn the knob to very left for speed like turtle while turn very right rabbit like speed. (Refer to photo 4). Photo 4 Always keep lower speed level during turning or backward for keeping safe.
  • Page 15 Telescopic Handle Pull up plastic clipper for ad justing to length of handle, push back the clipper at de sired length. (Refer to photo 7). Photo 7 Controller Located under rear cover which transfer the signal from control panel to motor, brake and hub. Keep controller under low moisture environment and make sure it is in dry condition before operation.

  • Page 16: Folding And Open

    9. FOLDING AND OPEN The scooter is designed with 2 ways of fold and open for customers choices de pending on preferences and circumstances. They are Automatic, Electric Switch and Manual for your choice, please go through the instruction of these 2 ways under here. Automatic Open and Fold Automatic Fold 1.
  • Page 17 Electric Switch Unfold and Fold Through switch operation for open and fold. The location of this switch is on back of scooter. Automatic Fold / Open 1. Turn the key to the right for power on. 2. Pull rod at back the back under seat base to fold up seat assembly. 3.

  • Page 18: Battery And Charging

    10. BATTERY AND CHARGING The scooter is design for maintenance free with long usage of Lithium Ion Battery. It is suitable to be Charged with 24V 2A charger. 1. Fully charge the battery is good for battery usage. At least charge once in every 3 month. 2.
  • Page 19 Charge battery directly The battery can be charged directly with house power source, simple connect the termial of battery with power source, charging can be started. (Refer to photo 12). Phonto 12 1. Keep charging time of single battery in 3 hours when it comes to off board charging to avoid over charging.
  • Page 20 Some knowledge on how charger charge battery Large input of current from charge to battery at low voltage level, small current given from charger when battery is close to full. Almost zero or little current given to battery, continuously charging would not cause over charge, however, it is suggested charge duration not over 8 hours.

  • Page 21: Battery Safety And Life Guide

    11. BATTERY SAFETY AND LIFE GUIDE The reason of weak on new battery The scooter use deep-cycle battery under special chemical technology that allow battery quick to be charged with longer time use after full charge. Battery along with scooter packing is charged full, however, the performance of initial power will be reduced in the process of transportation, such as temperature variation.

  • Page 22: Instruction Of Operation

    12. INSTRUCTION OF OPERATION Before operating instruction A. Make sure battery is fully charged. B. Familiar with the route condition including crowd, animal and potential obstacles. C. Always keep away from uneven and sloppy terrain. D. Check if is fully inserted and the brake lever switch is pushed. E.

  • Page 23: Warranty

    13. WARRANTY 1. This warranty is valid from the date of exfactory and valid for the replacement of disfunctional parts only. Any parts under warranty will be replaced and shipped to your door. Any service and labor fees, if applicable, to replace parts under warranty must be paid by the user. 2.

  • Page 24: Trouble Shooting And Maintenance

    14. TROUBLE SHOOTING AND MAINTENANCE The controller contains programs for identifying problem points and troubleshooting. When the diagnostics detects problems and errors, the ECU on the LCD will illumi nate. The fault display shows that the ECU shines continuously in the form of a flash until the fault is eliminated. Example: The number of flashes is “1-9.
  • Page 25 Insufficient capacity of battery or dropped on performance The decline issue of battery capacity or performance mostly can be sorted out as follows: A. Inspect whether key is fully inserted and at ON position. B. Make sure battery is fully charged. C.
  • Page 26 The battery of electric scooter is an extremely important part, the battery life determines the service life of the scooter. Try to keep the battery saturated after each use, to develop such a habit, it is recommended to conduct a deep discharge every month! If you don't use a electric scooter for a long time, place it in a place to avoid bumps and pull out the battery to reduce discharge.
  • Page 27 Electric scooter should avoid scratch ing seat leather and PU handrails and plastic ornaments with sharp objects, thus affecting the beauty of the whole vehicle (refer to photo 17). Phonto 17 Electric scooter should be placed in a place where the sun can not shine, please avoid sunlight, otherwise it is not only harmful to the battery, but also has a direct impact on the service life of plastic parts and stickers of...
  • Page 28 Maintenance frenquecy 1. Daily check Turn off the controller, check the lever, make sure the lever is not bent and broken, and be sure to retiun to it when you release it. Check the nibber base of the lever for damage. Just check the base and do not repair it.

  • Page 29: Electromagnetic Interference & Compatibility

    4.The guide and the manufacturer's statement are detailed in the annex. 1. FDB07 electric scooter should not be used close to or stacked with other equip ment. If it must be used close to or stacked, it should be observed and verified that it can operate normally under the configuration used.
  • Page 30 Guidelines and manufacturer's statement-Electromagnetic Emission FDB07 electric scooter is expected to be used in the electromagnetic environment specified below, and the buyer or user of the electric scooter vehicle shall ensure that it is used in this electromagnetic environment： Launch test...
  • Page 31 Guidelines and manufacturer's statement-Electromagnetic Immunity FDB07 electric scooter is expected to be used in the electromagnetic environment specified below, and the buyer or user of the electric scooter shall ensure that it is used in this electromagnetic environment. Electromagnetic Anti-interfernce...
  • Page 32 FDB07 electric scooter is expected to be used in the following specified electromag netic environment, and the purchasers or users of NPL001、 NPL002、 NPL003 elec tric scooters shall ensure that it is used in this electromagnetic environment： Anti-interfernce IEC60601 Coincidence...
  • Page 33 Recommended separation distance between portable and mobile RF communica tion equipment and electric scooter. FDB07 electric scooter is expected to be used in an electromagnetic environment where radiated RF disturbances are controlled. According to the maximum output power of communication equipment, the buyer or user of electric scooter can pre vent electromagnetic interference by maintaining the minimum distance between portable and mobile RF communication equipment (transmitter) and electric scooter.

  • Page 34: Warranty Statement

    16. WARRANTY STATEMENT Warranty Registration Card User Name ID No. Address Phone No. Model FDB07 Product No. Purchasing Date (Month) (Day) (Year) Manufacturer Distributor (Stamp or signature) Distributor (Phone, Address) Manufacturer is responsible for any issue on material, manufacturing defect or design effect of the scooter while dealer will take care for maintenance and service.
  • Page 35 Your Home Rehabilitation Partner CERTIFICATE Product name: Electric Scooter Itme Model： FDB07 SN: D912309209001 Date of manufacture: Inspector： Product inspection： MATESIDE GLOBAL US INC. Instagram Facebook Youtube...
