MODEL #
FM7231-C
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PT)
1 / 7
Screwdriver
(Not Included)
(Included)
Allen Wrench
2 - People
EASY
DIFFICULT
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
Advertisement
Related Manuals for Furniture of America FM7231-C
Summary of Contents for Furniture of America FM7231-C
- Page 1 MODEL # FM7231-C Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PT) Screwdriver (Not Included) (Included) Allen Wrench 2 - People EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 2 / 7...
- Page 3 3 / 7...
- Page 4 4 / 7...

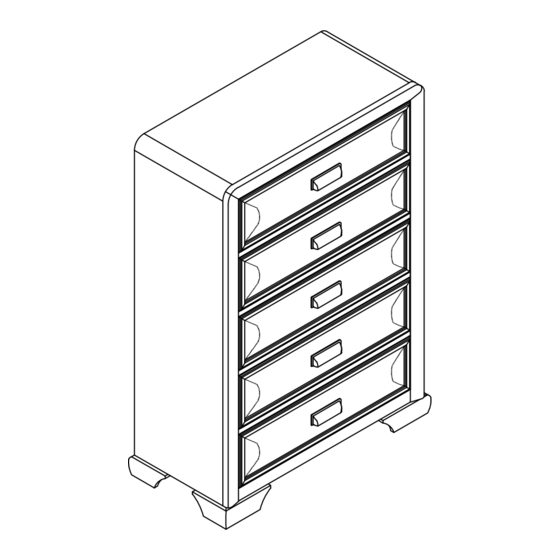

- Page 5 CHEST FM7231-C PARTS Chest 1pc. HARDWARE Strap Pan Head Screw 50mm Pan Head Screw 16mm 1pc. 1pc. 1pc. L Bracket 2pcs. 5 / 7...
- Page 6 ASSEMBLY INSTRUCTIONS Part 1 x 1pc Hardware A x 1pc Hardware D x 1pc Attach L Bracket (D) to back of Chest (1) and secure with Pan Head Screw (A) using Philips Screwdriver. Hardware B x 1pc Attach L Bracket (D) to the wall and secure Hardware D x 1pc with Pan Head Screw (B) using Philips...
- Page 7 ASSEMBLY INSTRUCTIONS Place the Chest into position so both mounting brackets are vertically in line. Insert Hardware Strap (C) through the L Bracket (D) at back of C x 1pc the Chest (1) and Wall. Secure the strap laced and locked. Wall ASSEMBLY COMPLETED...
