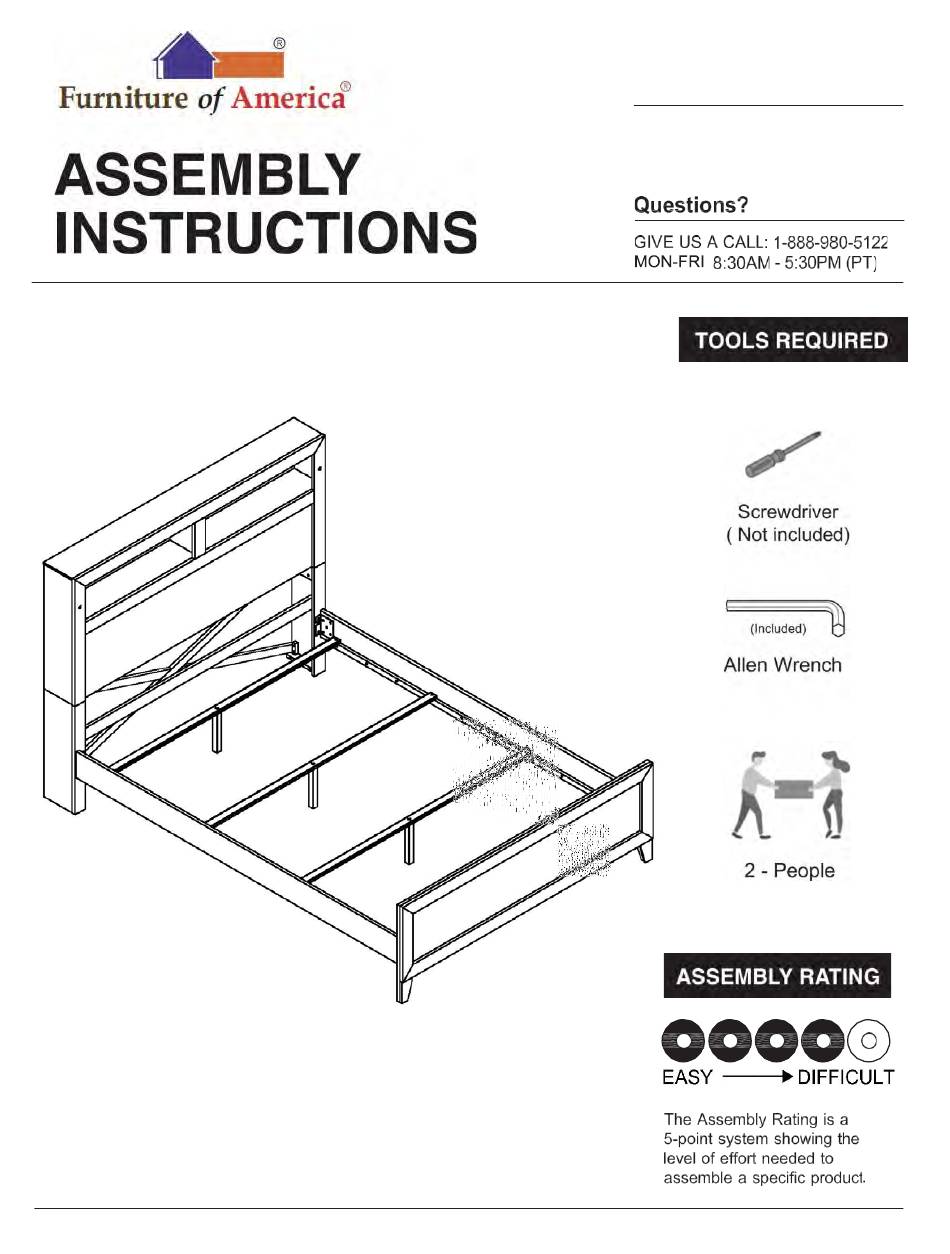

- Page 1 MODEL FM7202-F...
- Page 5 FULL BED PARTS HARDWARE...
- Page 6 FM7202-F is packed in 3 cartons...
- Page 7 ASSEMBLY INSTRUCTIONS Use Allen Key (#D) to attach HB-Leg Right (#2) / Left (#3) to Headboard (#1) by using Bolt (#A) with lock washer (#B) and flat washer (#C). Using Panhead Screw (#F) to attach Stretcher – X (#5) to Headboard (#1), tighten with Screw Driver.
- Page 8 ASSEMBLY INSTRUCTIONS Use Allen Key (#I) to attach the Side rail (#7) to Headboard (#1) and Footboard (#6) by using Bolt (#G) with flat washer (#H). Attached Adapter (#E) to Headboard (#1). Attached Vertical Leg (#9) to Slat (#8) then spread slat evenly onto Side Rail (#7) and secure by using Panhead Screw (#J).
