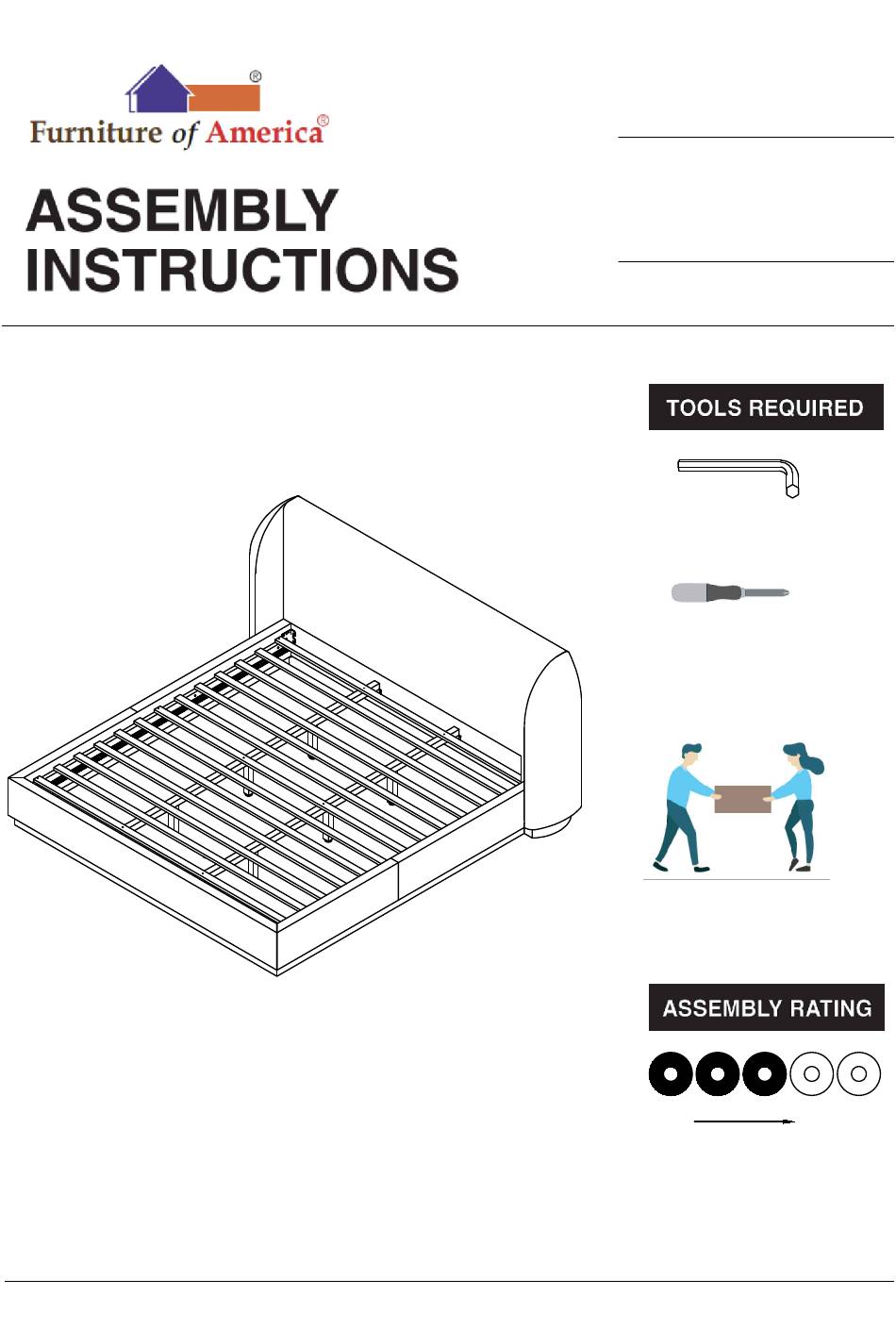

VERSION # 19-11-24
1 / 13
MODEL #
FM72004-K
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Screwdriver
(Not Included)
2 - Persons
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America FM72004-K
Summary of Contents for Furniture of America FM72004-K
- Page 1 MODEL # FM72004-K Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Screwdriver (Not Included) 2 - Persons Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 2 / 12...
- Page 3 3 / 12...
- Page 4 4 / 13...
- Page 5 KING BED FM72004-K Headboard Wing Footboard Headboard Headboard Leg Side Rail Center Rail Slat Support Leg 5 / 13...
- Page 6 Jcbc Bolt M6 x 40mm M6 Flat Washer Wood Dowel M8 x 30mm Wood Screw M4 x 20mm Wood Screw M4 x 32mm Jcbc Bolt M6 x 60mm M4 Allen Wrench M5 Allen Wrench PROTECTIVE DISC M6 Spring Washer 6 / 13...
- Page 7 FM72004-K POINT 3 CARTONS Designation Carton Part Hardware Headboard (1pc) FM72004-K-HB Headboard Wing (2pcs) Headboard Leg (2pcs) Footboard (1pc) Side Rail (2pcs) FM72004-K-FBR Center Rail (2pcs) Support Leg (6pcs) Slat (1Set) FM72004-K-SL 7 / 13...
- Page 8 ASSEMBLY INSTRUCTIONS Take out headboard wing (#2) & headboard leg (#5) from the headboard back (#1). Part Part Part Attach wood dowel (#C) to the headboard wing (#2) and side rail (#4) as shown in the diagram. Part Part Hardware 8 / 13...
- Page 9 ASSEMBLY INSTRUCTIONS I. Attach the headboard leg (#5) to the headboard wing (#2), secure by using bolt assembly of bolt (#E). II. Attach the Protective Disc (#I) to the headboard leg (#5). Part Part Hardware Hardware Hardware Attach the headboard wing (#2) to the headboard (#1), secure by using bolt (#A).with spring washer (#J) and flat washer (#B).
- Page 10 ASSEMBLY INSTRUCTIONS Attach the Protective Disc (#I) to the footboard (#3) and side rail (#4). Part Part Hardware I. Loosen the pre-inserted bolt on the headboard (#1) using allen wrench (#H). II. Align the side rail (#4) to the headboard (#1). Secure using allen wrench (#H). Part Part Hardware...
- Page 11 ASSEMBLY INSTRUCTIONS I.Take out the bolt first and using allen wrench (#H). II. Align the side rail (#4) to the footboard (#3). III. Secure back the bolt to footboard (#3) using allen wrench (#H). Part Part Hardware Attach the support leg (#7) to the center rail (#6). Part Part 11 / 13...
- Page 12 ASSEMBLY INSTRUCTIONS Hook the center rail (#6) into the insert on the Headboard (#1) and the footboard (#3). Part Part Part Hardware Spread slat set (#8) evenly over the rails (#4) and center rail (#6). Secure onto the side rails (#4) using Screw (#F). Part Hardware 12 / 13...
- Page 13 ASSEMBLY INSTRUCTIONS ASSEMBLY COMPLETED Please ensure the furniture rests on an even and flat surface. If the product wobbles or feels loose, double-check all bolts and/or screws are properly tightened and secured. Keep this handy! Please retain this instruction manual and any order-related information for future reference.
