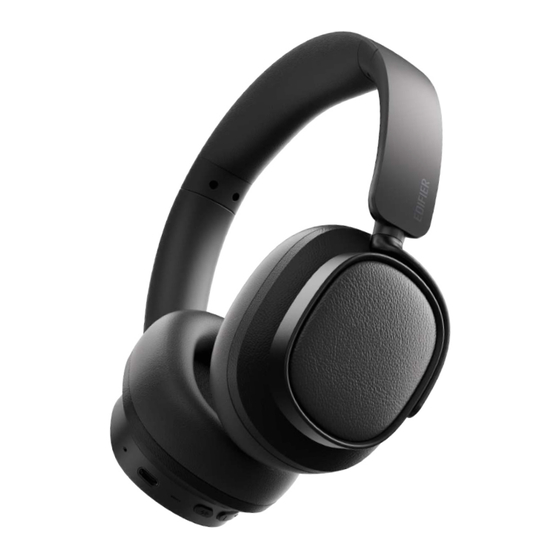

Wireless Noise Cancelling Over-Ear Headphones
EN 1. Power ON/OFF
Press and hold the power button to power on/off.
2. First pairing
1. Once powered on, the headphones will automatically enter
Bluetooth pairing mode.
2. Select "EDIFIER ES850NB" from your device list to connect.
3. Pairing for new device
1. In ON state, press and hold the "
enter Bluetooth pairing mode.
2. Select "EDIFIER ES850NB" from your device list to connect.
Note: For subsequent use, the headphones will automatically connect to the device used last time.
4. Controls
●
Call
Music
●
Mode
●
Note:
1. Default sound control: High Noise Cancellation / Ambient Sound / Noise Cancellation Off.
2. "x 1" Press , "x 2" Double press, "—" Press and hold.
3. Download EDIFIER ConneX App to customize more control settings.
5. Multipoint connection
①
②
③
Bluetooth
EDIFIER ES850NB
1. Pair device A with the headphones successfully.
2. Press and hold the "
pairing mode, and then select "EDIFIER ES850NB" in device B settings
to connect.
3. Select "EDIFIER ES850NB" again in device A settings to complete the
multipoint connection.
Note: For subsequent use, the headphones will automatically reconnect to the two devices used
last time.
6. Touch-To-Chat
Touch and hold the right earcup to pause audio and allow you to hear
ambient sound, release to resume audio.
7. Wired listening
Connect to the headphones via the USB-C cable. Wired listening will
automatically disable Bluetooth mode.
8. Reset
1. In ON state, press "+" and ''-'' buttons for 5 seconds, blue LED will
blink until the reset is complete.
2. Then the headphones will automatically enter Bluetooth pairing mode.
9. Charging
Connect the headphones to a power source via the USB-C cable for
charging.
Note: Make sure the USB-C port is completely dry before charging.
ES850NB
Model: EDF280044
Manual
x1
x1
x2
x1
x1
x2
x1
x1
x2
A
" button for 3 seconds to re-enter Bluetooth
ON
-
OFF
-
Bluetooth
EDIFIER ES850NB
Bluetooth
EDIFIER ES850NB
" button for about 3 seconds to
Bluetooth
EDIFIER ES850NB
5s
1s
1s
A
B
x6
Input: 5V
1A
