DC terminals: OUT DC+ DC-; IN DC- DC+
-
Sense: reserved terminals, no connection required
-
IO: When leaving the factory, the pin IN is shorted to GND by default, and
-
the instrument can work normally; if the short-circuit piece is removed, the
instrument will not work. When the instrument is running, there is a low
level of 0V between OUT and GND, and a high level of 5V in the non-RUN
state.

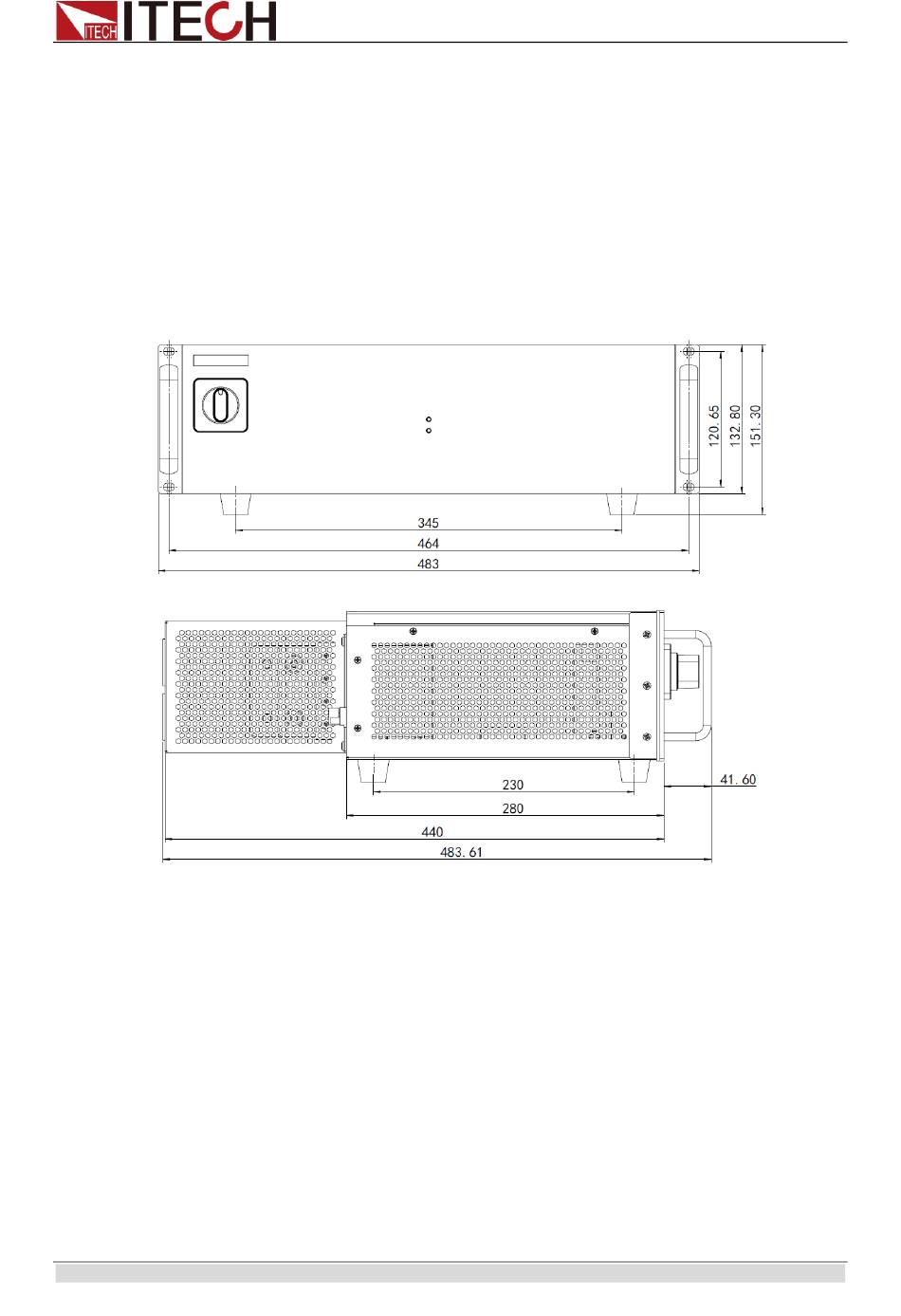

The dimensions of IT-E165A-750 and IT-E165A-1000 are as shown in the figure below.

Unit: mm
