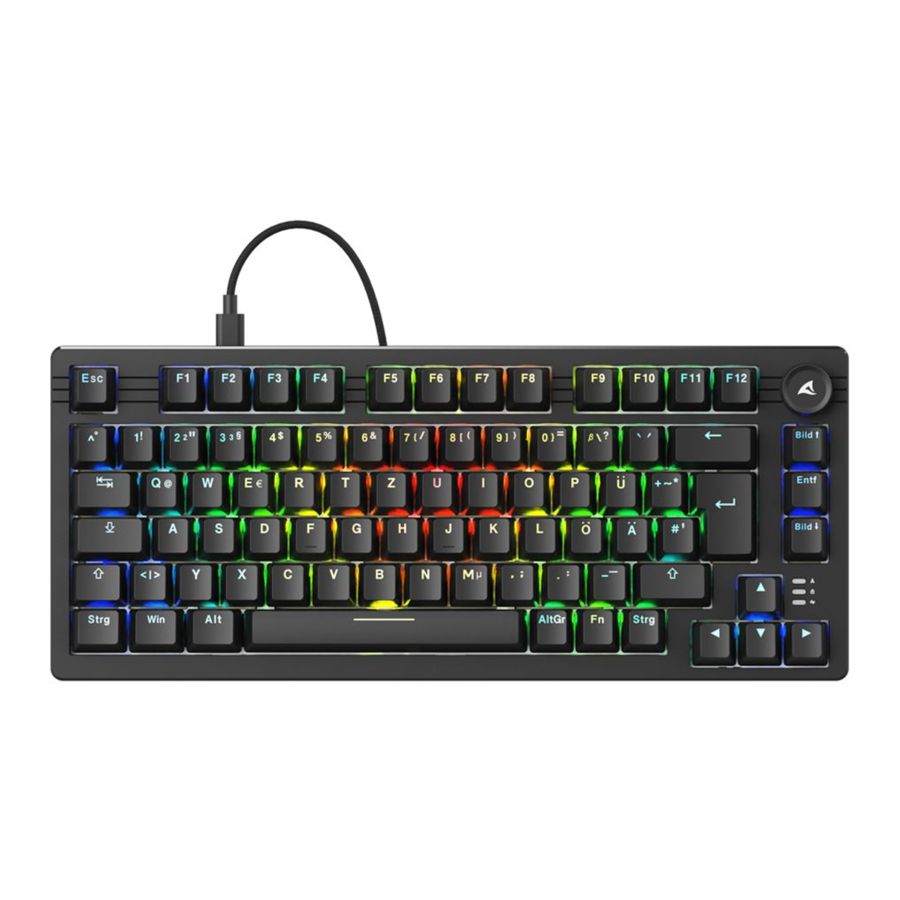

Sharkoon SKILLER, SGK25 Manual

Multimedia Keys

Lighting Effects

Lighting Profiles

Setting up Personalized Lighting Profiles:
To access any one of the three lighting profiles, press and hold down the function key and select a lighting profile F7–F9. To customize any of these lighting profiles, press and hold down the function key and then the caret (^) key. The F7–F9 keys begin to flash. Select and press one of these keys for the lighting profile you wish to customize. The three LEDs on the right of the keyboard begin to flash to indicate that the lighting profile can now be set up. Now choose and press any desired keyboard key to activate its illumination. Press a key repeatedly for the desired color or to deactivate its illumination again. When you have finished choosing the profile illumination, press and hold down the function key and then press the carat (^) key again. The LEDs will stop flashing and the selected illumination has now been saved for the lighting profile.

Additional Functions

Record Macros

To set macros, first press and hold down the function key and then press the Tab key. Once you have done this, the two macro keys - Ö and Ä - will start flashing. Press one of these two macro keys to select it for macro recording. The macro key you have selected flashes, while the macro key that has not been selected stops flashing. Now press and hold down the function key and then press the Caps Lock key. You can now start entering your macro actions. You can enter up to 30 individual actions. When you have reached the maximum number of actions, the recording will automatically end. However, if you would like to end the recording before all 30 available macro actions have been entered, first press and hold down the function key and then press the Tab key again to end the recording.

Remove Keycaps

Before removing a switch, first remove the keycap. To do this, place the arms of the keycap puller tool either to the left and right or to the top and bottom of the keycap, and then pull the keycap upwards with careful but constant pressure. Whenever possible, avoid pulling the keycaps from the switch directly with your fingers, as this may damage the switch.

Remove Switches

Once you have removed the keycap from the switch, position the switch puller tool correctly on the tabs of the switch. These are positioned to the front and the back of the switch. Before pulling out the switch, make sure that both tabs are securely pressed with the switch puller tool and that the switch can be removed from the socket without resistance. If necessary, remove the adjacent keycaps to allow the switch puller tool sufficient freedom of movement. Press both tabs of the switch with the switch puller tool and then slowly pull the switch out of the socket. Be sure to always pull vertically from the socket with a straight, upward direction. Avoid pulling in a slanted direction, as this can result in damage.

To install the switches, position the switch so that one tab is at the front and the other tab is at the back. Each pin on the underside of the switch should be pointing exactly to its relevant contact in the keyboard socket. Make sure that the switch is led vertically into the socket opening (at a 90-degree angle to the socket). Installing the switch incorrectly can lead to damage or malfunction of the switch. After you have placed the switch in its socket, push very gently on the switch to secure it in place. Make sure that you do not use too much force, as this can damage or destroy fragile components.

Safety Instructions

This device is intended as a keyboard for use with a PC. For your own safety, be sure to read the instructions below before using the device. If the product is damaged due to improper use or non-compliance with the safety instructions, the manufacturer's guarantee will be void.

• Ensure that the device is not damaged before use.
• Only use the device indoors in areas with normal humidity.
• Ensure that the device does not come into contact with moisture or liquids.
• Only clean the device with a dry cloth.
• Connect this device only with compatible, intended cables and only to other compatible, intended devices.
• The device does not contain any components that require maintenance.
  Opening the keyboard housing will result in the loss of the guarantee.

Specifications

General:
Type:	Wired Keyboard
Switch Technology:	Hot-Swap (Hunao RED, Lubed)
Number of Keys:	81 ISO
Keycap Material:	ABS
Keycap Legend:	Double Shot
Illumination:	RGB
Adjustable Illumination:
Lighting Effect:
Max. Polling Rate:	1,000 Hz
Form Factor:	75% Layout
Capacity of Onboard Memory:	64 kB
Detachable Cable:
Weight incl. Cable:	713 g
Weight without Cable:	668 g
Dimensions (L x W x H):	331 x 139 x 40 mm
Supported Operating Systems:	Windows
Key Properties:
Multimedia Keys
N-Key Rollover Support:
Arrow Keys Functions are Interchangeable with the WASD Section:
Operating Force:	45 ± 10 g
Switch Properties:	Linear
Distance to Actuation Point:	2.0 ± 0.3 mm
Operating Life Cycles of Keys:	Min. 50 Million Keystrokes
Cable and Connectors:
Connector:	USB-C to USB-A
Textile-Braided Cable:
Cable Length:	180 cm
Gold-Plated USB Plug:
Package Contents:
SKILLER SGK25, Keycap Puller Tool, Switch Puller Tool, USB Cable (180 cm)
