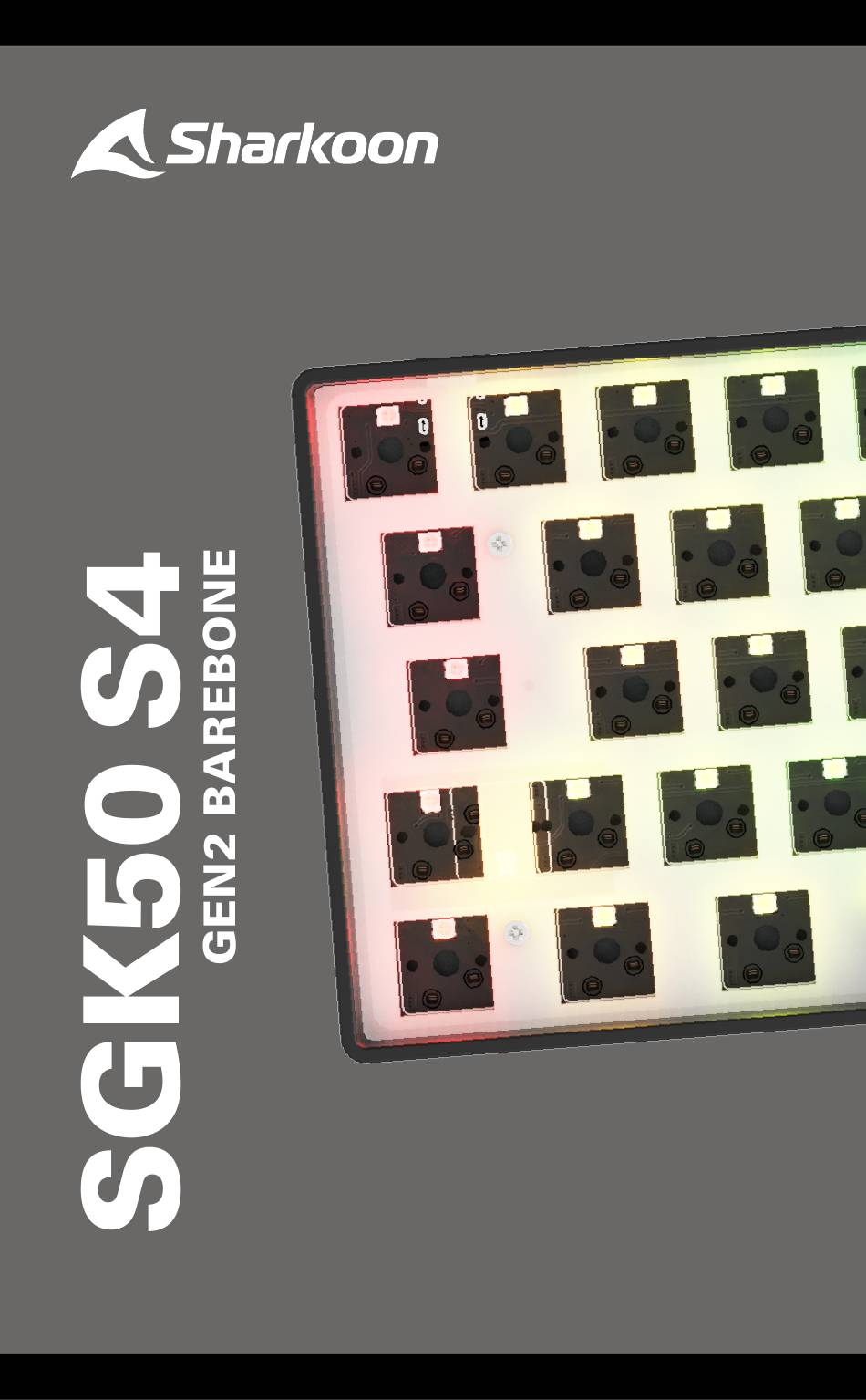

- Page 1 SKILLER Manual...
-
Page 2: Specifications
USB Type-C „ Textile-Braided Cable ü „ Coiled Cable ü „ 150 cm Cable Length „ Gold-Plated USB Plug ü „ Package Contents SKILLER SGK50 S4 Gen2 Barebone, Extra Keycaps, Keycap Puller Tool, „ Switch Puller Tool, USB Cable (150 cm) -
Page 3: Safety Instructions
Safety Instructions This device is intended as a keyboard for use with a PC. For your own safety, be sure to read the instructions below before using the device. If the product is damaged due to improper use or non-compliance with the safety instructions, the manufacturer’s guarantee will be void. - Page 4 Install Switches To install the switches, position the switch so that one tab is at the front and the other tab is at the back. Each pin on the underside of the switch should be pointing exactly to its relevant contact in the keyboard socket. Make sure that the switch is led vertically into the socket opening (at a 90-degree angle to the socket).
- Page 5 Remove Switches Position the switch puller tool correctly on the tabs of the switch. These are positioned to the front and the back of the switch. Before pulling out the switch, make sure that both tabs are securely pressed with the switch puller tool and that the switch can be removed from the socket without resistance.
- Page 6 Install Keycaps To install a keycap, first place it over the installed switch. Make sure that the keycap’s symbol or character is positioned the right way round. Now carefully press the keycap onto the switch until the keycap locks into place. Do not use excessive force, as this can damage the keycap and the switch! After the correct installation, the switch and keycap should behave as when used for normal typing.
- Page 7 Remove Keycaps To remove a keycap, place the arms of the keycap puller tool either to the left and right or to the top and bottom of the keycap, and then pull the keycap upwards with careful but constant pressure. Whenever possible, avoid pulling the keycaps from the switch directly with your fingers, as this may damage the switch.
- Page 8 VIA/QMK If VIA configuration is not possible through the website at https://usevia.app/, please then use the alternative website at https://via.evove.top/.
-
Page 9: Multimedia Keys
Multimedia Keys ´ ` " § & ß ? T ab Ü € Ö Ä < > µ Strg Alt Gr Strg ° ´ ` F1 - F12 Delete Scroll Lock Ö Insert Page Down Ä Pause Page Up Mute µ... -
Page 10: Lighting Effects
Lighting Effects ´ ` " § & ß ? T ab Ü € Ö Ä < > µ Strg Alt Gr Strg Brightness + Brightness – Change Color of Lighting Effect Strg Change Lighting Effect... -
Page 11: Macro Keys
Macro Keys ´ ` " § & ß ? T ab Ü € Ö Ä < > µ Strg Alt Gr Strg Macro Keys Set up T ab Macros Record Macros To record macros, first press and hold down the function key and then press the Tab key. -
Page 12: Additional Functions
Additional Functions ´ ` " § & ß ? T ab Ü € Ö Ä < > µ Strg Alt Gr Strg Up Arrow Left Arrow Down Arrow Right Arrow Windows Key Locked... - Page 13 Choose ISO or ANSI Positioning Plate...
- Page 14 All named products and descriptions are trademarks and/or registered trademarks of the respective manufacturers and are accepted as protected. As a continuing policy of product improvement at Sharkoon, the design and specifications are subject to change without prior notice. National product specifications may vary.
- Page 15 Follow us on social media! Facebook Instagram YouTube TikTok Sharkoon Technologies GmbH Grüninger Weg 48 35415 Pohlheim Germany © Sharkoon Technologies 2025...
