ESP Switchboard Configuration via ESP Controller
4.1

SWITCHBOARD I/O

The switchboard I/O menu can be accessed with the navigation sequence Switchboard  Slot A/B  IO.
There are some minor differences between the I/O Card and Power Analyzer Card with respect to the
available I/O. The Power Analyzer Card has 4 Digital Inputs, 3 Digital Outputs, 1 Analog Input and 1 Analog
Output compared to the I/O Card's 6 Digital Inputs, 3 Digital Outputs, 4 Analog Inputs and 2 Analog Outputs.
Configuration of the Power Analyzer Card I/O is like the configuration of the standard I/O expansion card.
The first Power Analyzer Card relay output is for Contactor, and its status is displayed on the I/O screen.
Control of the contactor is provided by the Start and Stop buttons on the Controller keypad. The normal
pump start HOA pop-up will appear when you press Start.
HOA operation can also be configured externally. Refer to the Digital Input HOA instructions in the
Installation section of INSTRUCT ESP Intelligent Controller Manual (InTouch ID 6128576)
examples. Refer to the Digital Input HOA instructions in the Configuration section of
Intelligent Controller Manual (InTouch ID 6128576)
For the other digital outputs (relays), analog and digital inputs, the configuration is the same as the controller
I/O card. Refer to the Digital I/O and Analog I/O instructions in the Configuration section of
Intelligent Controller Manual (InTouch ID 6128576)
for configure examples.
for details.

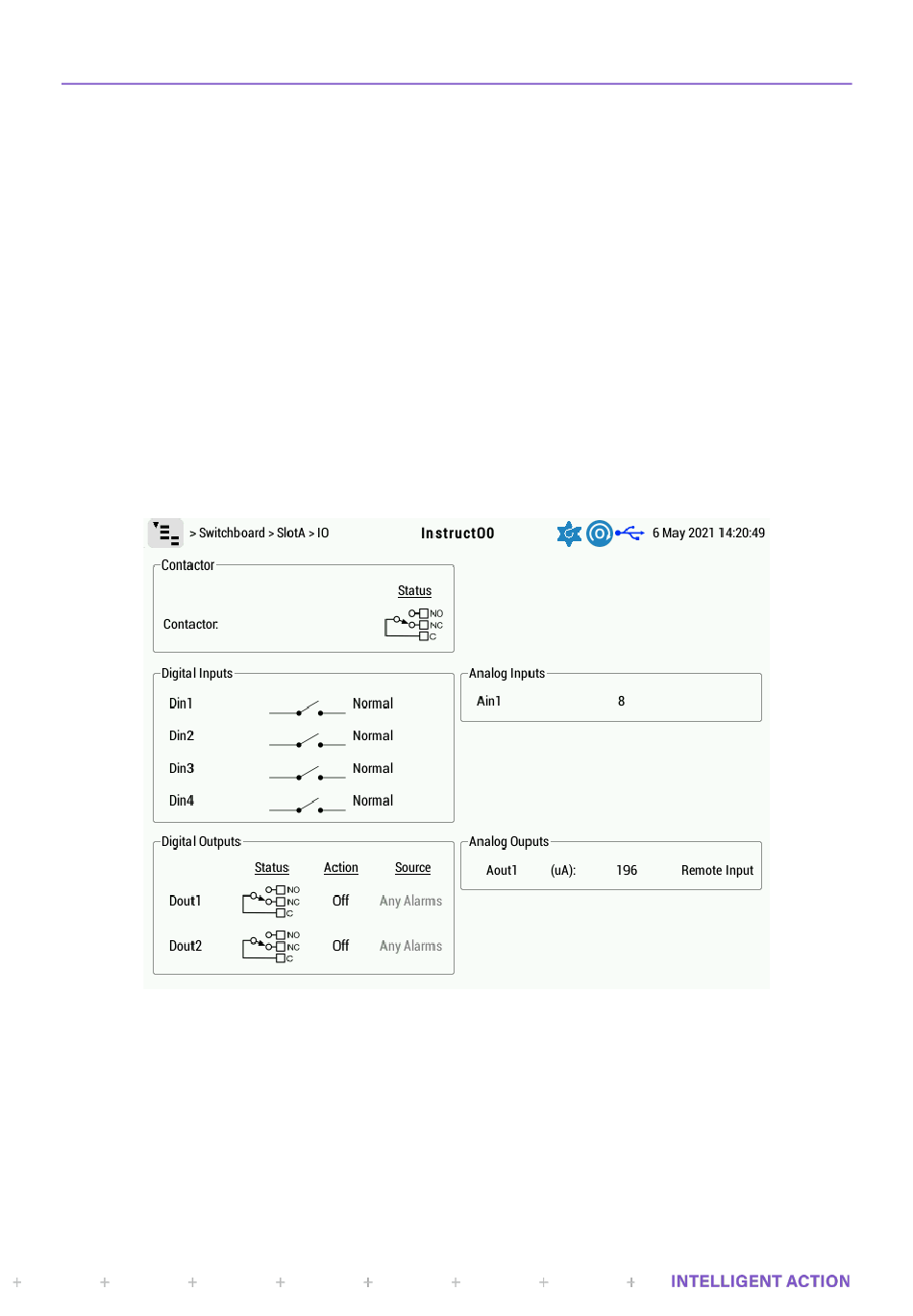

Figure 4.3: Switchboard I/O Screen
