ESP Switchboard Configuration via ESP Controller

Section 4: Switchboard Setup

The Controller will be configured to Switchboard if a Power Analyzer Card is installed and none of the
Controller ports and slot's function is configured to VSD. The Controller will then add the Switchboard menu
to the top-level menu structure.
The Controller begins to support dual Power Analyzer Card from firmware version
v2.122r005. Two Power Analyzer Cards can be installed to Controller, at slot A and slot
NOTE
B, respectively. The Controller can then be configured for two different switchboards
setup.

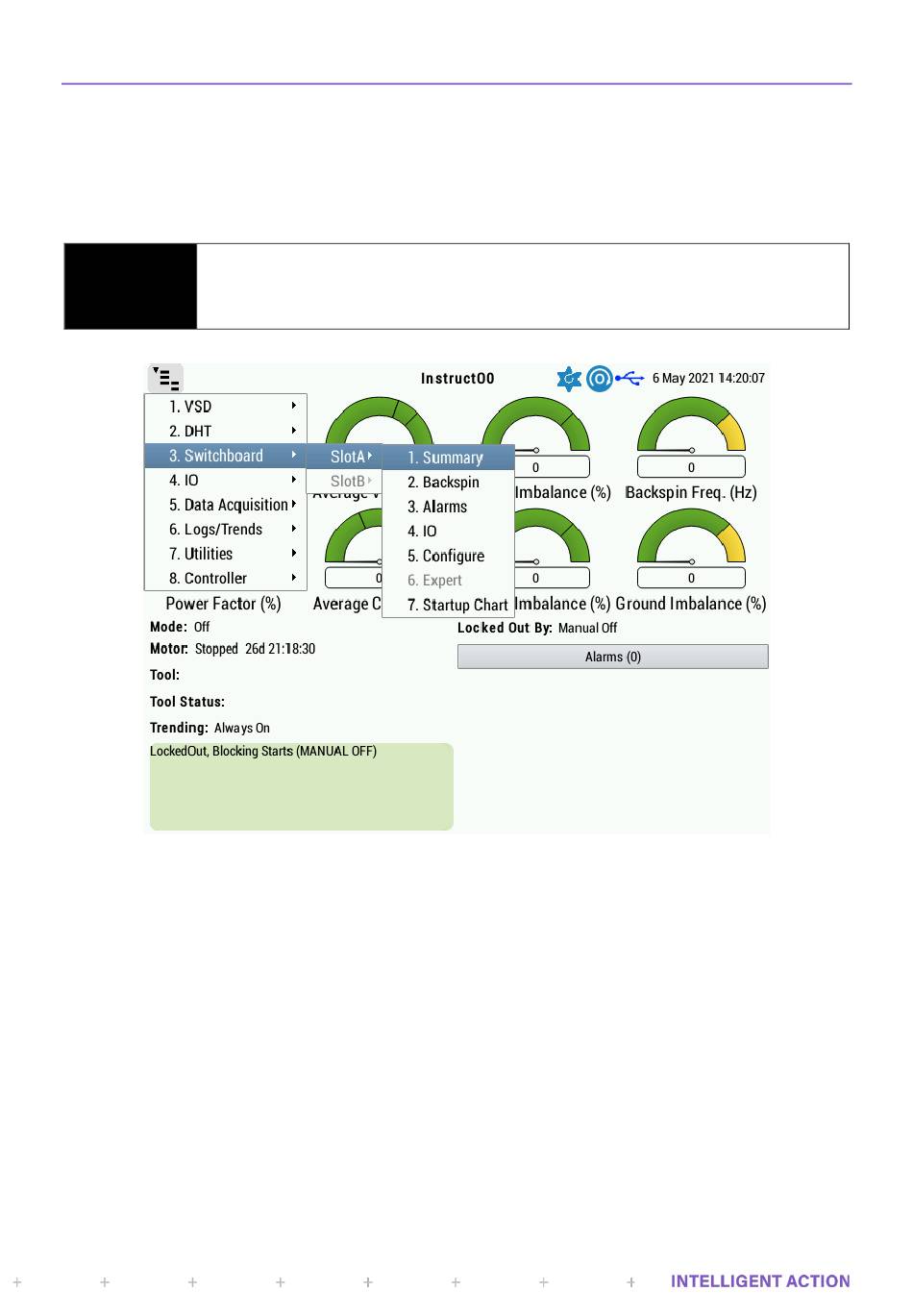

Figure 4.1: Switchboard Menu Tree
Section 4: Switchboard Setup
16
