Flyron Technology Co., Ltd.
1. Overviews
1.1. Features
Two trigger versions (negative trigger and positive trigger) optional.
Built-in a high quality MP3 player with 8MB flash memory.
Supports inserting USB flash drive and micro SD card as the extended storage devices.
Supports max. 32GB USB flash drive and max. 32GB micro SD card.
10 trigger inputs available and they can be connected to as many as 10 buttons/switches/relays.
Also possible to be controlled with a PLC or an industrial controller.
www.flyrontech.com

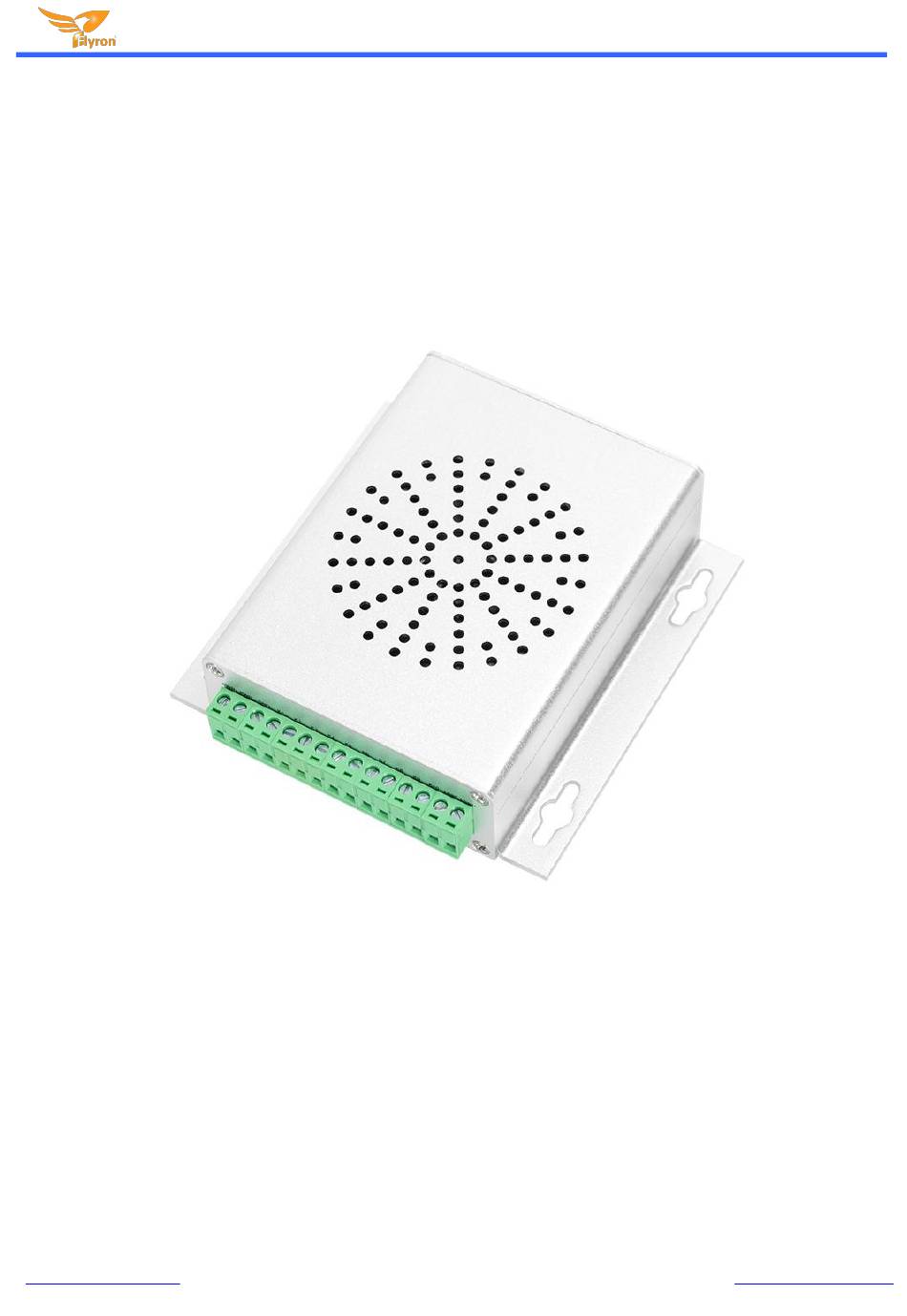

FN-AP10T Triggerable MP3 Audio Player
User's Manual
FN-AP10T Triggerable MP3 Audio Player
Version: V1.0
1
E-mail: info@flyrontech.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Flyron Technology FN-AP10T
Summary of Contents for Flyron Technology FN-AP10T
- Page 1 Flyron Technology Co., Ltd. FN-AP10T Triggerable MP3 Audio Player FN-AP10T Triggerable MP3 Audio Player User’s Manual Version: V1.0 1. Overviews 1.1. Features Two trigger versions (negative trigger and positive trigger) optional. Built-in a high quality MP3 player with 8MB flash memory.
-
Page 2: Technical Parameters
Flyron Technology Co., Ltd. FN-AP10T Triggerable MP3 Audio Player Supports 10 types of trigger modes and each trigger mode can be set easily through a text document. Built-in a class D 10 Watts amplifier and the sound is loud and clear. - Page 3 Flyron Technology Co., Ltd. FN-AP10T Triggerable MP3 Audio Player www.flyrontech.com E-mail: info@flyrontech.com...
- Page 4 Flyron Technology Co., Ltd. FN-AP10T Triggerable MP3 Audio Player 2. Examples of Wiring Connection 2.1. Negative Trigger Version 2.2. Positive Trigger Version Note: The negative trigger version also can be activated with a low level signal (0V) while the positive trigger version can be activated from a high level signal (12-40V) from a PLC or controller.
- Page 5 Flyron Technology Co., Ltd. FN-AP10T Triggerable MP3 Audio Player 3. Operation Guide 3.1. Select a Trigger Mode There are 10 trigger modes available for users to choose according to the actual needs. Any of these 10 trigger modes can be set/acquired through a config file, which is a text file(.txt). Users just need to fill in a number that is corresponding to a trigger mode in a new built text file.
- Page 6 Flyron Technology Co., Ltd. FN-AP10T Triggerable MP3 Audio Player Each button from K1 to K10 have their associated folders from “01” to “10” respectively. Play multiple audio files at Each folder can store multiple files (for example from “001.mp3” to “030.mp3”). Short random per button (interruptible) press the button to play an audio file at random.
- Page 7 Flyron Technology Co., Ltd. FN-AP10T Triggerable MP3 Audio Player 3.2.2. Create a config file with volume setting There are thirty-one volume levels from “00” to “30. “00” means mute while “30” means the max. volume level. 1). Firstly create a new text file on computer (desktop or somewhere else).
- Page 8 Flyron Technology Co., Ltd. FN-AP10T Triggerable MP3 Audio Player Notes: When you use the trigger mode “0”, you can definitely place more than 10 audio files. 3.3.2. For Trigger Mode 5-8 At first, users need to create ten folders on the storage device (built-in flash memory or micro SD card), and name them 01, 02, 03, till 10, then put the config file together with the folders on the root directory.
- Page 9 Flyron Technology Co., Ltd. FN-AP10T Triggerable MP3 Audio Player After that, copy your audio files to each associated folder, and rename them 001.mp3, 002.mp3, and so on. In these four modes, the module recognizes the audio files by physical index order, so when you copy audio files to each folder, please note the copy order.
- Page 10 Flyron Technology Co., Ltd. FN-AP10T Triggerable MP3 Audio Player Audio files in the folder 00 shown as below. It’s okay to have only one audio file or multiple audio files in this folder. www.flyrontech.com E-mail: info@flyrontech.com...
