Flyron Technology Co., Ltd.
Button or Sensor Triggered Audio Player
Button or Sensor Triggered Audio Player
with 25W*2 Stereo Amplifier
User's Manual
Model: FN-TG01S
Version: V1.0
1. Overviews
1.1. Brief Introduction

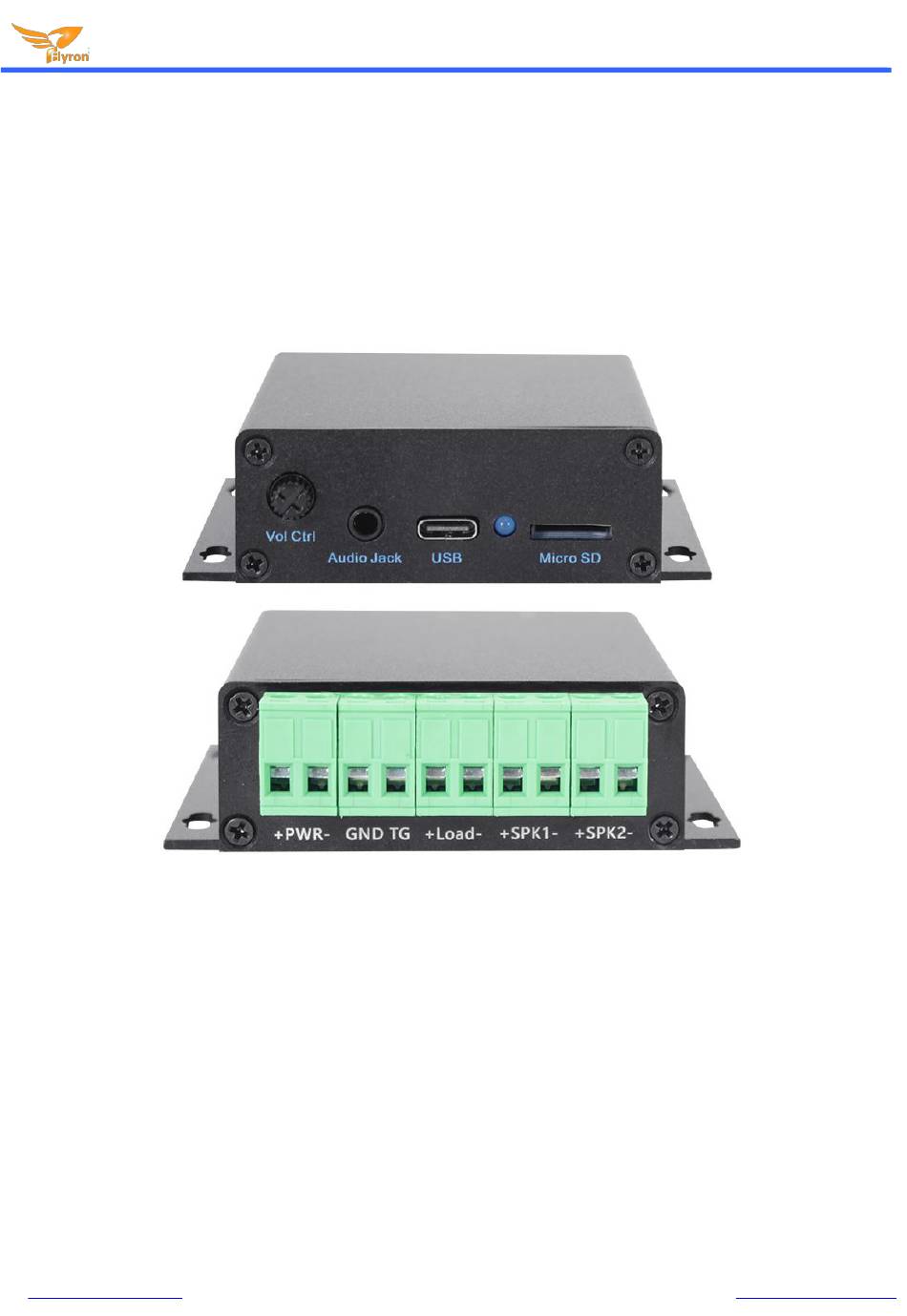

FN-TG01S is a high quality button or sensor triggered audio player launched by Flyron Technology Co., Ltd. It's very flexible to use a
button/relay/PIR sensor/photoelectric sensor/proximity sensor(metal sensor), etc. to activate the sound. Also it provides many different
types of trigger modes (functions) to meet different requirements. With the distinctive features of flexible to work with a button or sensor,
multiple trigger modes available (multifunctional), and simple wiring and easy to use, it's possible to have it used in different kinds of
applications such as museums, stations, exhibition halls, animatronics, CCTV systems, industrial control systems, security equipment,
smart workshops, etc.
1.2. Features
.
1). Able to work with a button or normally open relay switch.
2). Able to work with a PIR sensor, photoelectric sensor, proximity sensor (metal sensor), etc.
www.flyrontech.com
E-mail: info@flyrontech.com
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Flyron Technology FN-TG01S
Summary of Contents for Flyron Technology FN-TG01S
- Page 1 1.1. Brief Introduction FN-TG01S is a high quality button or sensor triggered audio player launched by Flyron Technology Co., Ltd. It’s very flexible to use a button/relay/PIR sensor/photoelectric sensor/proximity sensor(metal sensor), etc. to activate the sound. Also it provides many different types of trigger modes (functions) to meet different requirements.
-
Page 2: Technical Parameters
Flyron Technology Co., Ltd. Button or Sensor Triggered Audio Player 3). Built-in high quality MP3 audio decoder. 4). Built-in 16MBytes flash memory and supports max. 32GB micro SD card. 5). Equipped with a type-C USB connector, and load audio files to the internal flash memory/micro SD card directly via USB connection to computer. - Page 3 Flyron Technology Co., Ltd. Button or Sensor Triggered Audio Player 12-24V DC input Warning Light/LED Light 2.2. Working with a PIR Sensor 12-24V DC input Warning Light/LED Light PIR Sensor www.flyrontech.com E-mail: info@flyrontech.com...
- Page 4 Flyron Technology Co., Ltd. Button or Sensor Triggered Audio Player Note: The PIR sensor needed is the one that is able to output low-level signal (0V) to trigger the player and it can run on 12-24V DC. If you want to use a PIR sensor that outputs high-level signal (3.3V or higher) to trigger the player, we’re open to customize another version of the player for you.
- Page 5 Flyron Technology Co., Ltd. Button or Sensor Triggered Audio Player Number in Corresponding Trigger Mode Explanatory Note Config File In this mode, if there is only one audio file, it’ll always play the same audio file after each activation. If there are multiple audio files, it’ll always play next audio file after each activation.
- Page 6 Flyron Technology Co., Ltd. Button or Sensor Triggered Audio Player Any of these 10 trigger modes can be set through a config file, which is a text file(.txt). Users just need to fill in a number that is corresponding to a trigger mode in a new built text file. Save it and rename the file “Config” or any name you like, then put it in the root directory of the internal flash memory or micro SD card together with the audio files or folders.
- Page 7 Flyron Technology Co., Ltd. Button or Sensor Triggered Audio Player Trigger mode Volume level 3). Save it and close it. 4). Rename the file “Config” or any other name you like. 3.3. Audio Files Loading/Updating Users can use a USB data cable to connect the player to computer. The built-in flash memory will be detected as a USB flash drive on computer.
- Page 8 Flyron Technology Co., Ltd. Button or Sensor Triggered Audio Player Example of multiple audio files loaded for mode 0 Example of setting mode number 1 in the config file 3.3.2. For Trigger Mode 5-8 Firstly, create a folder on the storage device (built-in flash memory or micro SD card), and rename it to 01, then put the config file with number 5/6/7/8 inside together with the folder on the root directory.
- Page 9 Flyron Technology Co., Ltd. Button or Sensor Triggered Audio Player Example of setting mode number 5 in the config file After that, copy your audio files to the folder 01, and rename them to 001, 002, 003, and so on. In these four modes, the module recognizes the audio files by physical index order, so when you copy audio files to each folder, please note the copy order.
- Page 10 Flyron Technology Co., Ltd. Button or Sensor Triggered Audio Player card). You need to rename it to 001. Afterwards, put the config file with number 9 inside in the root directory as well. See the screenshot as below. Example of setting mode number 9 in the config file The audio file in the folder 00 is shown as below.
- Page 11 Flyron Technology Co., Ltd. Button or Sensor Triggered Audio Player It’s also okay to place multiple audio files in the folder 00, then the player will automatically play them one by one continuously in a loop when power is applied. See the screenshot as below for multiple files in the folder 00.
