1. Features
Uses a 433MHz radio remote control, and the remote distance can be up to 150 meters in open area.
Built-in a high quality audio decoder IC.
Supports to play audio files in MP3 and WAV formats.
Built-in 8MB flash memory and equipped with a micro SD slot and USB connector.
Supports maximum 32GB micro SD card and 32GB USB flash drive.
Built-in a 50W*2 class D amplifier and the audio output is powerful.
Supports to direct play 999 audio files through pressing numeric keys on the remote control.
www.flyrontech.com

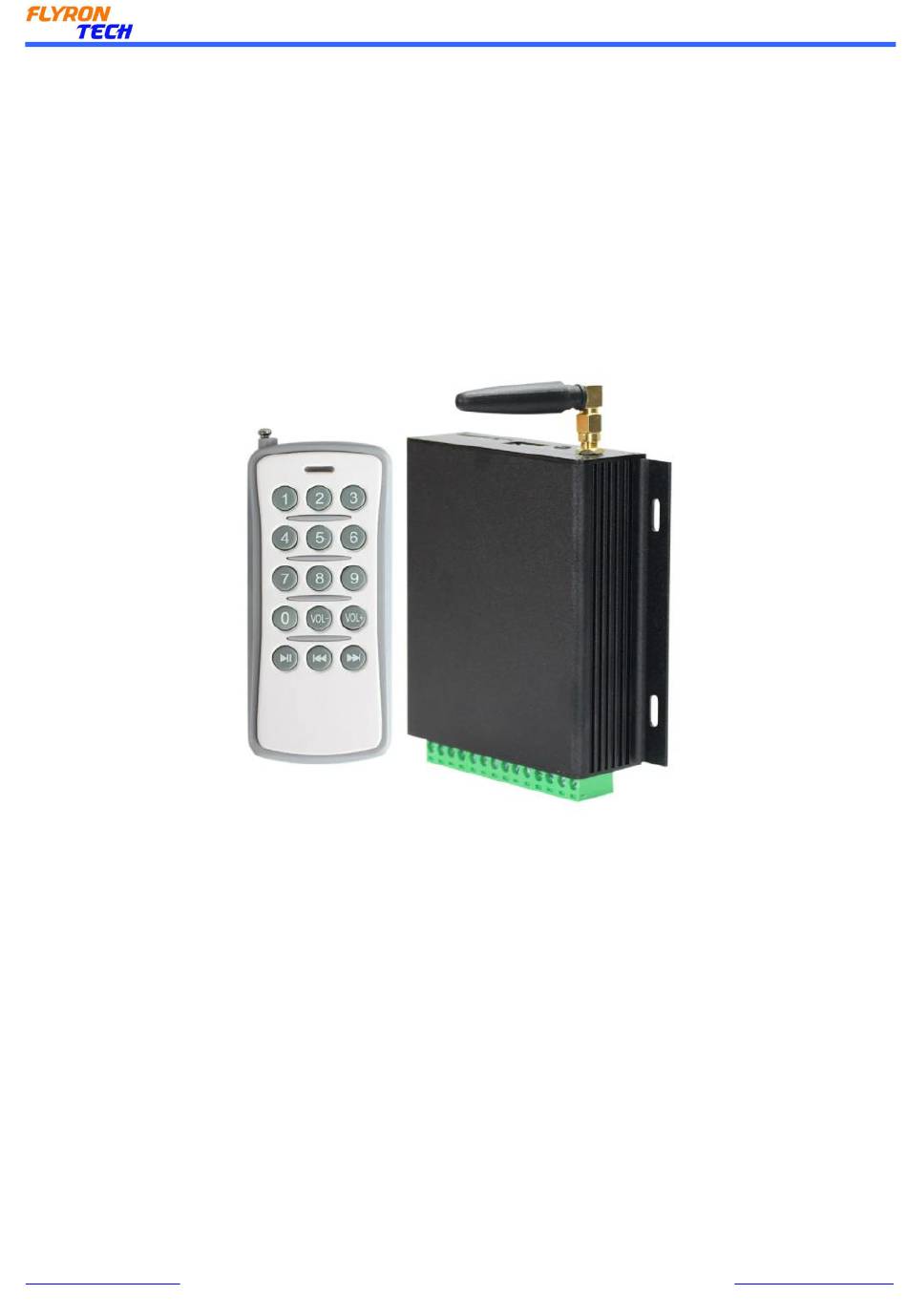

433MHz 15 Key Remote MP3 Audio Player
User's Manual
Model No.: FN-T718-RC
433MHz 15 Key Remote MP3 Audio Player
Version: V1.1
1
E-mail: info@flyrontech.com
Advertisement
Related Manuals for Flyron Technology FN-T718-RC
Summary of Contents for Flyron Technology FN-T718-RC
- Page 1 433MHz 15 Key Remote MP3 Audio Player 433MHz 15 Key Remote MP3 Audio Player User’s Manual Model No.: FN-T718-RC Version: V1.1 1. Features Uses a 433MHz radio remote control, and the remote distance can be up to 150 meters in open area.
-
Page 2: Technical Parameters
433MHz 15 Key Remote MP3 Audio Player Possible to update audio files via USB connection to computer. -No need any software/program. The internal memory will be detected as a USB flash drive on computer. Able to set a sound to be played in a loop. ... - Page 3 433MHz 15 Key Remote MP3 Audio Player Example of Wiring Connection www.flyrontech.com E-mail: info@flyrontech.com...
- Page 4 433MHz 15 Key Remote MP3 Audio Player Please just leave these terminals alone. They’re designed for other purposes. Note: When the device is powered on, there is about 5 seconds delay time (the LED keeps flashing), which was designed for paring a remote control during such a duration. After these 5 seconds, the device will be into standby and ready to work.
- Page 5 433MHz 15 Key Remote MP3 Audio Player Note: When you rename an audio file, you can still keep the original file name and add 3 digits ahead of the original name like 001-Never Say Goodbye.mp3, 002-Season in the Sun.mp3, 003-Angel.mp3, and so on. 6-2.
- Page 6 433MHz 15 Key Remote MP3 Audio Player Short press one key or two/three keys continuously within a second for direct playback of the associated audio file. For example, if you want to play the 1 audio file (001.mp3), just simply short press the numeric key “1”; if you want to play the 19 audio file (019.mp3), just short press the numeric keys “1”...
