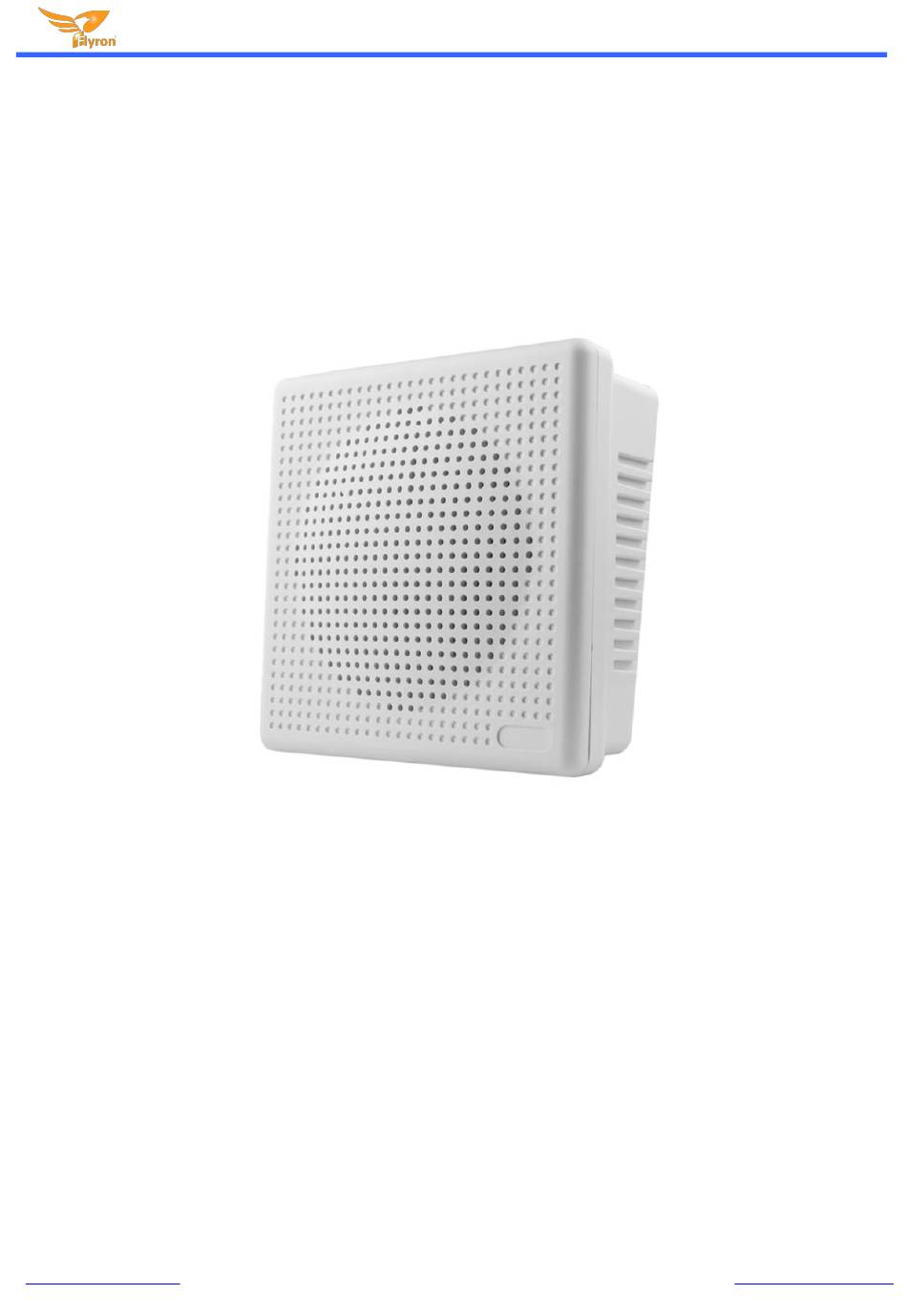

- Page 1 Flyron Technology Co., Ltd. FN-W101 Triggerable MP3 Audio Player FN-W101 Triggerbale MP3 Audio Player/Wall Speaker User’s Manual Version: V3.0 Release Date: Oct. 28th, 2024 www.flyrontech.com E-mail: info@flyrontech.com...
-
Page 2: Technical Parameters
Flyron Technology Co., Ltd. FN-W101 Triggerable MP3 Audio Player 1. Features 4 trigger inputs available and triggered by negative pulse (low level pulse signal) / GND. Equipped with a high quality audio decoder chip that is able to decode MP3 and WAV audio formats. -
Page 3: Set Trigger Mode
Flyron Technology Co., Ltd. FN-W101 Triggerable MP3 Audio Player 4. Operation Guide 4.1. Set Trigger Mode There are 7 main trigger modes(from “0” to “6”) and 4 assistant trigger modes(from “7” to “A”) available for users to set in a configuration file according to the actual needs Each of the parameters from “0”... - Page 4 Flyron Technology Co., Ltd. FN-W101 Triggerable MP3 Audio Player the audio file will not be able to be interrupted/canceled during playback. If there is a continuous pulse signal or the button is held/maintained before the audio file plays its entirety, it’ll play the audio file again.
- Page 5 Flyron Technology Co., Ltd. FN-W101 Triggerable MP3 Audio Player See the image below. There is a micro USB port on the device, and users can connect it to computer through a USB data cable to load audio files and configuration file. If there is a micro SD card inserted onto the device, the micro SD card will be detected and displayed on PC working as a USB flash drive.
- Page 6 Flyron Technology Co., Ltd. FN-W101 Triggerable MP3 Audio Player 9). Safely remove the USB cable from computer. 10). Apply power to the equipment and push any of 4 buttons to play back a corresponding sound. Notes: 1). If there is no configuration file in the memory/micro SD card, the player will always work in the trigger mode “0” for all the inputs by default.
- Page 7 Flyron Technology Co., Ltd. FN-W101 Triggerable MP3 Audio Player 4.3.2. Reference for Automatic Loop Playback When Powered Up 12-24V DC input This wiring method is for those customers’ reference, who need the player to play the sound messages automatically in a loop once it’s powered up.
