Summary of Contents for Fire Mountain EVEREST PRO FKG-M401

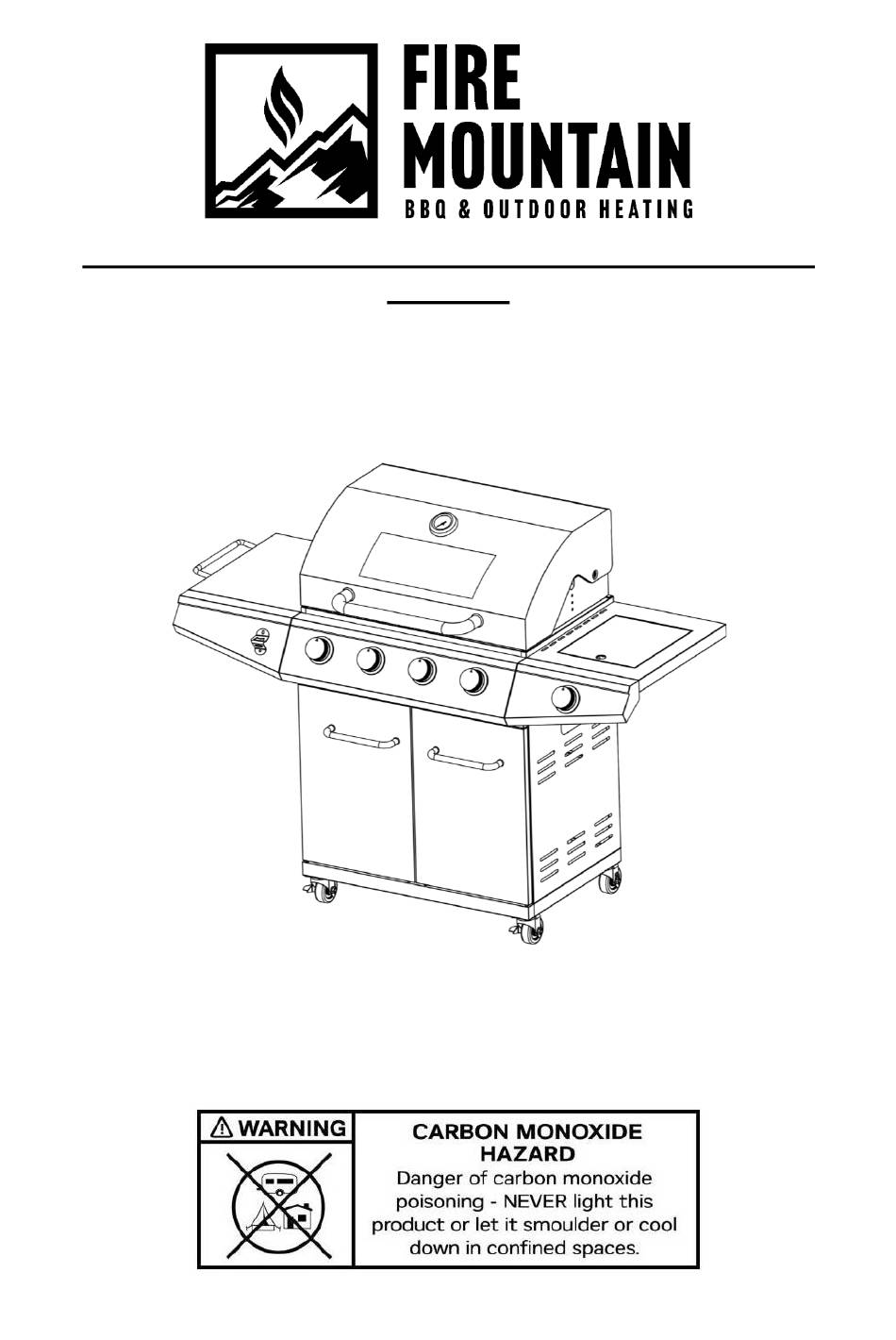

- Page 1 EVEREST PRO 5 BURNER (4+1) GAS BBQ WITH SIDE BURNER Model Number: FKG-M401 SAP Code: JB03715003 ASSEMBLY INSTRUCTIONS FOR OUTDOOR USE ONLY PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY RETAIN THIS MANUAL FOR FUTURE REFERENCE...
-
Page 2: Safety Instructions
The use of unauthorised parts can create unsafe conditions and environment. INTRODUCTION Thank you for choosing our Fire Mountain Everest Pro 5 Burner Gas BBQ with Side Burner. Please read this user manual carefully before use and keep it for future reference. - Page 3 • Turn off the gas cylinder valve immediately if there is any gas leak or a smell of gas. • Never let children operate the gas barbecue. • This is not a toy - children should be supervised to ensure they do not play with the grill.
- Page 4 • Keep gas cylinder away from any source of ignition when changing the gas cylinder or carrying out a leak test. • Only use this barbecue with charcoal when the Fire Mountain Hybrid Tray (sold separately) which compatible with this barbecue model is installed. Please read and follow the Instruction Manual of the Fire Mountain Hybrid Tray.
- Page 5 WARNING! Use outdoors only. WARNING! Read the instructions before using the appliance. WARNING! Accessible parts may be very hot. Keep young children away. WARNING! Do not move the appliance during use. WARNING! Turn off the gas supply at the gas cylinder after use. WARNING! Any modification of the appliance may be dangerous.
- Page 6 DATA BADGE FOR THE MODEL NO. BARBECUE Vale Mill (Rochdale) Ltd., Robinson Street, Rochdale, OL16 1TA, United Kingdom Product Name FIRE MOUNTAIN EVEREST PRO 5 BURNER (4+1) GAS BBQ WITH SIDE BURNER Model Number JB03715003 Product Code FKG-M401 Inlet Pressure...
- Page 7 Please read all instructions thoroughly before proceeding. Find a large, clean area in which to assemble the barbecue. Please refer to the parts list and assembly diagram throughout. Assembly of the barbecue involves many large components, so it is advisable to have two people assemble the unit. Read the following instructions carefully and be sure your barbecue is properly installed, assembled and cared for.
- Page 8 Expended View: Everest Pro 5 Burner (4+1) Gas BBQ with Side Burner – JB03715003...
- Page 9 Parts Quantity Parts Quantity...
- Page 10 Parts Quantity Parts Quantity...
-
Page 22: Connecting The Gas Cylinder To The Appliance
WARNINGS AND INFORMATION IMPORTANT: • Never light the main burners or side burners when the barbecue lid is closed. • Never light the side burner when the lid is closed. • Your barbecue can be used with gas cylinder between 11kg and 15kg, and will perform better if propane or LPG mixtures are used. -
Page 23: Regulator And Hose
① When the diameter of the injector is φ0.84 mm, this barbecue is set to operate a 28-30 mbar regulator with butane gas and a 37mbar regulator with propane gas, or a 30mbar regulator with butane, propane gas or their mixtures. ②... -
Page 24: Leak Testing
WARNING! DO NOT SMOKE NEAR THE GAS CYLINDER! WARNING! Before use, always check for leaks – never use a naked flame to test for leaks, always use the method described below. LEAK TESTING Leak test each time a new gas tank is connected or after a long period without having used the appliance. -
Page 25: Cleaning And Care
4. Push down and hold the burner knob, hold for 3 – 5 seconds and then turn it anti- clockwise to the big “ ” position, a click will be heard, this will light the burner. If not repeat this process 3 for 4 times. WARNING! If the burner fails to ignite, turn the control knob off (clockwise) and also turn the Gas Cylinder valve off - wait 5 minutes then repeat the above steps. - Page 26 Outside Surface Use mild detergent or baking soda and hot water solution. Non-abrasive scouring powder can be used on stubborn stains, then rinse with water. Interior of Barbecue Body Remove residue using brush, scraper and/or cleaning pad then wash with a soapy water solution.
-
Page 27: Care And Maintenance
SERVICING Your gas barbecue should be serviced annually by a competent registered person. Do check all hose and regulator at least 1 time per year and every time you replace the gas cylinder. All hoses must be replaced every 2 years. WARNING! Always replace damaged hoses with new hose that have the same quality and length. - Page 28 Cooking In order to reduce excessive smoke that can be emitted during the cooking, remove fatty parts from meat before cooking. Make sure that grease residue does not accumulate on the appliance. In the event of a grease fire, do not use water to extinguish, it may damage the burners, turn off the gas tank valve immediately.
- Page 29 Stainless Steel Surface – IMPORTANT INFORMATION This barbecue features stainless steel components. All stainless steel components require a level of care and protection to retain their appearance. Stainless steel is not immune to corrosion and requires a level of maintenance. The brushed finish is a highly popular design feature of these barbecues, but requires more maintenance than mirror finish stainless steel.
- Page 30 TRABLESHOOTING Problem Possible cause Action Gas leak from a hose Damaged hose. Turn off the gas supply and replace the hose Gas leak from the gas cylinder Mechanical fault or damaged Close the gas cylinder valve. or the gas cylinder. parts.
-
Page 31: Guarantee And Service
GUARANTEE AND SERVICE Your new Fire Mountain product comes with a 12 month warranty. Defects affecting product functionality may be corrected by replacement or repair provided the product is used and maintained in accordance with the instructions. This does not apply to damage or wear sustained by improper use of the accessories or the appliance.
