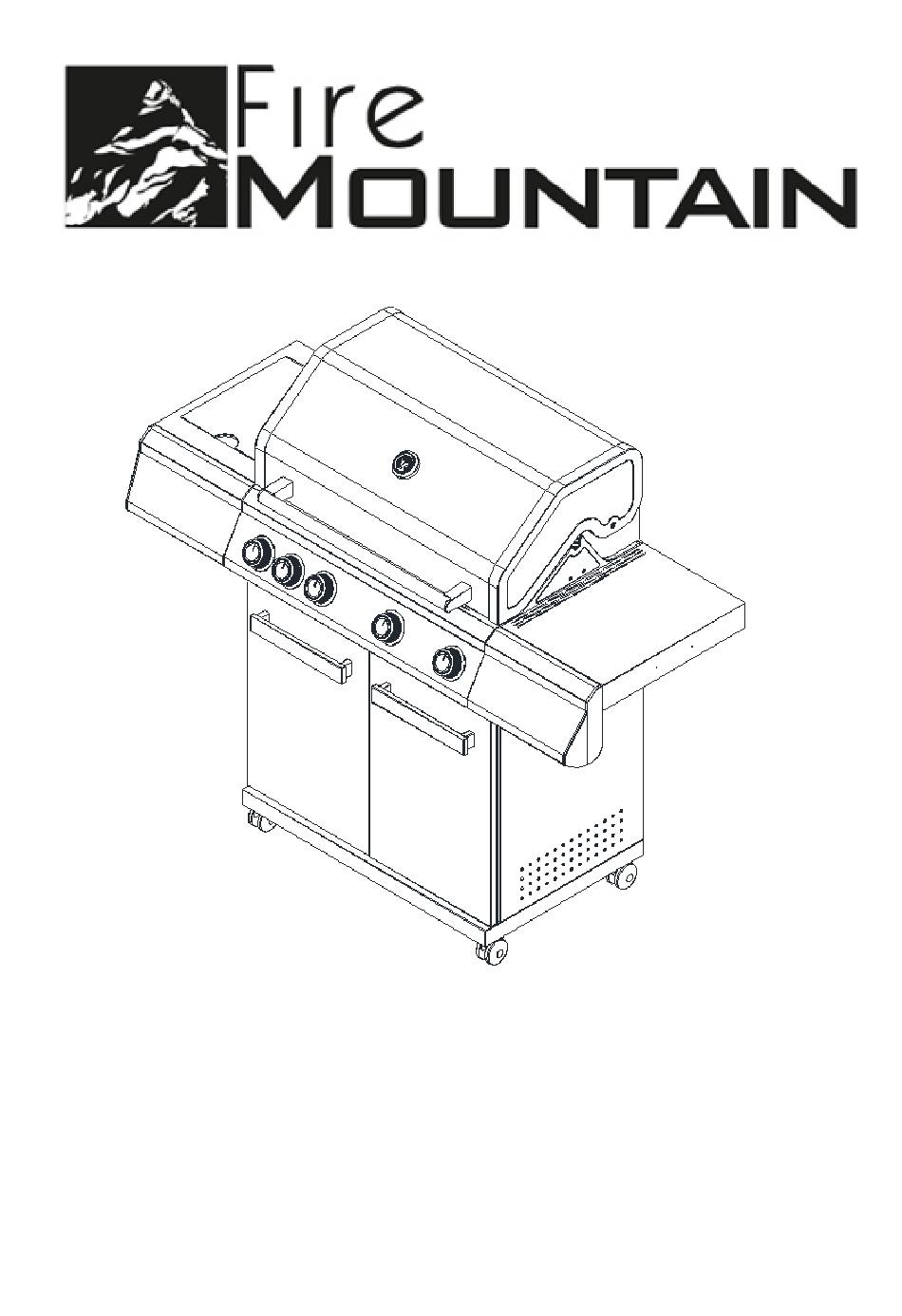

- Page 1 4 Burner + Side Burner BBQ PLEASE READ AND KEEP THESE INSTRUCTIONS FOR FUTURE USE SAP Code: JB03705501 For further assistance, other products and more, join us at: Website: www.firemountain.co.uk Facebook: www.facebook.com/fire-mountain...
- Page 2 Thank you for choosing our Fire Mountain 4 Burner + Side Burner BBQ. Please read this user manual carefully and keep it for future reference. If you need any assistance, please contact our customer service team on the details provided on the back page of this manual.
- Page 3 1. Technical Data Model: K114BFI2 Fire Mountain...
- Page 4 2. Exploded View...
- Page 5 3. Single Part List...
- Page 6 4. Fixing Elements 5. Assembly Instructions Make sure your BBQ is assembled properly. Detailed assembly instructions are packed with each BBQ giving specific assembly procedures for each model. Follow these instructions carefully to ensure the correct and safe assembly of the BBQ. Caution: Although we take every effort to ensure that the assembly process is as easy as possible, it is inherent with fabricated steel parts that corners and edged can cause cuts if improperly handled during assembly procedures.
- Page 17 6. Before Use You will need to purchase a 5kg LPG gas bottle and the pressure regulator should correspond to the pressure and gas category of the appliance, which can be obtained from your nearest Gas Retailer. The regulator should comply with EN16436 or EN16129 and EN16436 with current version and national regulation.
- Page 18 7. Installation After purchasing your gas bottle you will then be ready to set it up with your gas grill. a) When changing the gas bottle which shall be carried out away from any source of ignition. Position the gas bottle at the side of your gas grill, not underneath, keeping in mind that the bottle must be kept away from heat and in a safe position.
-
Page 19: Before Testing
How to Disconnect a Gas Bottle a) Except for twin-cylinder installations with a changeover valve, turn off the gas tap if fitted to the appliance. Wait until the burner and pilot light have gone out. For installations with a changeover valve, it is only necessary to switch off the empty cylinder. b) Replace the orange safety cap onto the empty cylinder. - Page 20 Install Regulator Hose Install Gas Tank & Regulator Hose Do not use the grill until all connections have been checked and do not leak. ALWAYS CHECK FOR LEAKS AFTER EVERY GAS TANK CHANGE Check all gas supply fittings for leaks before each use. It is handy to keep a spray bottle of soapy water near the shut-off valve of the gas supply line.
- Page 21 8. Warning and safety points Please read the following points before using your BBQ: a) Read the instructions before using the appliance. Please follow all assembly instructions in this manual; if instructions are not followed it may cause problems in use. b) This BBQ accessible parts maybe very hot when being used.
- Page 22 Warning: the handle black area (see below picture for reference) will become hot when the gas grill in use, be careful! Do not touch the black area. Since this barbecue has no restriction in the emission of unburned gas, this barbecue must be installed and/or used outdoors or in a well ventilated area.
- Page 23 10. Lighting Instructions Caution: The lid must be open when lighting the BBQ! Do not stand with your face directly over the gas grill when lighting it. Your BBQ will have following method of ignition: Pilot Gas Control Ignition: With all gas controls on the BBQ in the “OFF” position, turn the gas cylinder valve to the on position at the regulator.
- Page 24 11. Storage Your Gas Bottle must be stored outdoors in a well ventilated area and must be disconnected from your gas grill when not being used. Ensure that you are outdoors and away from any sources of ignition before attempting to disconnect your gas bottle from your gas grill. When you are using your gas grill after a period of storage, please ensure to check for gas leaks and check for any obstructions in the burner etc.
-
Page 25: Troubleshooting
12. Cleaning Instructions Maintenance is recommended every 90 days, but it is absolutely necessary to perform maintenance at least once a year. By doing so you will extend the life of your BBQ. Your gas grill is easy to clean with minimum effort, just follow these helpful hints for cleaning convenience. - Page 26 a) Turn the burner on for 15 to 20 minutes. Grease drippings will be burned off from your grill as well as your lava rock. Ensure appliance is cold before continuing. b) Grills should be cleaned periodically by soaking and washing in soapy water. c) The interior surfaces of the grill housing cover should also be washed with hot, soapy water.
- Page 27 14．Side Burners To get the maximum use with the minimum consumption of gas it is handy to keep the following points in mind: Once the burner has been alighted, adjust the flame according to your needs, from “Maximum” to “Minimum” position. Use proper pan size (with flat bottom only) for the burner When the content of the pan starts to boil, turn the knob down to “Reduced rate position”...
- Page 28 2 year period. Customer Services: If you would like further advice or information on your product, ensure you have the SAP code ready and please get in touch with us at Fire Mountain on the contact options below: SAP Code: JB03705501 Phone: 0330 002 1177 (Mon –...
