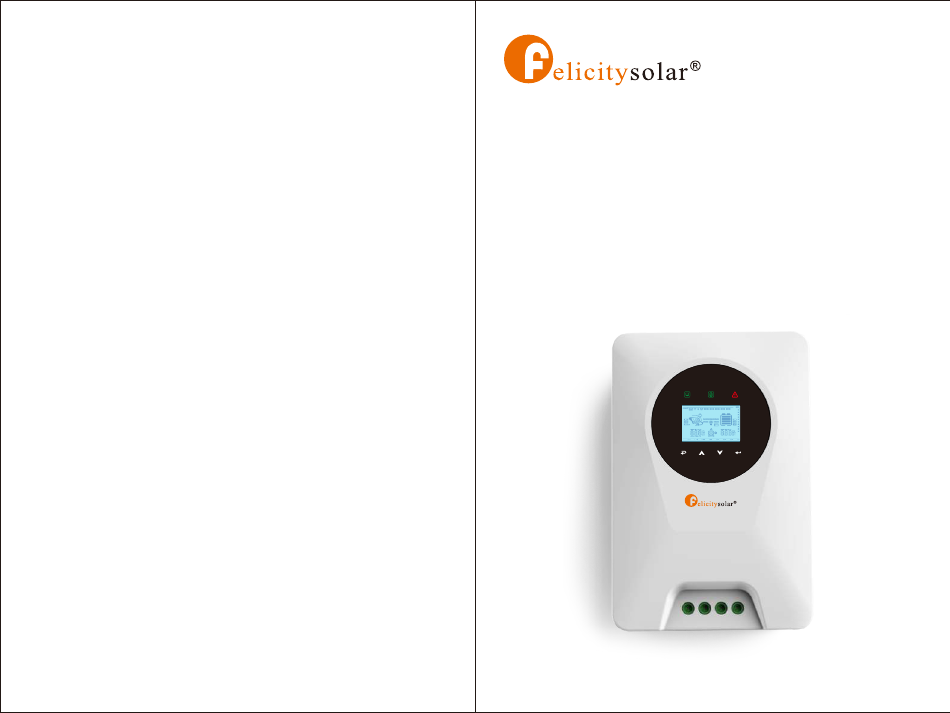

- Page 1 Make life full of hope USER GUIDE MPPT solar charge controller MPPT solar charge controller Make life full of hope 358-010419-00...
-
Page 2: Table Of Contents
Contents 1. ABOUT THIS MANUAL ..................1.1 Purpose ....................1.2 Scope ....................1.3 Safety Instructions .................. 1.4 Parallel Connection ................. 1.5 Bluetooth and WiFi .................. 2. INTRODUCTION ....................2.1 Features....................2.2 Product Overview ................... 3. INSTALLATION ....................3.1 Unpacking and Inspection ................ 3.2 Preparation .................... -
Page 3: About This Manual
MPPT solar charge controller MPPT solar charge controller 1. ABOUT THIS MANUAL 2.1 Features •Intelligent Maximum Power Point Tracking technology increases efficiency 25%~30% 1.1 Purpose •Compatible for Battery systems in 12V, 24V or 48V This manual describes the assembly, installation, operation and troubleshooting of this unit. Please read •Three-stage charging optimizes battery performance (Two-stage charging in lithium battery mode) this manual carefully before installations and operations. -
Page 4: Installation
Aluminum 6 AWG (16 m㎡ ) 6 AWG (16 m㎡) Copper 4 AWG (25 m㎡ ) 6 AWG (16 m㎡ ) SCCM 3024-III Aluminum 2 AWG (35 m㎡ ) 4 AWG (25 m㎡) SCCM 4524-III Copper 4 AWG (25 m㎡ ) 6 AWG (16 m㎡... -
Page 5: Rs485/Can
MPPT solar charge controller MPPT solar charge controller Connect terminals by following below steps (Refer to diagram above): 3.6 Grounding and Ground Fault Interruption 1. Make sure that the system input and output disconnect switches are both turnedoff before connecting Use a copper wire to connect the grounding terminal in the wiring box to earth ground.The grounding terminal power wires to the charger. -
Page 6: Operation
MPPT solar charge controller MPPT solar charge controller 4. OPERATION Button Operation 4.1 Power-Up WARNING: Risk of Damage To previous page Connecting the solar module to the battery connector will permanently damage the controller. • Confirm that the solar and battery polarities are correctly connected to the controller. •... -
Page 7: Setting Page
MPPT solar charge controller MPPT solar charge controller 30A(Default) Current direction Battery equalization enable status 45A(Default) BMS connection status Battery type is set Lib mode,ifBMS is not connected, the icon will flash 60A(Default) Rated voltage of battery status Setting range is from 30A ,45A , 80A(Default) 60A , 80A,100A or 120A. - Page 8 MPPT solar charge controller MPPT solar charge controller If “Use-Defined” is selected in program The setting range is from 30A,45A, 02, this program can be set up. The 15A (Default) 60A,80A,100A or 120A.Increment 13.6V (Default) The maximumcurrent setting range is from 12.0V to 15.0V. of each shortpress is 1A.
-
Page 9: Base Information Page
MPPT solar charge controller MPPT solar charge controller 4.5 Base information Page Firmware Version /Iap Version Firmware Version is 300,Iap Version is 001 The base information PV voltage / Charging current PV voltage / PV power PV voltage is 120V , Charging current is 120A PV voltage is 120V , PV power is 5.76kw 4.6 Reference Code Battery voltage/ Charging current... -
Page 10: Charging Logic
MPPT solar charge controller MPPT solar charge controller 5. CHARGING LOGIC 5.2 Equalize Stage Equalization function is added into solar charge controller. It reverses the buildup ofnegative chemical effects 5.1 3-stage Charging like stratification, a condition where acid concentration isgreater at the bottom of the battery than at the top. In general, this solar charge controller is designed with 3-stage battery chargingalgorithm for fast, efficient, Equalization also helps to removesulfate crystals that might have built up on the plates. -
Page 11: Setting Parameter And Default Value
MPPT solar charge controller MPPT solar charge controller 6. TROUBLE SHOOTING Equalize charging time and timeout In Equalize stage, based on maximum charging current of battery equalization, the controller will supply Situation solar power to charge battery as much as possible until battery voltage raises to battery equalization voltage. Situation Fault Then, constant-voltage regulation is applied to maintain battery voltage at the battery equalization voltage. -
Page 12: Specifications
MPPT solar charge controller MPPT solar charge controller 7. SPECIFICATIONS Table 2 Battery Charging MODEL Table 1 Electrical Specifications SCCM3024-III SCCM4524-III SCCM4548-III SCCM6048-III SCCM8048-III SCCM10048-III SCCM12048-III Charging Algorithm 3-Step MODEL SCCM3024-III SCCM4524-III SCCM4548-III SCCM6048-III SCCM8048-III SCCM10048-III SCCM12048-III Bulk, Absorption, Float Charging Stages Maximum Charge 30Amps... -
Page 13: Wifi Operation Guide In App
MPPT solar charge controller MPPT solar charge controller 8. WIFI OPERATION GUIDE IN APP 8.1 Introduction Wireless communication between SCCM-III the APP can be realized through the Wi-Fi module.The APP supports Android and iOS devices. Delivers device status during normal operation. Allows device Settings to be configured on the APP.
