Felicitysolar IVEM Series User Manual

6kva
Hide thumbs

Advertisement

Quick Links

Download this manual
IVEM Series(6KVA)
Make life full of hope
358-010358-03

Advertisement

loading
Need help?

Need help?

Do you have a question about the IVEM Series and is the answer not in the manual?

Questions and answers

Related Manuals for Felicitysolar IVEM Series

Summary of Contents for Felicitysolar IVEM Series

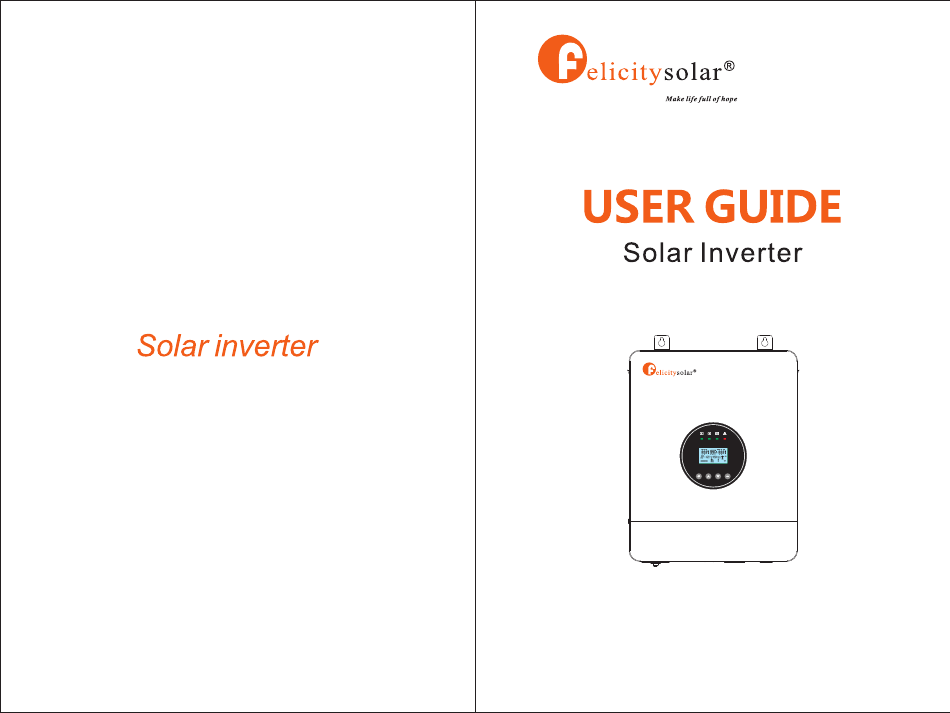

  • Page 1 IVEM Series(6KVA) Make life full of hope 358-010358-03...
  • Page 2 WIFI connection ........................Inverter and computer connection ................... LCD operation flow chart Base information Page Setting Page Energy stored data Page BMS information Page Rated information Page Lithium Battery Communication Battery equalization ....................... The Wi-Fi operation Guide in APP ..............Introduction ..........................
  • Page 4 4.Inverter indicator 11.AC input port 18.Dry contact 5.Fault or warning indicator 12.AC output port 19.Cooling fan 6.ESC button 13.Parallel connection port 20.Battery input connection port 7.UP button 14.PV input connection port 21.Input breaker The BMS communication port only supports Felicitysolar batteries...
  • Page 5 IVEM6048 90~280Vac 6000VA 6000W 120A 10-120A 500V 90V-450V 7500W 120A 120A Output Power When AC input voltage Rated Power drops to 170V,the output 50% power power will be de-rated. Output 90V 170V 280V Input Voltage power Output Load(100%) derating When DC input voltage 100% drops to 48V,the output power will be de-rated.
  • Page 6 IVEM6048 6000VA 6000W Parallel capability Yes,up to 12 units Output Load(100%) Power Limitation When battery voltage is lower than 100% 48Vdc, output power will be derated. The minimum AC output voltage is the low voltage of the mains. Make life full of hope Battery Voltage(V) Parallel communication Current sharing cable x 1...
  • Page 7 Make life full of hope Make life full of hope Parallel Manual x 1 Make life full of hope 6KVA...
  • Page 8 6KVA 6KVA 10~12 AWG WARNING! Because this inverter is non-isolated, it accepts: single crystal line and polycrystalline line With Class a and CIGS modules. To avoid failure, do not connect photovoltaic modules that may leak electricity to the inverter. For example, grounding a photovoltaic module can cause the inverter to leak current.
  • Page 9 CAUTION! Electrical surge protected photovoltaic junction box is required. Otherwise, when the photovoltaic module lightning strikes, it will cause damage to the inverter. 2.Max. power voltage (Vmp) should be during PV array MPPT voltage range. Battery voltage<Low DC 6KVA warning voltage Program01 Battery voltage>Setting setasUSB...
  • Page 10 Wiring System for Inverter of hope Make life full To previous page To confirm the selection or go to next page NOTE 1: The power grid N line and off grid N line cannot be shared and connected independently...
  • Page 11 Color State Descirption solid The battery is full. Green Flashing The battery is charging. The battery is not charged. solid Inverter is running in utility mode. Green Inverter is not running in utility mode. Inverter is running in off-grid mode. solid Green Inverter is not running in off-grid mode.
  • Page 12 LCD operation flow chart Setting Page Energy stored data page Base information Page Keep press "ENTER" for 3 sec BMS information page Rated information page Rated information page On base information page, pressing and holding "ENTER" key for 3 sec, the unit will enter parameters page. Press "UP"...

  • Page 13: Setting Page

    Date 2022-01-01 Time 09: 58: 55 Setting Page (Default) 220V 230V Output voltage Output voltage configuration setting Default: 60A 120A. 240V Default: 30A 100A.
  • Page 14 Default: 54.0V "Flooded" or "Self-defined" is selected in program 8, the range is set from 48.0V to 60.0V, with an increment of 0.1V per click. If "LIb" is selected in program 8, the range is set from 10% to 100%, with an increment of 5% per click.
  • Page 15 Disable(default) If selected, default initial Settings page. Reset Default (Default) If selected, Enable restores all Settings Enable other than the parallel Output mode setting item (28) and time to Default their initial values. The inverter also erases all energy storage-related historical data. If selected, inverter will esase all historical (Default) data of PV and Load energy, and stop...
  • Page 16 Energy stored data Page BMS information Page The energy stored data PV generated energy today PV generated energy this month Mean SOC/ Battery pack number / BMS status PV generated energy this month 99 kWh 99 kWh Mean SOC is 97%, Connected Battery pack number is 4, BMS status is 51 (Check detail in warning code table).
  • Page 17 Pin Assignment for BMS Communication Port Rated VA / WATT Rated battery voltage / Max. charge current Rated VA is 6KVA, WATT is 6KW Rated battery voltage is 48V, Max. charge current is 120A PIN 1 PIN 2 PIN 3 CAN.L PIN 4 CAN.H...

  • Page 18: Battery Equalization

    Battery Equalization However, in Equalize Mode, when battery equalized time has passed and the battery voltage has not risen to the battery equalization voltage point, the charge controller will extend the battery equalization time until the battery voltage reaches the battery equalization voltage. When battery equalized timeout setting is Battery equalization function is built into the charge controller.It mitigates the formation of negative chemical complete, if the battery voltage is still lower than the battery equalization voltage, the charge controller will impactslike stratification, a condition where the acid concentration is greater at the bottom of the battery than...
  • Page 19 NOTE 1:Before starting up inverters, please connect all N wires of AC output together NOTE 1:Before starting up inverters, please connect all N wires of AC output together NOTE 2: Do not connect the AC input Neutral (N) wire to the AC output Neutral (N) wire NOTE 2: Do not connect the AC input Neutral (N) wire to the AC output Neutral (N) wire NOTE 3: Before starting up inverters, please connect all negative (-) wires of battery together.
  • Page 20 Three Phase Parallel connection diagram for six inverters in parallel Before starting up inverters, please connect all N wires of AC output together. NOTE 1:Before starting up inverters, please connect all N wires of AC output together NOTE 2: Do not connect the AC input Neutral (N) wire to the AC output Neutral (N) wire NOTE 3: Before starting up inverters, please connect all negative (-) wires of battery together.
  • Page 21 AC Surge or internal components failed. Restart the unit, if the error happens again, please return to Bus voltage is too high repair center. Restart the unit, if the error happens again, please return to Bus voltage is too low repair center.
  • Page 22 Reduce the connected load. 1. Please check AC input and output wires are connected correctly. Restart the unit, if the error happens again, please return to Output voltage is too low 2. If this error happens during parallel installation, please check The AC input and output wires repair center.
  • Page 23 The Wi-Fi operation Guide in APP The output current of each 1. Check if sharing cables are connected well and restart the inverter. inverter is different. 2. If the problem remains, please contact your installer. Introduction 1. Switch off the inverter and check LCD setting program 28. 2.

This manual is also suitable for:

Ivem6048
