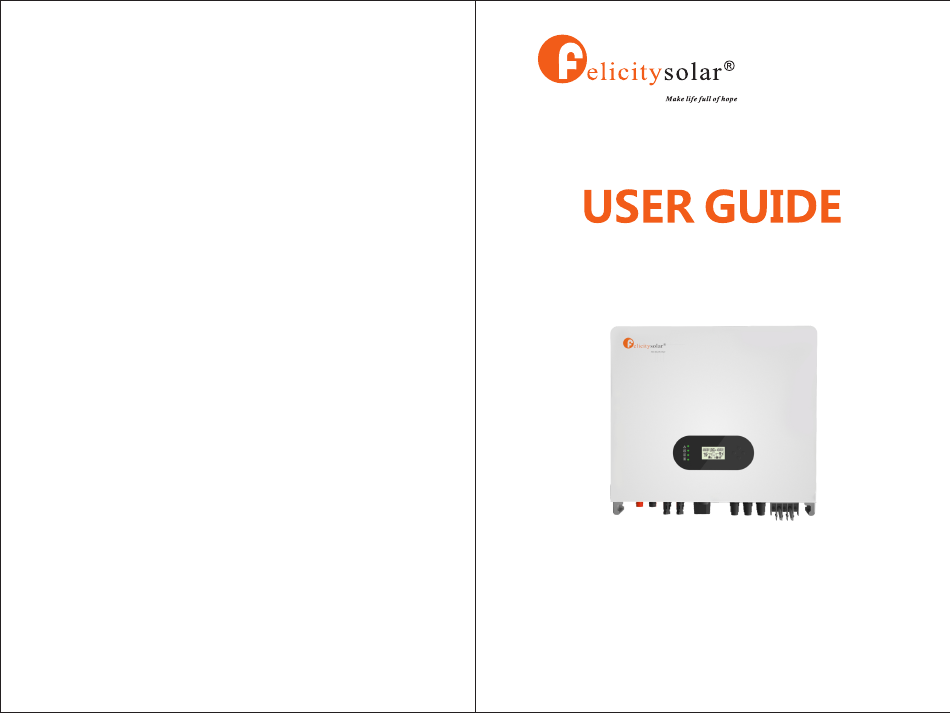

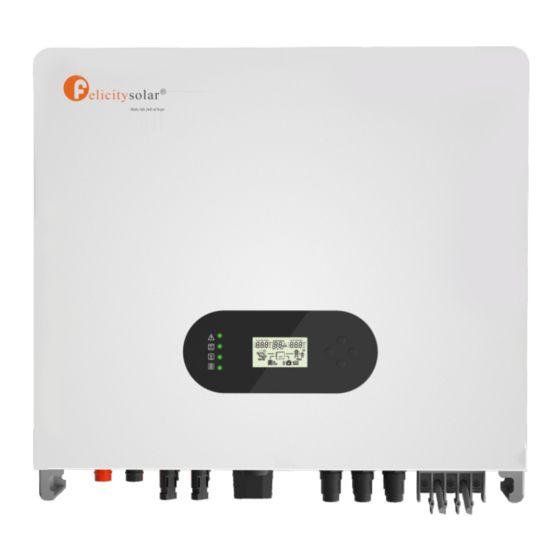

- Page 1 IVGM4648/5048 Hybrid solar inverter 358-010244-02...
-
Page 2: Table Of Contents
Hybrid solar inverter Hybrid solar inverter Contents 1.SAFETY & WARNING ..................2 Product Introduction ..................2.1 Operation Modes ..................2.2 Products overview ..................3 INSTALLATION ....................3.1 Packing List....................3.2 Installation tools ..................3.3 Installation Environment ................3.4 Mounting ....................4. -
Page 3: Safety & Warning
DC input short circuits. 2.Product Introduction Felicity Solar IVGM4648/5048 is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operation such as... -
Page 4: Operation Modes
Hybrid solar inverters Hybrid solar inverters 2.2 Products overview Make life full of hope Make life full of hope Make life full of hope 8 9 11 Figure 2.1-1 Block diagram of hybrid solar inverter system 2.1 Operation Modes IVGM system normally has the following operation modes based on your configuration and layout conditions. -
Page 5: Installation
Net Weight Gross Weigh 3.2 Installation tools Model (mm) (KG) (mm) (mm) (KG) IVGM4648/5048 32.4 39.1 Marking pen Adjustable wrench Electric drill Hammer 3 Installation 3.1 Packing List The inverter 100% strictly inspected before package and delivery. Please check the product package and fittings carefully before installation. -
Page 6: Mounting
Hybrid solar inverter Hybrid solar inverter The installation of inverter should be protected under shelter from direct sunlight or badweather ·Inverter cannot be installed near flammable, explosive or strong electro- like snow,rain, lightning etc. magnetic equipment. √ direct sunlight rain exposure no direct sunlight no rain exposure no snow bulid... -
Page 7: Electrical Connection
Hybrid solar inverter Hybrid solar inverter Step 2. Connect PV cables to PV connectors.See Figure 4.1-2. MC4/QC4.10 series Figure 4.1-2 PV cables to PV connectors Figure 3.4-3 Rack earth(Ground wire locked by M5) · PV cables must be tightly crimped into the connectors. 4 Electrical Connection NOTE ·... -
Page 8: On-Grid & Back-Up Connection
Step 2. Make battery terminals，Strip cable coat, revealing 10mm length of metal core.Use special crimper to compress battery terminal tightly. INVERTER MODEL AC BREAKER SPECIFIFICATION IVGM4648/5048 40A/230V,2P · The absence of AC breaker on back-up side will lead to inverter damage if an NOTE electrical short circuit happens on back-up side. -
Page 9: Smart Meter & Ct Connection
Hybrid solar inverter Hybrid solar inverter 4.4 Smart Meter & CT Connection Table 4.3-2 : Ac cable specifications Grade Description Value Outside diameter 13-18 mm Separated wire length 20-25 mm — Conductor wire length 7-9 mm Conductor core section 4-6 mm Figure 4.4-1 Smart Meter Step 2. -
Page 10: Drms Connection
Hybrid solar inverter Hybrid solar inverter Table 4.4-3 :Detailed Pin Function Of COM Port On IVGM Position Function Note 485_A2 RS485-2 For Meter 485_B2 485_A3 485_B3 RS485-3 For Remote Monitor 485_A3 Grid side 485_B3 RY_4 Inverter side RY_5 Note：The cable should be made refer to Figure 4.4-3 Figure 4.4-4 Smart meter connection BN-WH BU-WH... -
Page 11: Lithium Battery Communication
Hybrid solar inverter Hybrid solar inverter 4.6 Lithium Battery Communication ·The RJ45 terminal in the inverter has the same function as DRED. NOTE Please leave it in the inverter if no external device is connected. It’s allowed to connect lithium battery and build communication only which it has been configured. -
Page 12: Installation Of Wifi Module
Hybrid solar inverter Hybrid solar inverter 3. Configure battery type to lithium battery on the app 4.8 Wiring System Rated Output frequency 50Hz Battery Type Lithium batt... And then LCD will show you “Li” icon. 4. Power up lithium battery and inverter. Wait a moment, if the communication is built between them, LCD will show you “BMS”... -
Page 13: Display And Operation
Hybrid solar inverter Hybrid solar inverter 5.Display and operation 5.2 LCD Display Icons This chapter describes the panel displaying and how to operate on the panel, which involves the LCD display, LED indicators and operation panel. 5.1 Operation and Display Panel PV AC BAT TEMP OUTPUT BATBMS ℃... -
Page 14: Base Information Page
Hybrid solar inverter Hybrid solar inverter Indicates communication is built between inverter and meter 5.3 Base information Page The base information 450V, CPU software version 54.0V CPU software version is 1100 450V,... -
Page 15: Warning Code Table
Hybrid solar inverter Hybrid solar inverter 6.Warning Code Table Reduce the connected load by switching off some Overload time out equipment. Restart the unit, if the error happens again, please The output overcurrent is abnormal return to repair center. Output short circuited Check if wiring is connected well and remove abnormal load. -
Page 16: Appendix
Hybrid solar inverter Appendix Restart the unit, if the error happens again, please return Relay check failure to repair center. Model IVGM4648 IVGM5048 CAN data loss Battery Input Data 1.Check if communication cables are connected well and restart the inverter. - Page 17 Hybrid solar inverter Hybrid solar inverter AC Output Data(Back Up) * According to local grid-connected standards Features: Rated output power 4600VA/4600W 5000VA/5000W · Support WiFi for mobile monitoring · 48V low voltage battery, transformer isolation topology Max. Output current · Max. charging/discharging current of 100A Rated AC output voltage 230Vac ·...
