Power Probe PPDRAW User Manual page 4

PPDRAW EN
5. Bluetooth Connection
In both the normal display mode and graphic display mode, you can use the link button
to turn the Bluetooth device on or off. When turned on, you can use the PowerProbe
Link App to scan for and connect to the device.
6. Charging
The device has a built-in high-capacity lithium battery and can be charged through
a USB Type-C port, supporting PD fast charging. Please use a standard charger to
charge the device.
7. Min/Max Value Reset
To reset the Min/Max amperage values during a draw test, simply press the Power/
Return button and the values will reset.
IV. Measuring Parasitic Draw

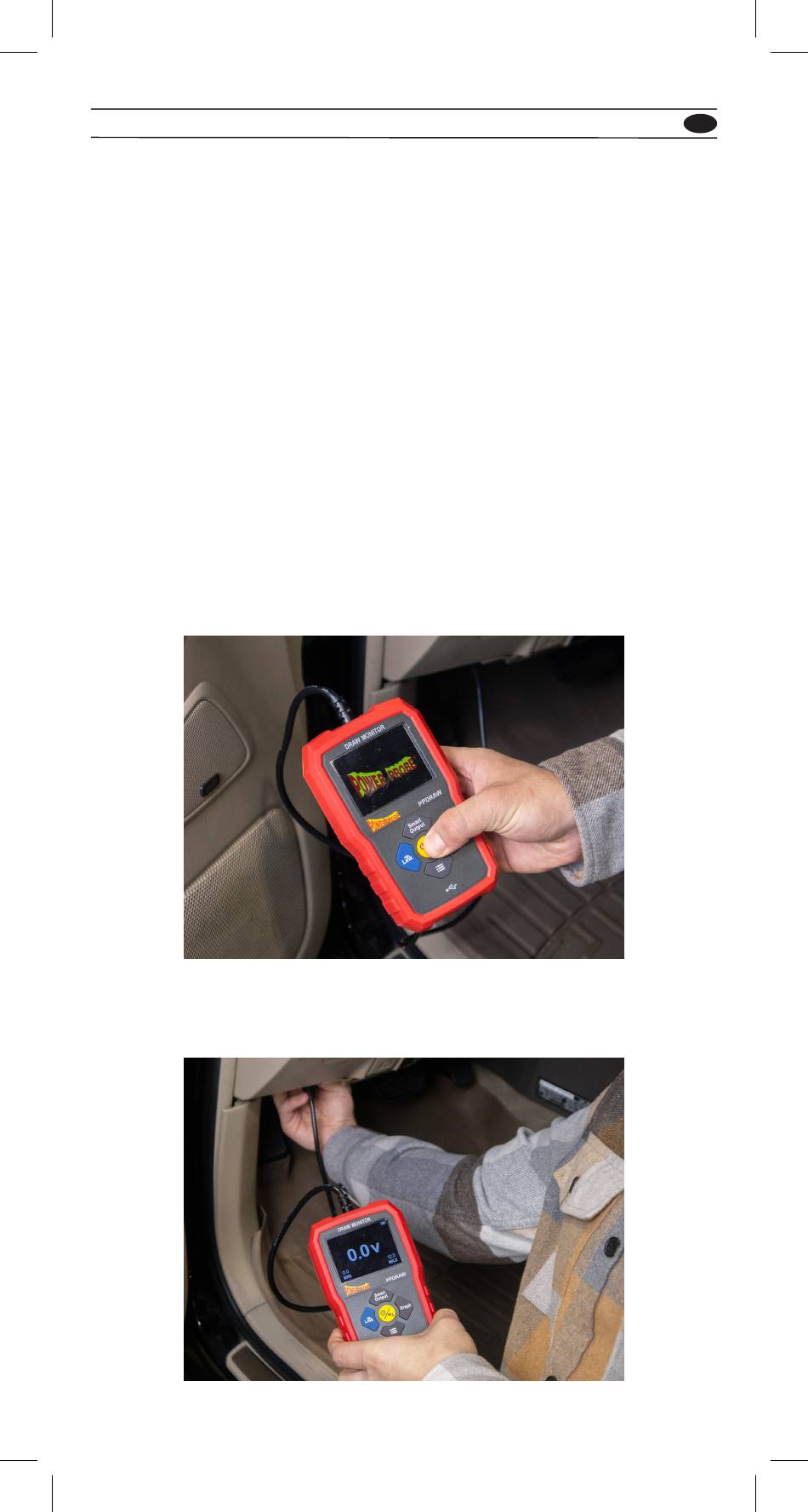

Step #1:
Press and hold power button to turn on PPDRAW.
Step #2:
Connect the PPDRAW to the vehicle's OBDII interface via the PPDRAW OBDII cable.
3
