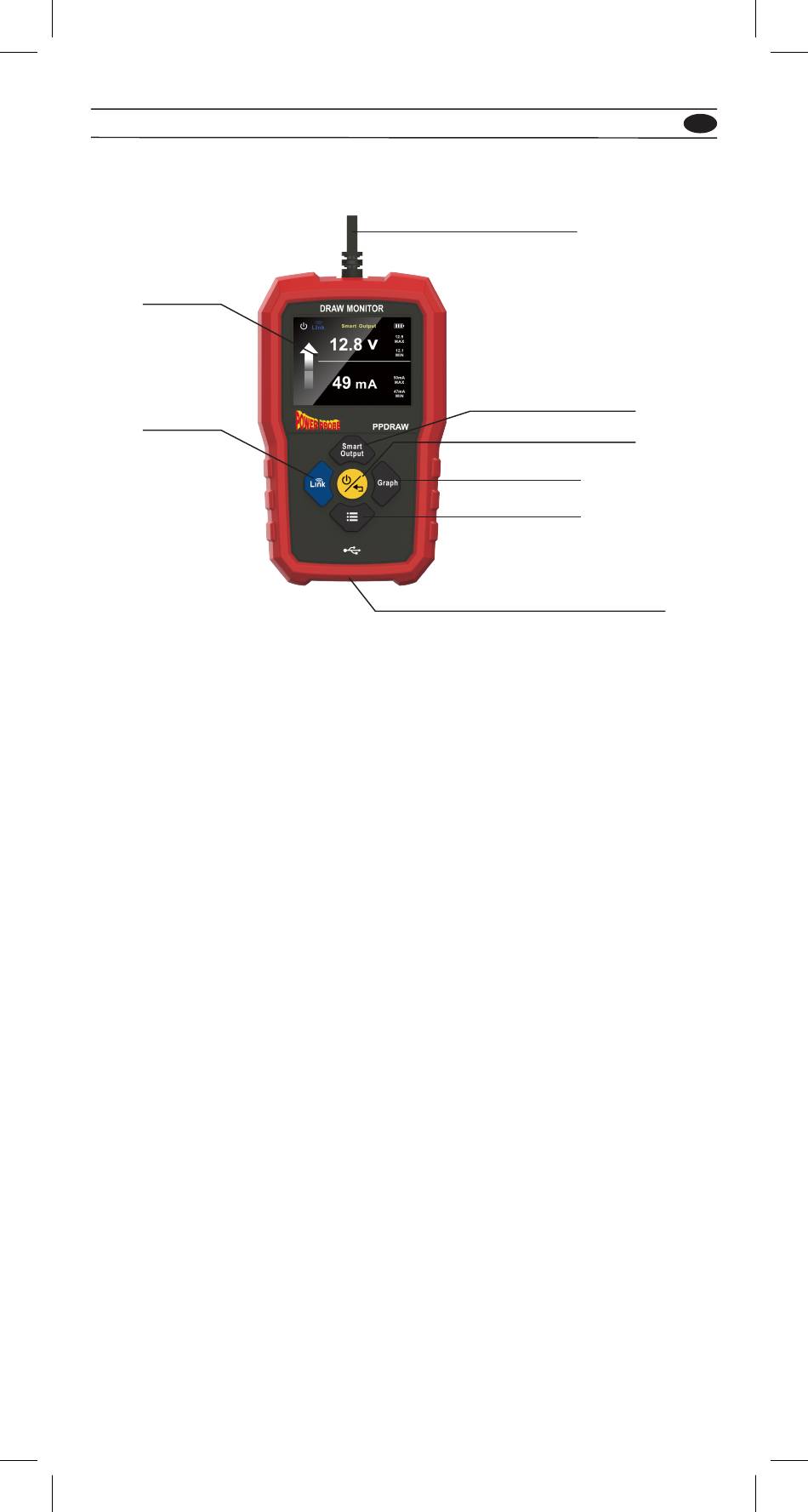

II . Appearance, Button Definition, and Icons
TFT Screen
Link Button
III . Operation Instructions
1. Power On/Off
When the device is powered off, long press the power button to turn it on, and long
press the power button to turn it off when it is powered on.
2. Smart Output
The smart output function generates a 12V voltage. If this voltage is higher than the car
battery voltage, it will output power through OBDII; otherwise, the output will be cut off
to monitor the battery voltage. By default, smart output is turned off after booting up.
Press the smart output button to activate it, and press the smart output button again to
turn it off.
3. Graphic Mode
The graphic mode is different from the normal display mode. This mode displays the
voltage and current values from the last 20 seconds as a waveform on the LCD screen.
The default mode after power on is the normal display mode. Press the Graph button to
switch to graphic display mode, and press the button again to return to normal mode.
4. System Settings
Press the menu button to enter the menu, where you can set the auto power-off time
and current alarm value.
- Auto Power-off Time: This setting determines how long the device will automatically
power off when there is no operation. You can adjust the auto power-off time by
selecting the option and using the left or right buttons.
- Current Alarm Value: In the normal display mode and smart output state, if the output
current exceeds or equals the preset alarm value, the interface will display a red
warning. You can set this value in the menu by selecting the option and using the left
or right buttons.
OBD II Cable
Smart Output Button
Power/Return Button
Graph Button
Menu Button
USB Type-C Charge Port
