Coleman REVOLUTION II G57101 Assembly Manual page 3

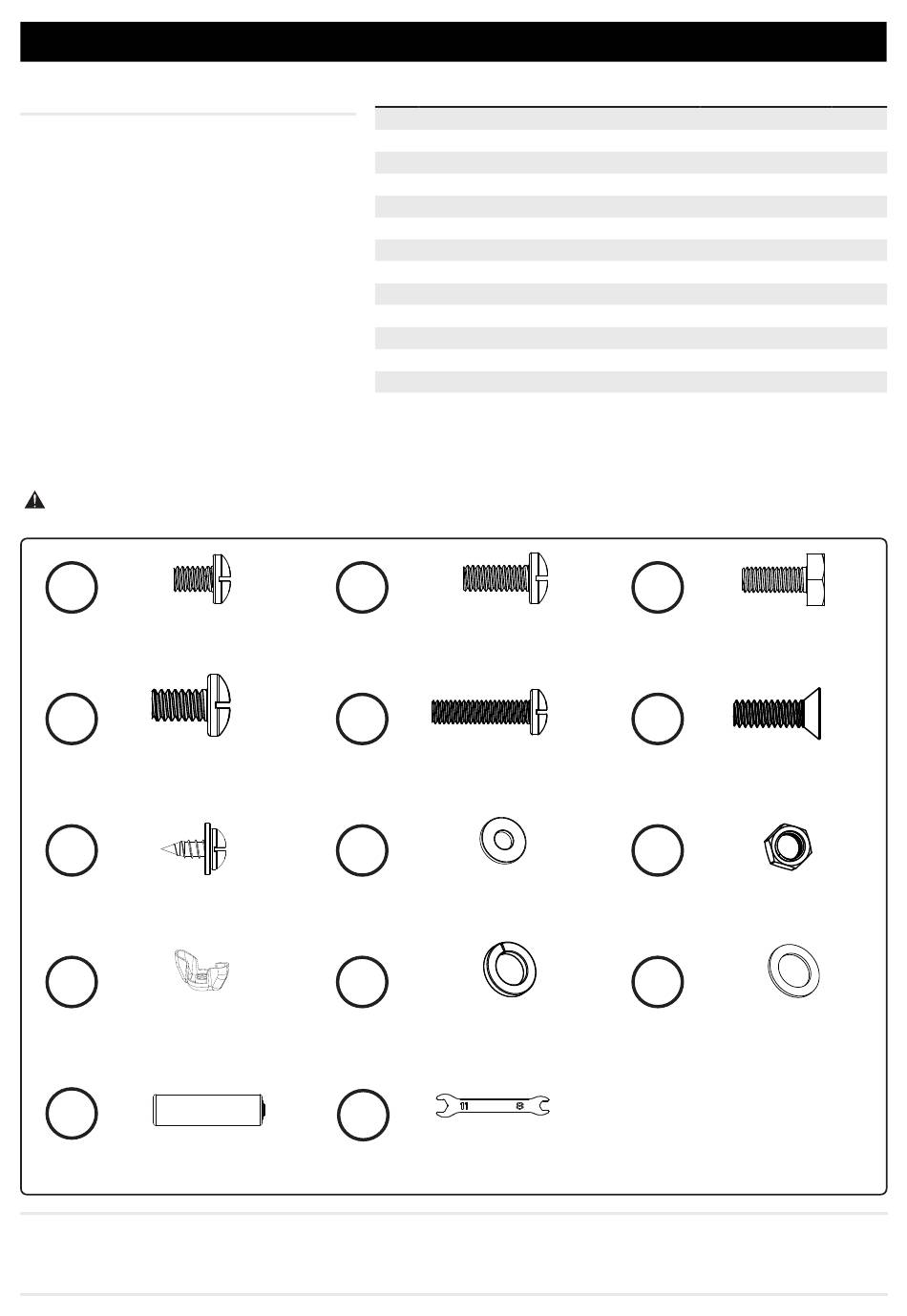

HARDWARE PACK
TOOLS NEEDED FOR ASSEMBLY
• #2 Phillips screwdriver (long and short)
• 1/4" Slotted screwdriver (long and short)
• Pliers
Caution:
Sheet metal can cause injury. Wear gloves when installing the barbecue.
1
1/4"-20UNC x 10 Screw
4
NO.10-24UNC x 13 Screw
7
ST4.2 x 10 Tapping Screw
10
Wing Nut
13
-
AA Battery
BEFORE ASSEMBLING THIS BARBECUE, READ THE INSTRUCTIONS CAREFULLY.
Assemble the barbecue on a flat, clean surface. Grill is heavy. Two people are
recommended to assemble this barbecue.
2
X 1
5
X 20
8
X 10
11
X 1
14
+
X 1
No. Description
1 1/4"-20UNC x 10 Screw
2 1/4-20UNC x 16 Screw
3 1/4-20UNC x 16 Hexagon Screw
4 NO.10-24UNC x 13 Screw
5 NO.8-32UNC x 18 Screw
6 NO.8-32UNC x 10 Screw
7 ST4.2 x 10 Tapping Screw
8 φ7 Rubberized Washer
9 NO.8 - 32UNC Nut
10 Wing Nut
11 φ7 Lock Washer
12 Wheel Washer
13 AA Battery
14 Wrench
1/4-20UNC x 16 Screw
X 27
NO.8-32UNC x 18 Screw
X 2
φ7 Rubberized Washer
X 6
φ7 Lock Washer
X 1
Wrench
X 1
1
Part Number
20120-13010-250
20120-13016-250
G571-0030-9000
20124-10013-250
20132-08018-250
20332-08010-250
22500-42010-137B
G501-0054-9100
30232-08000-250
33301-04000-032
41400-07000-250
G367-0005-9000
G610-0028-9100
G571-0028-9099
3
1/4-20UNC x 16
Hexagon Screw
X 4
6
NO.8-32UNC x 10
Screw
X 3
9
NO.8 - 32UNC Nut
X 2
12
Wheel Washer
X 3
Qty.
1
27
4
20
2
3
10
6
2
1
1
3
1
1
