Equipment Technical Data
Detailed information about specific equipment is presented in submittal documentation; some general info is
provided below:
Air Data
Heating Water Data
Pool Water Data
Fuses Data
For amperage rating of specific fuse – refer to
Wiring Diagram provided with the equipment
Specific information for individual dehumidifiers is provided in the following methods:

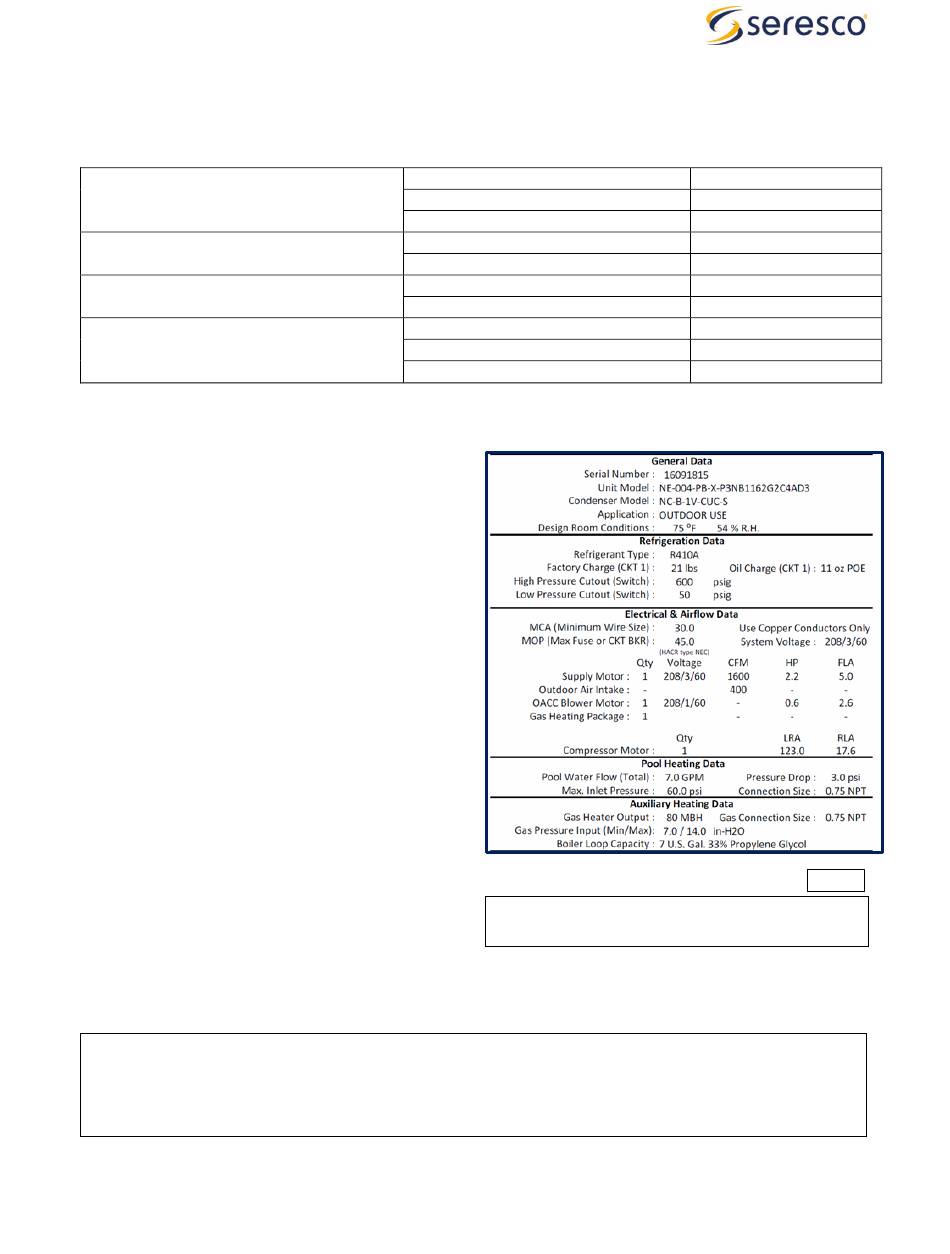

Main Label (Pic. C.5): the manufacturer tag attached to
the front of the dehumidifier includes the dehumidifier's
most critical data:
 General data including:
o
Serial number
o
Dehumidifier model (nomenclature)
o
Design room conditions (air temperature
and humidity)
 Operational data, including:
o
Refrigeration (refrigerant type, charge,
etc.)
o
Electrical/airflow (dehumidifier voltage,
CFM, etc.)
o
Other applicable data (pool heating,
space/auxiliary heating features, etc.)
Labels and Stickers: attached when applicable to the
exterior and interior of the dehumidifier to show:
 External systems connections location/direction
(pool/space heating, cooling circuits, condensate)
 Air filter locations, quantity, and size.
 Additional Info (warning, caution stickers, etc.)
Wiring Diagrams: attached to the interior side of the dehumidifier, depict dehumidifier control and power wiring.
Remotely installed condenser or cooler would have its specific information provided in similar manner (labels etc.).
Unless otherwise indicated, equipment fluid circuits (except for refrigeration and pool water circuits), are
normally filled/to be filled with water/glycol mixture; normally, rust inhibitor-infused food-grade propylene glycol
is used. Glycol mixture concentration is normally shown on Main Label – refer as needed.
December 2024
ESP Min
ESP Max
Leaving Air Temperature max
Pressure, MAX
Entering Water Temperature MAX
Entering Water Temperature MAX
Leaving Water Temperature MAX
Class
Type
V (rated)
Note:
Attention! Glycol Circuits.
13
0.5" wc
3" wc
120 F
250 psi
180 F
94 F
104 F
J, CC
Time-delay
600 VAC, 300 VDC
The main label shown above is just an example.
Pic. C.5
OMM
