7 INCH DIGITAL
MONITOR SYSTEM
Part # SM07J
Please read this manual completely before operating the SYSTEM
A division of
Component Solution Services, LLC.
56600 Twin Branch Dr.,
Mishawaka, IN 46545
www.veritysafe.com
2022-Current
Content copyright protected.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM07J and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Verity Audio SM07J

  • Page 1 7 INCH DIGITAL MONITOR SYSTEM Part # SM07J Please read this manual completely before operating the SYSTEM A division of Component Solution Services, LLC. 56600 Twin Branch Dr., Mishawaka, IN 46545 www.veritysafe.com 2022-Current Content copyright protected.
  • Page 2: Table Of Contents

    TABLE of CONTENTS Contents ABOUT US .................. 3 THINK SAFETY ................4 SYSTEM FEATURES ..............6 SYSTEM COMPONENTS ............7 CABLE CONNECTIONS ............. 8 MONITOR OPERATIONS ............11 MENU OPERATIONS ............... 12 SYSTEM DIMENSIONS ............14 ® VERITY WARRANTY .............. 15 TECHNICAL SUPPORT ....
  • Page 3: About Us

    ABOUT US Component Solution Services LLC engineers the ® Verity products to meet any requirement and price point within the commercial and fire rescue industries. Designed for professional drivers, Verity develops and markets products and applications to transmit video, ® ®...
  • Page 4: Think Safety

    ® Thank you for your purchase of our Verity products. When installed and used properly, your SM07J is designed to deliver years of trouble-free operation. This manual contains important information required to properly install and operate the unit. Verity systems are designed for quick installation by trained professionals in proper installation environments.
  • Page 5 WARNING  Do not place heavy objects on cables or cover them with carpet or mats.  Do not place cables where they can be crushed in any manner.  Our systems are designed as a driving aid. Watching videos, broadcasts, DVDs, and/or any images other than those intended for driving assistance cameras is prohibited.
  • Page 6: System Features

    SYSTEM FEATURES MONITOR SPECIFICATIONS (Monitor part #MK07J) Screen size: 7-inch digital screen (16:9) High Resolution: 1024 (RGB) x 600 System: NTSC/PAL Contrast: 700 Brightness: 520 cd/m Power supply: DC 12V~24V with reverse polarity protection Operation temperature: -30℃~+70℃.RH95% Max Storage temperature: -40℃~+85℃.RH95% Max Field of View: Horz.
  • Page 7: System Components

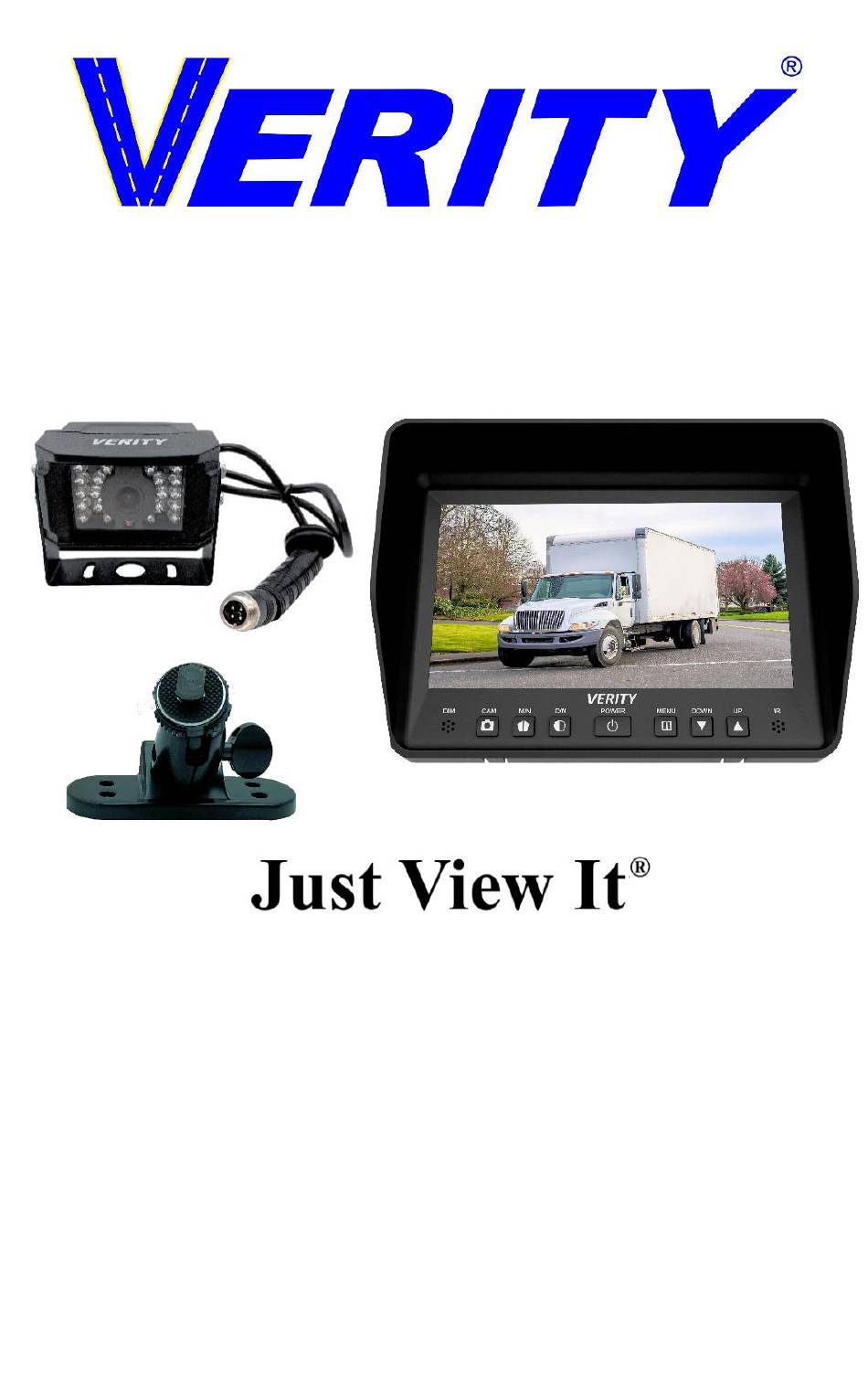

    SYSTEM COMPONENTS Manual 7-Inch digital LCD monitor 20-Meter Camera Weatherproof Camera Cable with night vision 13-pin to 4-pin Monitor Heavy Duty Harness Slim Base Mount...
  • Page 8: Cable Connections

    CABLE CONNECTIONS Fuse Chassis Ground CAM 1 Camera one trigger wire CAM 2 Camera two trigger wire CAM 3 Camera three trigger wire Wire Connection Key:  wire to ignition hot (+) 10-26 volts  BLACK wire to ground (-) (please use a chassis ground post) ...
  • Page 9 COMPLETE CONNECTIONS...
  • Page 10 Camera Mounting The camera should be mounted on the center line of the truck. When mounting the camera, do not use the center hole on the bracket. Please make a drip loop in the camera cable. It prevents water from entering (wicking) into the truck.
  • Page 11: Monitor Operations

    MONITOR OPERATIONS DIM Auto Dimming Photo Cell CAM Switches between cameras M/N Mirrored / Normal View D/N Day / Night screen brightness (Works only when not in auto dimmer mode) POWER Power on/off button RED power off / BLUE powered MENU Activates operational menu Down Volume DOWN / switches down when in menu Volume UP / switches up when in menu...
  • Page 12: Menu Operations

    MENU OPERATIONS Press Menu: The red highlighted text shows the current selection. Press the MENU button to advance through the available options and use the DOWN/UP arrow buttons to adjust the selection. BRIGHT DIMMER AUTO CONTRAST PARK COLOR CAM1 TIME VOLUME CAM1 NORMAL...
  • Page 13 (Only on CAM 1) Use the DOWN / UP arrows to turn on/off the park lines. If parking lines on: Use the DOWN / UP arrows to adjust parking lines vertically. Vertical Adjustment Width Between Lines This monitor can be mounted on the dash and can be mounted on both horizontal and vertical surfaces.
  • Page 14: System Dimensions

    SYSTEM DIMENSIONS...
  • Page 15: Verity ® Warranty

    ® Verity A division of COMPONENT SOLUTION SERVICES, LLC (CSS) LIMITED One (1) YEAR WARRANTY 1. CSS products’ warranties are not transferable. They apply to the consumer for one (1) year and cover defects in material and workmanship. We do not warranty our cables, which are QC tested at three different stations before shipping.
  • Page 16: Technical Support

    Technical Support A service ticket can be filled out online to supply the quickest service. The service ticket can be easily found on our website, www.VeritySafe.com, or use the code to the right. Please have the system's serial number, which is found on the back of the monitor, when contacting the service department.
