- Page 1 VPS - VIDEO PANEL SYSTEM USER MANUAL 2480 South 3850 West, Suite B Salt Lake City, UT 84120 (866) 975-0101 • (866) 975-0404 fax sales@transmittersolutions.com...
- Page 2 3. Setup a new device ..................8 3.1. New device setup via the PalGate application........8 3.2. New device Setup via the PAL Portal ..........10 4. VPS Main Screen ..................12 2480 South 3850 West, Suite B , Salt Lake City, UT 84120...

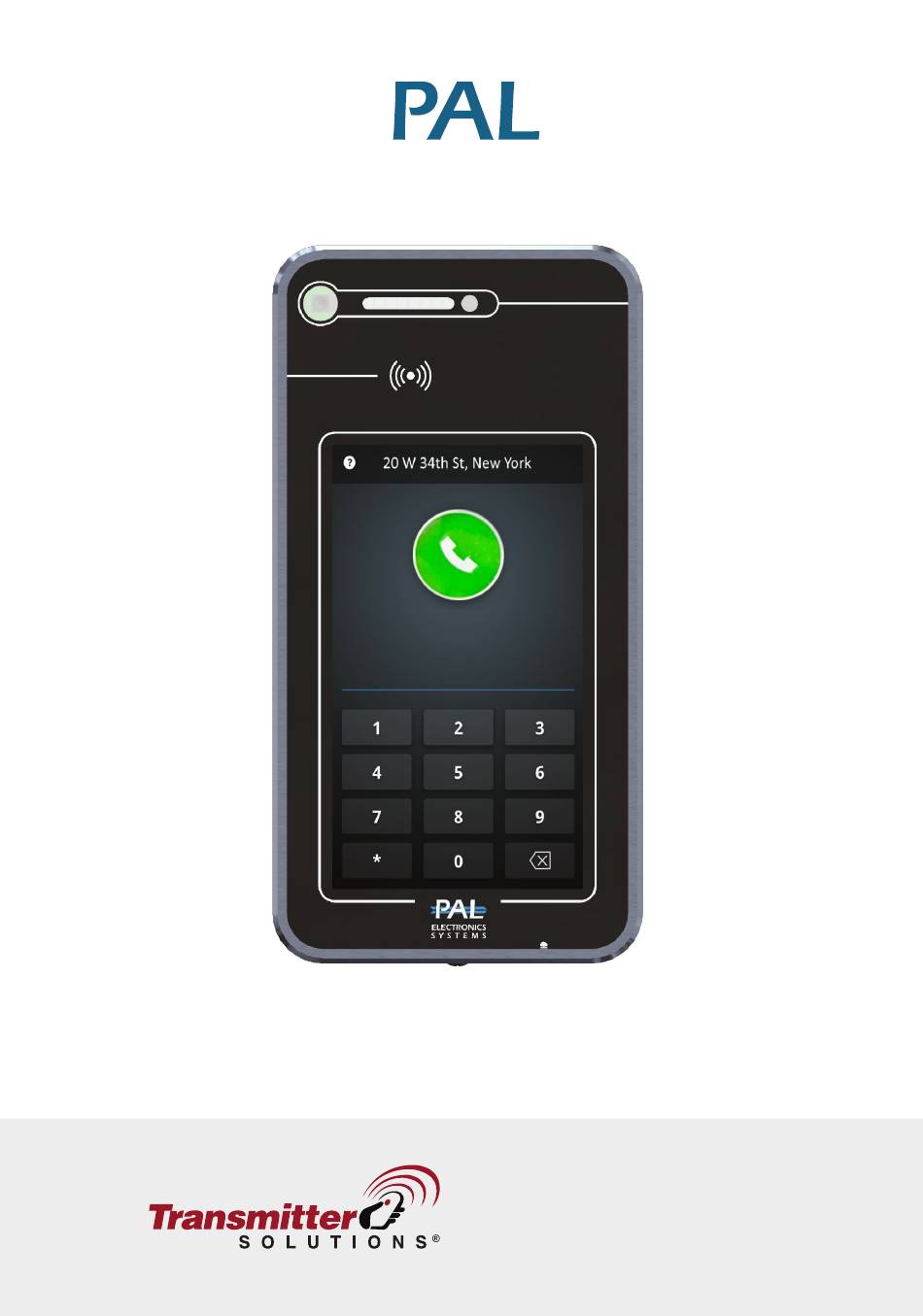

- Page 3 1. Product Overview 1.1. Introduction to Product Thank you for selecting the PAL VPS-Video Panel System. This product is a wireless video intercom system with a touch panel screen. Installation is quick and simple without the need for infrastructure. The VPS enables video calling and settings are easily managed via the PalGate App and the PAL WEB portal.
- Page 4 VPS - VIDEO PANEL SYSTEM 1.3. Features Display Size 7-inch Display Resolution 720x1280 Touch Screen √ Anti vandal design √ Anti vandal glass √ Camera 8M pixels - View Angle 120° Cellular network supported 4G / 3G / 2G Wi-Fi 802.11a/b/g/n 2400MHz~2482MHz 5180MHz~5825MHz Bluetooth...
- Page 5 VPS - VIDEO PANEL SYSTEM 1.4. Dimension 1.41 in 5.07 in (x4) Ø .2 in 3.07 in .787 in 4.09 in 1.5. Interface Introduction WIFI/BT Antenna 4G cellular network Antenna RJ45 connection network and PoE+ *Power Input - PoE+ or/and power supply 48V DC 2480 South 3850 West, Suite B , Salt Lake City, UT 84120 (866) 975-0101 •...
- Page 6 VPS - VIDEO PANEL SYSTEM 2. Installation instructions 2.1. Wall-mounted installation Step 1 - Remove the bottom screw as Step 2 - Lift the back cover from the video panel. shown below Step 3 - Separate the back cover Step 4 - Apply the waterproof gasket to the rear of the back cover.
- Page 7 VPS - VIDEO PANEL SYSTEM 2.2. Flush-mounted. 1.8 in 4.3 in 4.6 in 1.25 in 1.41 in Step 1 - Stick the gasket to the rear of the unit, (to prevent water from entering). Step 2 2480 South 3850 West, Suite B , Salt Lake City, UT 84120 (866) 975-0101 •...
- Page 8 5 feet above the ground. 3. Setup a new device The PAL Video Panel System can be set up by going through the PalGate application or by using the WEB portal. 3.1. New device setup via the PalGate application You may download our App from either the Apple App Store or from Google Play by searching for the name “PalGate”.
- Page 9 VPS - VIDEO PANEL SYSTEM Step 1 - Launch the app and tap on Step 2 - Press on 'Add New Device . the three horizontal lines located at the top-left corner of the screen. Step 3 - Press on the camera Step 4 - Scan the QR code icon located at the top-right displayed on the VPS screen.
- Page 10 VPS - VIDEO PANEL SYSTEM 3.2. New device Setup via the PAL Portal Step 1 - Sign into the PAL Portal and you will see the homepage. Click on “Devices” and on the + button to add a new device.
- Page 11 VPS - VIDEO PANEL SYSTEM Step 4 - Next you will enter the address of the new device. This can be as simple as a city and state or can be an exact street address. The account administrator will select the name of the device and Output 1 is the name identifying the device the VPS unit will be controlling.
- Page 12 VPS - VIDEO PANEL SYSTEM 4. VPS Main Screen Main Screen On the main screen, you can find: CALL BUTTON: There are two ways to call: Enter the apartment number and press Custom the green phone icon, it will place a call Title Bar to all residents of that apartment.
- Page 13 In addition, the system's performance is dependent on the existence of coverage by the cellular network. Pal Electronics Systems Ltd. is not responsible for a non-functioning cellular network. The customer is responsible for ensuring that there is adequate 4G cellular network reception prior to installation.
