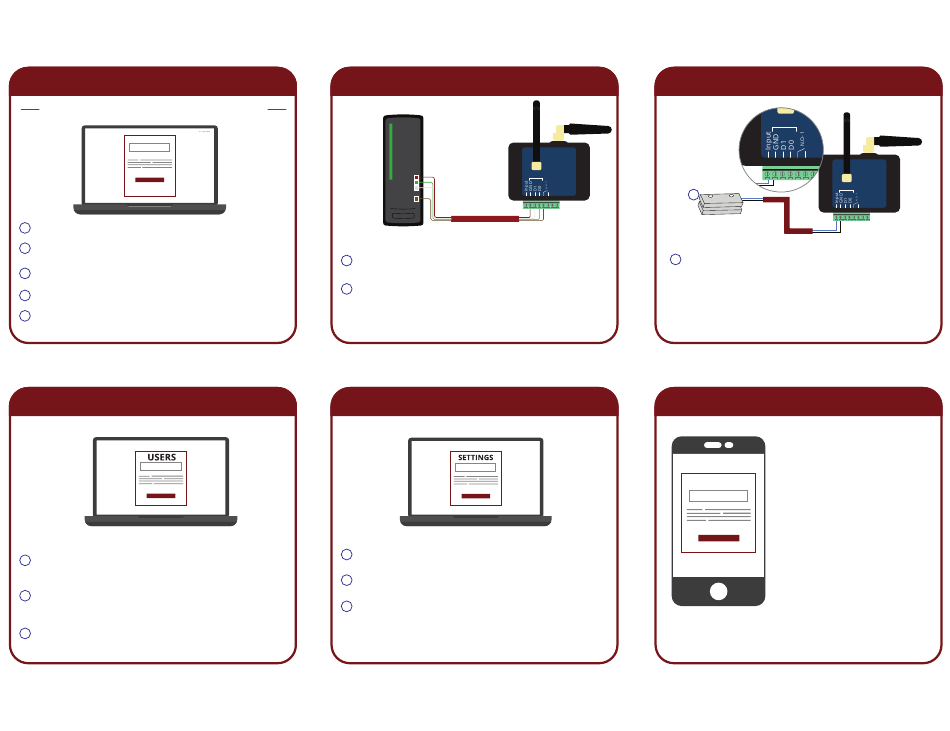

Transmitter Solutions PAL Quick Start Manual

5. PAL Registration

THE PAL CONTROLLER MUST BE REGISTERED THROUGH THE
ONLINE WEB PORTAL BEFORE USING THE PHONE APP.
Request web portal login information.
A
Login to your account at portal.pal-es.com select devices on the left
B
hand side and click add on the top right hand corner.
Enter the serial number and code found on the back of the PAL unit.
C
Click Save.
You can now select the device for configuration and management.
D
For more detailed management and configuration instructions please
E
refer to the PAL full web portal user manual.
https://transmittersolutions.com/wp-content/uploads/2019/04/PAL-web-usermanualENG-v1.pdf
WEB PORTAL USER MANUAL

8. Adding Users

From the Home screen go to devices. Select the device you wish to add users
A to. Once in the device main menu select users. (for sites with multiple PAL units
installed please call technical support 866-975-0101 or refer to complete
manual)
Once in users click "add" in the top right hand corner. (You can also import
B complete databases, please call technical support or see full instruction manual
for detailed instructions on this)
Once you have clicked "add" you will enter the main user screen. Fill out the
necessary information and click save. Note: If you enter a phone number the
C
user can download the "Palgate" phone application and will be able to trigger
the gate or door from their phone. Leaving the phone number section blank
will not allow the user to have app control of the PAL unit.

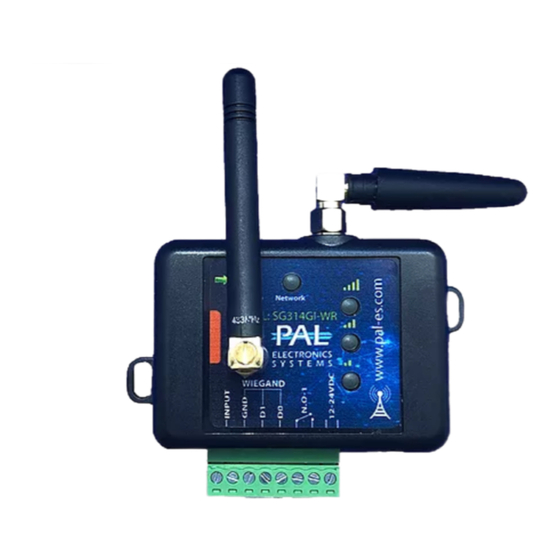

6. Wiegand Connection

GND
D0
D1
LED
When wiring in a wiegand device to the PAL controller, use DO, D1, and
A
wiegand GND from the wiegand device to the PAL controller.
B When wiring card reader LED to correspond with relay, wire to N.O.-1.

9. PAL Settings

A
General – Allows you to configure the relay output hold time.
Timer Events – Allows for setting a 7-day automatic unlock/open,
B
lock/close schedule.
Time Groups – Allows for creating groups to restrict Wiegand and
C
phone application access to the PAL controller.

7. Input Door or Gate Position Connector

WIEGAND
A
Door Monitor /
Gate Monitor
A Door or Gate Position switch - Mount this on the door frame or on
the gate in the desired location with the wire running to the input on
the PAL controller, like shown above. When using two door or gate
position sensors for double doors wire them in series with one leg of
each switch running back to the controller for connection.
CREDENTIALS
WIEGAND
WIEGAND

Virtual Credentials

The Pal controller allows for Wiegand and
mobile credentials through the PAL app.
