Transmitter Solutions EIS-40 User Manual

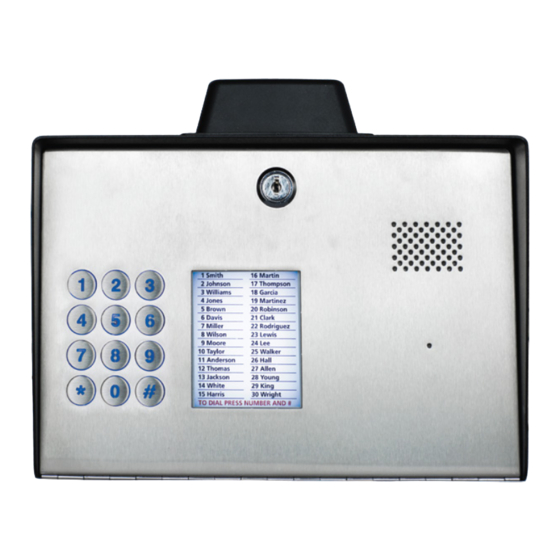

Door entry unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

: DOOR ENTRY UNIT
E I S - 4 0
Programming Software

USER MANUAL

v.1.4.20161115

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EIS-40 and is the answer not in the manual?

Questions and answers

Related Manuals for Transmitter Solutions EIS-40

Summary of Contents for Transmitter Solutions EIS-40

  • Page 1: User Manual

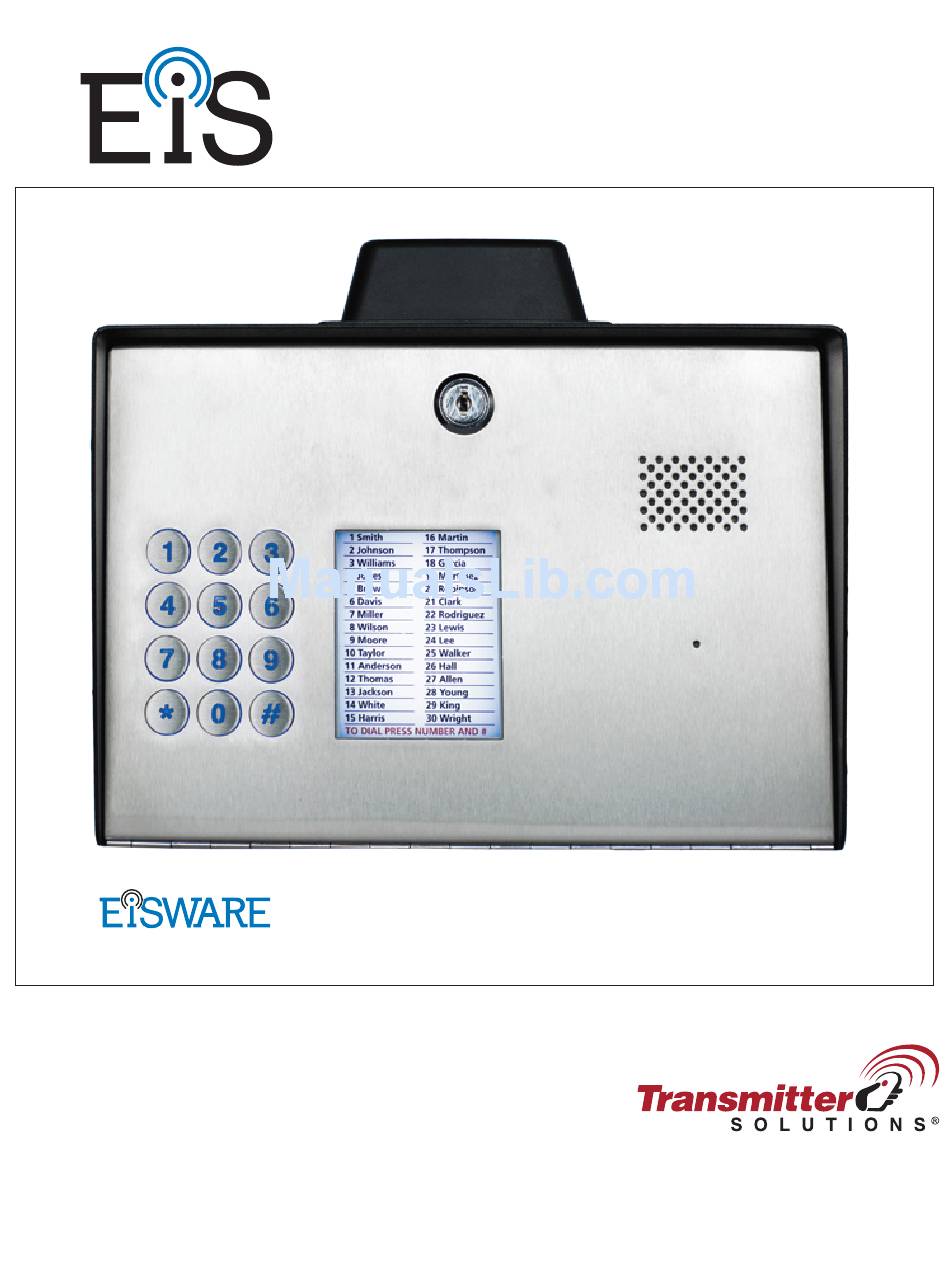

    : DOOR ENTRY UNIT E I S - 4 0 Programming Software USER MANUAL v.1.4.20161115...
  • Page 2 EIS-LCD, EIS-40 USER MANUAL Page 1...

  • Page 3: Table Of Contents

    EIS-LCD, EIS-40 USER MANUAL Contents FOR YOUR SAFETY..............................4 INTRODUCTION ............................... 5 EIS-LCD, EIS-40 FEATURES and APPLICATIONS.................... 6 START UP ................................... 7 LED INDICATION..............................8 CONNECTION DIAGRAM ............................9 EIS MANAGEMENT ............................... 10 EIS FUNCTIONs with PROGRAMMING INSTRUCTIONs................11 WEB SERVER - LOG IN ............................... 11 WEB SERVER –...
  • Page 4 EIS-LCD, EIS-40 USER MANUAL Figures Figure 1: EIS Connection diagram.......................9 Figure 2: WEB Server-Sign In page....................11 Figure 3: WEB Server-Main page select ADD mode................12 Figure 4: WEB Server-Main page adding EIS units................13 Figure 5: WEB Server-Unit management window................14 Figure 6: WEB Server-Intercom settings...................15 Figure 7: WEB Server-Keypad PIN Access: Permanent PIN codes.

  • Page 5: For Your Safety

    EIS-LCD, EIS-40 USER MANUAL FOR YOUR SAFETY SWITCH ON SAFELY Do not switch the unit on when use of wireless phone is prohibited or when it may cause interference or danger. INTERFERENCE All wireless phones and units may be susceptible to interference, which could affect performance.

  • Page 6: Introduction

    USER MANUAL INTRODUCTION EIS-LCD, EIS-40 (EIS) is a simple but powerful GSM intercom communication system designed to ensure low-cost, simple to install/use, reliable and single box solution for intercom application. It is designed for unlimited range, wire free GSM intercom, pin code access, caller ID control and Wiegand access support.

  • Page 7: Eis-Lcd, Eis-40 Features And Applications

    ⇒ Programming by WEB server Applications: ⇒ Single box, wire free intercom solution ⇒ Remote gate opener – Caller ID number recognition ⇒ Simple (Wiegand) access system Major difference between EIS-LCD and EIS-40 is absence of LCD IMPORTANT screen in EIS-40 unit Page 6...

  • Page 8: Start Up

    EIS-LCD, EIS-40 USER MANUAL START UP unit accepts standard (T-Mobile AT&T) card from any network. VERY USE A MICRO SIM CARD IMPORTANT DO NOT Insert or remove the SIM card while the unit is powered ON!! WARNING Before inserting SIM card to unit make sure the PIN code is...

  • Page 9: Led Indication

    EIS-LCD, EIS-40 USER MANUAL LED INDICATION Blue LED (LED1) Indicates the level of the GSM signal from 1 to 5 LED flashes (1 is weak signal, 5 is excellent signal) Red LED (LED2) GSM module Activity Yellow LED (LED3) Short flashing indicates that the GSM module is ON, but it is not yet connected on the GSM network.

  • Page 10: Connection Diagram

    EIS-LCD, EIS-40 USER MANUAL CONNECTION DIAGRAM Before connection the EIS please take a look at connection diagram. Figure 1: EIS Connection diagram. DO NOT USE Power out (12V AUX) for electric lock driving! Use IMPORTANT separate power source for door electric lock!

  • Page 11: Eis Management

    EIS-LCD, EIS-40 USER MANUAL EIS MANAGEMENT Unit supports different types of management (programming): ⇒ Unit can be programmed directly by USB connection, with the use of configuration software running on PC (EIS Ware). ⇒ Unit can be programmed remotely by using WEB server access.

  • Page 12: Eis Functions With Programming Instructions

    EIS-LCD, EIS-40 USER MANUAL EIS FUNCTIONs with PROGRAMMING INSTRUCTIONs As mentioned in previous chapters EIS unit can be programmed in various ways, this document will focus on most common programming way: WEB programming. SIM card in the EIS unit MUST have DATA PLAN to be able to use WEB...

  • Page 13: Web Server - Adding Units To User Profile

    EIS-LCD, EIS-40 USER MANUAL 8.2 WEB SERVER – ADDING UNITS TO USER PROFILE After login the user will be diverted to WEB server main window. This page is used to add/remove/search for EIS units from the user’s profile. Select “+” sign to select ADD EIS units to user’s profile.

  • Page 14: Figure 4: Web Server-Main Page Adding Eis Units

    EIS-LCD, EIS-40 USER MANUAL Figure 4: WEB Server-Main page adding EIS units User than provides required data: • Name: Name for the added unit - mandatory information. • IMEI: Identification number of the unit, can be found in the enclosure of the unit - mandatory information.

  • Page 15: Web Server-Unit Management

    EIS-LCD, EIS-40 USER MANUAL 8.3 WEB SERVER-UNIT MANAGEMENT After the EIS unit is added to user database, the user can change the configuration of the specific unit. All changes made by the user are listed in the Change Log window. By clicking Send to device button ALL changes are send to the unit.

  • Page 16: Intercom Configuration

    EIS-LCD, EIS-40 USER MANUAL 8.4 INTERCOM CONFIGURATION Primary function of the EIS unit is intercom support for multi-apartment use. Selecting (calling) apartment number is achieved on two ways entering apartment number on the keypad and pressing # at the end. Selecting appropriate name with UP/DOWN arrows beside the LCD and press the CALL button Either of the actions will start a voice call procedure to Phone number 1 and Phone number 2.
  • Page 17 EIS-LCD, EIS-40 USER MANUAL • Driver output: The output that will be triggered if the user with Phone number 1 or Phone number 2 will call the unit (Caller Id function) • Delay between calls: Ring time (in seconds) for Phone number 1 and Phone number 2.

  • Page 18: Keypad Pin Entry - Access

    EIS-LCD, EIS-40 USER MANUAL 8.5 KEYPAD PIN ENTRY – ACCESS Secondary use of on-board keypad is access by entering PIN codes. Pin codes must be at least 4 digits. Pin codes can be defined in two sections. First section is permanent pin code and second is temporary pin codes, which are limited by the consecutive time they are entered.

  • Page 19: Figure 8: Web Server-Keypad Pin Access: Temporary Pin Codes

    EIS-LCD, EIS-40 USER MANUAL Temporary pin codes are placed in Temporary pin access tab. Figure 8: WEB Server-Keypad PIN Access: Temporary PIN codes • Temp PIN codes activate output: Selecting the output that will be triggered in case of correct SPIN code.

  • Page 20: Wiegand Access

    EIS-LCD, EIS-40 USER MANUAL 8.6 WIEGAND ACCESS EIS unit has onboard support for 2 Wiegand output based device. With the use of external replicator more Wiegand devices can be connected to the unit. Configuration of first Wiegand interface is found in Digital interface tab. First Wiegand interface can be found on board with a dedicated Wiegand connector and cables.

  • Page 21: Figure 10: Web Server-Wiegand Interface Support

    EIS-LCD, EIS-40 USER MANUAL Second Wiegand interface is shared with alarm input lines, user must select Wiegand in Input operation mode found in the Inputs tab. Additional settings for Wiegand interface input are found in Wiegand input 2 configuration sections. Figure 10: WEB Server-Wiegand interface support.

  • Page 22: Figure 11: Web Server-Adding Wiegand Devices With Permanent Use

    EIS-LCD, EIS-40 USER MANUAL Figure 11: WEB Server-Adding Wiegand devices with permanent use. • PIN entry: For each PIN entry user need to select PIN code value and optional User name. Temporary pin codes are placed in Temporary pin access tab. Figure 12: WEB Server-Adding Wiegand devices with temporary use.

  • Page 23: Caller Id Access

    EIS-LCD, EIS-40 USER MANUAL 8.7 CALLER ID ACCESS Caller ID access is a very simple way to control relay output defined in Caller ID output setting. User will by calling in the EIS unit trigger defined output. Settings for this function are found in the Caller id # tab.

  • Page 24: Outputs Settings

    EIS-LCD, EIS-40 USER MANUAL 8.8 OUTPUTS SETTINGS The behavior on the outputs is defined in the Output tab. Figure 14: WEB Server-Output setting Output 1- Settings for output 1: • Output (relay) mode: User can select between 3 options Disable-Output is disabled Latching-Output is in latching mode.
  • Page 25 EIS-LCD, EIS-40 USER MANUAL Output 2 - Settings for output 2: • Output (relay) mode: User can select between 3 options Disable-Output is disabled Latching-Output is in latching mode. First Caller ID or PIN entry will activate the output, second Caller ID or PIN entry will deactive the output.

  • Page 26: Eis Wiegand Output Integration

    EIS-LCD, EIS-40 USER MANUAL 8.9 EIS WIEGAND OUTPUT INTEGRATION EIS unit can be integrated into a bigger access system using a Wiegand interface. In this case numbers calling the unit will be transferred, over Wiegand interface, to access system. Figure 15: WEB Server-Wiegand Output settings.

  • Page 27: Timer-Timed Controled Output

    EIS-LCD, EIS-40 USER MANUAL 8.10 TIMER-TIMED CONTROLED OUTPUT EIS unit features 2 timers that can be used to control the outputs on the unit. Timers can run in day or week mode depending on the selected setting. For each timer user can select which output it will control.
  • Page 28 EIS-LCD, EIS-40 USER MANUAL User can select two different modes how the outputs are managed: 1. Slave mode: the behavior of the outputs (Time pulse or Latching mode) is defined in the Output tab. 2. Master mode: when the output is driven by the timer (output is activated by the timer) the outputs are in latching mode regardless of the setting in Output tab.

  • Page 29: Service Button

    EIS-LCD, EIS-40 USER MANUAL 8.11 SERVICE BUTTON Service button is a dedicated button that is used to directly call numbers or directly trigger defined output on the EIS unit. In case of Call mode is selected in the Service button mode, unit will call number defined. If needed it is possible to define work hour schedule.

  • Page 30: Figure 19: Web Server-Service Button Settings (Direct Access)

    EIS-LCD, EIS-40 USER MANUAL In case of Direct access mode is selected in the Service button mode, service button press will activate output defined. Figure 19: WEB Server-Service button settings (Direct access). Direct access settings • Select output: The output that will be triggered if service button is pressed •...

  • Page 31: Administration

    EIS-LCD, EIS-40 USER MANUAL 8.12 ADMINISTRATION Administration tab allows user to enable advanced settings like notification of unauthorized access, periodic test messages, lock down of the unit… Figure 20: WEB Server-Notification numbers. • Phone number, User name: Phone number and user name of the user that will be receiving notification messages.

  • Page 32: Event Loging

    EIS-LCD, EIS-40 USER MANUAL • Unauthorized call: In case of unauthorized call the unit can notify user. To enable notification SMS tick the check box in corresponding position. • Administration allowed to remote program by SMS: By selection this option the user can “Lock down”...

  • Page 33: Miscellaneous

    EIS-LCD, EIS-40 USER MANUAL 8.14 MISCELLANEOUS This tab is split into 2 sections. Figure 23: WEB Server-Misc. General settings can be found: • SMS text Language: define the language of the SMS information send out. User can select appropriate language in drop-down menu.

  • Page 34: Pin Access Notification Function

    EIS-LCD, EIS-40 USER MANUAL 8.15 PIN ACCESS NOTIFICATION FUNCTION This function is used to notify administrator when a selected pin code is being used. Notification is done by SMS send to the selected administrator numbers. Global enabling of the notification function is done in 2. steps.

  • Page 35: Figure 25: Web Server-Selecting Administrator Numbers For Notification

    EIS-LCD, EIS-40 USER MANUAL The last step is selecting a number that will be receiving the notification SMS. Selecting is done in the Administration tab. In the Notify PIN column put a tick in the check box for the appropriate phone number, multiple choices are possible.

  • Page 36: Sms Commands

    EIS-LCD, EIS-40 USER MANUAL SMS Commands Basic SMS commands for unit listed. 9.1 INTERCOM SETTINGS Settings of the call group x is number of the call groups (1 to 200/500/1000). ⇒ ;KPAx=number 1; – First number on the list ⇒ ;KPBx=number 2;...

  • Page 37: Pin Codes Settings

    EIS-LCD, EIS-40 USER MANUAL 9.3 PIN CODES SETTINGS Setting pin codes: Selecting notification function for pin codes ⇒ ;NOTF=0; – Disable notification function ⇒ ;NOTF=1; – Enable notification function If notification is enable 2 further steps need to be taken Definition of administrator numbers x is number of telephone numbers that can receive notification SMS (1 to 5).

  • Page 38: Advanced Functions

    A short manual addressing advanced function to be found on different EIS units. 10.1 WIEGAND INPUT DATA FORMATS Units addressed: EIS-1, EIS-2, EIS-4, EIS-R, EIS-LCD, EIS-40 EIS units support standard Wiegand interface, it will work with Wiegand 26bit and Wiegand 30bit protocol.

  • Page 39: Wiegand 26 Bit, Different Data Formats

    EIS-LCD, EIS-40 USER MANUAL 10.2 WIEGAND 26 BIT, DIFFERENT DATA FORMATS Possible data format: Mode 0: All 24bit of data are used a decimal representation, no option for facility code Parity Parity 24Bit card number Limits Card Number 0 - 16777215 Facility Number None Table 1: Wiegand 26: Mode 0.

  • Page 40: Wiegand 30 Bit, Different Data Formats

    EIS-LCD, EIS-40 USER MANUAL 10.3 WIEGAND 30 BIT, DIFFERENT DATA FORMATS Possible data format: Mode 0: All 30bit of data are used a decimal representation, no option for facility code Parity 28Bit card number Parity Limits Card Number 0 - 268435455 Facility Number None Table 5: Wiegand 30: Mode 0.

  • Page 41: Alarm Inputs

    USER MANUAL 10.4 ALARM INPUTS Units addressed: -EIS-1, EIS-2, EIS-4, EIS-R, EIS-LCD, EIS-40 EIS units can be used for notification purposes if additional sensors are connected to the alarm inputs of the unit. Active status on the sensor will result in notification SMS send to the numbers defined.

  • Page 42: Figure 29: Alarm Inputs: Inputs Tab Configuration

    EIS-LCD, EIS-40 USER MANUAL Figure 29: Alarm inputs: Inputs tab configuration. • Input operation mode: Alarm inputs and 2. Wiegand interface lines are multiplex, to use it alarm input mode, select Normal setting. • Input 1 mode: User can select between different options of the input sensor configuration.

  • Page 43: Figure 30: Alarm Inputs: Administration Tab Configuration

    EIS-LCD, EIS-40 USER MANUAL Figure 30: Alarm inputs: Administration tab configuration. • Phone number, User name: Phone number and user name of the user that will be receiving notification messages. • Input1, Input2: If alarm condition is meet, users with check boxes will receive alarm notification SMS.
