Transmitter Solutions TS-NX/CL Installation Manual

Gsm door entry unit w/codelock
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

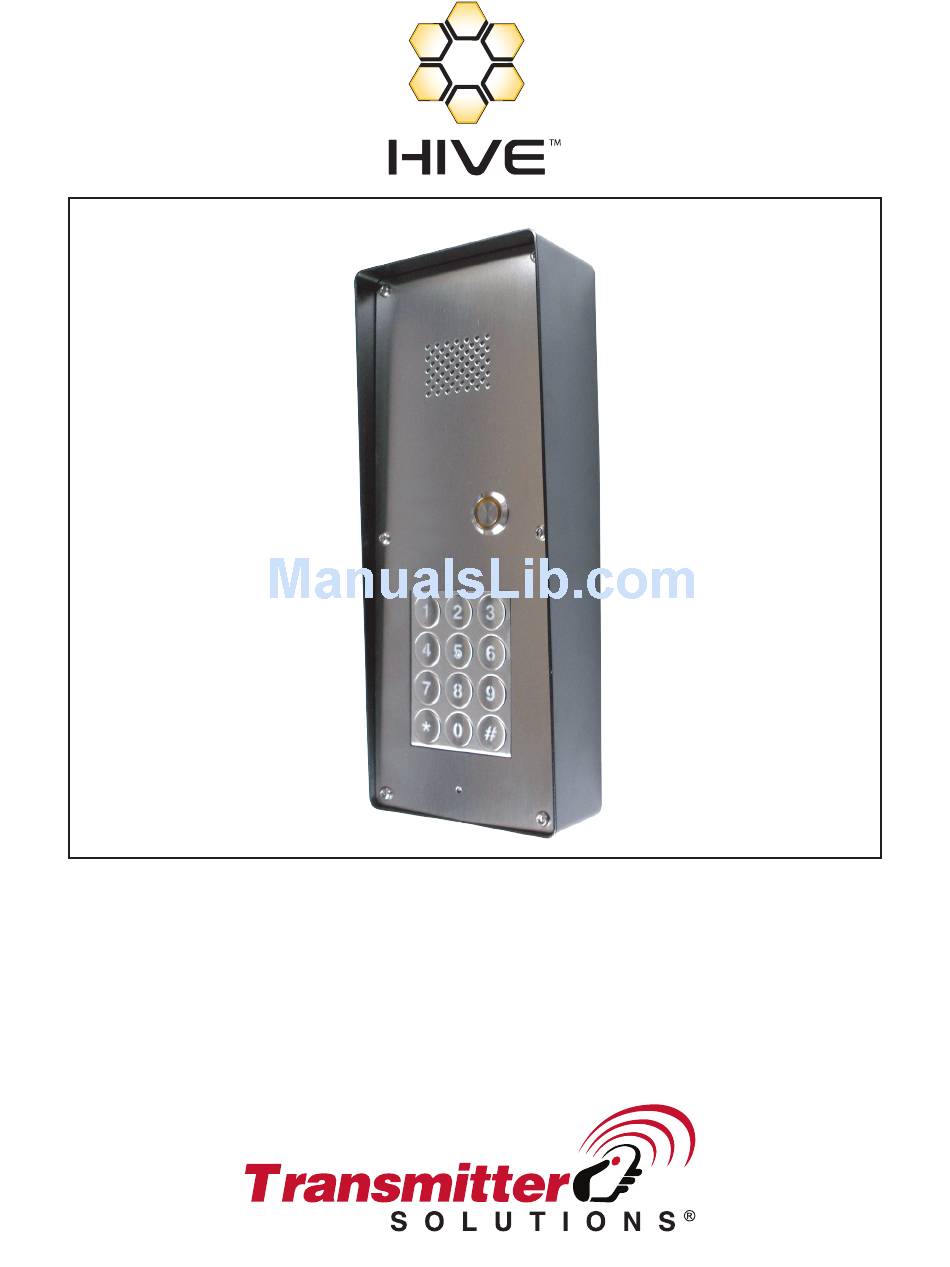

TS-NX/CL: GSM DOOR
ENTRY UNIT W/CODELOCK
Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS-NX/CL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transmitter Solutions TS-NX/CL

Summary of Contents for Transmitter Solutions TS-NX/CL

  • Page 1 TS-NX/CL: GSM DOOR ENTRY UNIT W/CODELOCK Installation Manual...

  • Page 3: Table Of Contents

    CLEAR ALL PROGRAMMED DATA FROM SIM ............. 11   CONNECTION DIAGRAM ................. 12       PROGRAMMING TS-NX/CL ................14     THE TS-NX/CL PARAMETERS ................. 15     ALARM SUPPORT ..........................15     OUTPUT MANAGEMENT ........................19    ...
  • Page 4     10.22 RECEIVE TS-NX/CL LOG........................45     CHANGING PARAMETERS USING THE SMS COMMANDS ........46     DEFAULT SETTINGS ON TS-NX/CL ..............48   PARAMETERS PRINT-OUT COMMANDS ............. 51       TECHNICAL SPECIFICATIONS ................52    ...
  • Page 5 TS-­‐NX/CL   INSTALLATION   M ANUAL     Figures Figure 1: TS-NX/CL Connection diagram..............12   Figure 2: Input Connection diagram...............15   Figure 3: Output Connection diagram ..............20   Page   4  ...
  • Page 6 Table 23: LOG parameters example...............39   Table 24: SMS commands..................40   Table 25: SMS commands example................40   Table 26: TS-NX/CL default settings..............50   Table 27: TS-NX/CL parameters print out commands...........51   Page   5  ...

  • Page 7: For Your Safety

    TS-­‐NX/CL   INSTALLATION   M ANUAL     1 FOR YOUR SAFETY Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for further information. SWITCH ON SAFELY Do not switch the unit on when use of wireless phone is prohibited or when it may cause interference or danger.

  • Page 8: Introduction

    ANUAL     2 INTRODUCTION TS-NX/CL is a simple GSM intercom communication system that is designed to ensure low-cost, reliable and single box solution for intercom application. It is designed for unlimited range, wire free GSM intercom and CLIP support.

  • Page 9: Features And Applications

    TS-­‐NX/CL   INSTALLATION   M ANUAL     3 FEATURES AND APPLICATIONS Features: ⇒ Built-in 4 band GSM module ⇒ Up-to 8 buttons call support ⇒ 2 alarm inputs, 2 additional on extension connector ⇒ 2 outputs (relay supported) ⇒ Up to 100 telephone numbers for CLIP support ⇒...

  • Page 10: Start Up

    USE A TYPICAL SIM CARD (mini-SIM, see the picture ) WITH MEMORY FOR UP TO 250 CONTACTS! IMPORTANT ⇒ Insert SIM card to be used for TS-NX/CL in your personal mobile phone. IMPORTANT ERASE THE PIN CODE! ⇒ Insert SIM card in TS-NX/CL device. The unit must be switched OFF when you insert the SIM! ⇒...

  • Page 11: Led Display

    TS-­‐NX/CL   INSTALLATION   M ANUAL     LED DISPLAY GREEN LED (LED1) Indicates the level of the GSM signal from 1 to 5 LED flashes (1 is weak signal, 5 is excellent signal) Red LED (LED2) When LED 2 is ON the unit has a problem with a GSM network connection or the GSM part of the unit is out of order.

  • Page 12: Clear All Programmed Data From Sim

    This is highly recommended when a SIM card you are going to use for the TS- NX/CL is not new and it already has some data stored in the phone book memory. By sending this SMS to TS-NX/CL all programmed parameters and numbers are cleared: ;SDCLR;...

  • Page 13: Connection Diagram

    TS-­‐NX/CL   INSTALLATION   M ANUAL     7 CONNECTION DIAGRAM Before connection the TS-NX/CL please take a look at connection diagram. Figure 1: TS-NX/CL Connection diagram Page   1 2  ...
  • Page 14 TS-­‐NX/CL   INSTALLATION   M ANUAL     Page   1 3  ...

  • Page 15: Programming Ts-Nx/Cl

    8 PROGRAMMING TS-NX/CL TS-NX/CL device supports different types of programming: ⇒ To program TS-NX/CL parameters put the SIM card into your personal GSM phone. Add programming parameters in SIM Card “Phone Book”. ⇒ You can program TS-NX/CL remotely by SMS command.

  • Page 16: The Ts-Nx/Cl Parameters

    INSTALLATION   M ANUAL     9 THE TS-NX/CL PARAMETERS To support versatile functionality of TS-NX/CL different parameters are used. The parameters are divided in logical sections and are described in the following chapters. 9.1 ALARM SUPPORT Alarm reporting is supported by group of different parameters. First section is used to define the relations needed for alarm to be trigged.

  • Page 17: Table 1: In, Id And Dd Parameters

    Time delay for alarm reporting on input 3 Time delay for alarm reporting on input 4 Table 1: IN, ID and DD parameters Example: ♦ Direct programming on the SIM card TS-NX/CL PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description...

  • Page 18: Table 2: In, Id, Dd Parameters Example

    9.1.2.1 TN parameter Telephone numbers for remote alarm reporting are listed as TN parameters. Remote alarm reporting on TS-NX/CL is done via SMS messages. 9.1.2.2 LN parameter This parameter is used to link alarm event from inputs or any other source to the telephone numbers from TN list.

  • Page 19: Table 3: Remote Alarm Reporting Parameters

    Log status. No. linking (TN1 – TN5) Time out for GSM connection. Table 3: Remote alarm reporting parameters When telephone number (calling or messaging TS-NX/CL) is not on the NOTE CLIP list, not acknowledge event occurs (NAC). The telephone number responsible for this event can be send to TN user for notification.

  • Page 20: Output Management

    ;TN1=042376678;LN1=13;LN2=1234;LN7=1;LOT=60; 9.1.3 CONTROLING OUTPUTS WITH DTMF TS-NX/CL can control the outputs with the use of DTMF. This is very useful function in the intercom application. To control the outputs the user must press the combination of 2 digits. First digit is used to select the output (1 to 2), the second digit is used to activate (1) or deactivate (0) the output.

  • Page 21: Figure 3: Output Connection Diagram

    TS-­‐NX/CL   INSTALLATION   M ANUAL     9.2.1 OS parameter TS-NX/CL device has 2 dedicated relay supported outputs. Outputs can be configured to different behavior: ⇒ OS = 0 – Disabled ⇒ OS = 1 – Bi-stable toggle mode ⇒...

  • Page 22: Security Level - Sl

    SL parameter from 0 to 5 defines which telephone number stored in the phone book from TN1 – TN5 can enter into programming and remote control of the TS- NX/CL (dialing the TS-NX/CL phone number or sending the SMS). Page   2 1  ...

  • Page 23: Table 8: Sl Parameter

    INSTALLATION   M ANUAL     NOTE When the SL level is 0, an access to the TS-NX/CL is possible from any phone! Before any SL number is programmed the TS-NX/CL can accept IMPORTANT ALL CALLS. Remote SMS programming and remote controlling is...

  • Page 24: Prepaid Card Credit And Validity Information

      9.4 PREPAID CARD CREDIT AND VALIDITY INFORMATION TS-NX/CL can be used with prepaid SIM cards and its limitations. To be able to overcome this limitation of the prepaid SIM cards, TS-NX/CL offers the possibility of automatic checking mechanism for credit and time expiration.

  • Page 25: Table 10: Prepaid Card Validity Parameters

    String for parsing replay message from CC2 number CTIM String for parsing replay message from CC3 number Table 10: Prepaid card validity parameters Example: ♦ Direct programming on the SIM card TS-NX/CL PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description *448#...
  • Page 26 TS-­‐NX/CL   INSTALLATION   M ANUAL     Page   2 5  ...

  • Page 27: Set-Up Parameters

    Different parameters are used to support versatile functionality of TS-NX/CL. 9.5.1 HTN parameter Hidden telephone number is a parameter used in order to conceal the telephone number of the TS-NX/CL device. The default value is set to “1” which means that the number is displayed. 9.5.2 ESC parameter Parameter is used to define the input used to cancle the outgoing call from the TS-NX/CL device.
  • Page 28 TS-­‐NX/CL   INSTALLATION   M ANUAL     9.5.6 TSTT parameter TSTT parameter is used to define reference point for sending test message. If this parameter is set than after restart of the ZEUS4-MC first test SMS will be send out at time defined with TSTT parameter.
  • Page 29 MUT parameter enables you mutate the speaker sound while initiating voice connection. 9.5.11 ARST parameter ARST parameter defines periodic of auto restart time (in hours) of the TS-NX/CL device. 9.5.12 ADF parameter Parameter is used to define voice refresh function, to prevent blocking of SIM in some networks.

  • Page 30: Table 12: Set-Up Parameters

    ♦ Direct programming on the SIM card TS-NX/CL PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description Hidden telephone number of the TS-NX/CL device 29340 Manual fixing of the GSM provider (Simobil) Switch on Italian language Microphone volume level Speaker volume level...

  • Page 31: Table 13: Set-Up Parameters Example

    TS-­‐NX/CL   INSTALLATION   M ANUAL     Table 13: Set-up parameters example. ♦ Remote programming by SMS ;HTN=0;MFN=29340;LNG=1;MIC=2;SPK=20;TST=24; BUZ=0;ESC=2; Page   3 0  ...

  • Page 32: Sms Messages Editor

    Input 2, second part of message Input 3, second part of message Input 4, second part of message Table 14: Message parameters. Example: ♦ Direct programming on the SIM card TS-NX/CL PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description Page   3 1  ...

  • Page 33: Intercom

    TS-NX/CL device calls the next number in XTN1-XTN5 call list. 9.7.3 DTMF auto dial functionality This function is used to provide a support for TS-NX/CL device to be able select extended numbers via DTMF command. Page   3 2  ...
  • Page 34 TS-­‐NX/CL   INSTALLATION   M ANUAL     9.7.3.1 SDNx parameter Parameter is used to set the DTMF number in auto self-select function. 9.7.3.2 SDDx parameter Parameter is used to set the delay (in sec.) for sending DTMF number in auto self- select function.

  • Page 35: Direct Access By Entering Pin Code

    TZSB Button 2, time zone start period. TZEB Button 2, time zone end period. Table 16: Intercom parameters. Example: ♦ Direct programming on the SIM card TS-NX/CL PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description ATN1 040713470 Button 1, Telephone number 1.

  • Page 36: Clip

    TS-­‐NX/CL   INSTALLATION   M ANUAL     PIN8 Pin code 8. PIN9 Pin code 9. PIN10 Pin code 10. PIN11 Pin code 11. PIN12 Pin code 12. PIN13 Pin code 13. PIN14 Pin code 14. PIN15 Pin code 15. PIN16 Pin code 16.

  • Page 37: Table 20: Clip Parameters

    CLPOU Control output pin when CLIP event CLPI CLIP input activation condition CLP1 CLIP number 1 CLP100 CLIP number 100 Table 20: CLIP parameters. Example: ♦ Direct programming on the SIM card TS-NX/CL PROGRAMMING TABLE Page   3 6  ...

  • Page 38: Table 21: Clip Parameters Example

    TS-­‐NX/CL   INSTALLATION   M ANUAL     SIM CARD PHONE BOOK Name Number Description CLPEN Enable CLIP functionality CLPOU CLIP control output 2 CLPI No input activation condition CLP1 040414414 CLIP number 1 CLP2 042340880 CLIP number 2 Table 21: CLIP parameters example. ♦...

  • Page 39: Event Loging

    Parameter is used for defining the number of events printed out on PLOG request. 9.10.2 LOGI parameter Parameter is used to define the media used for logging of events on TS-NX/CL. User can select between nonvolatile memory on TS-NX/CL or select USB to transfer events directly via USB to PC.

  • Page 40: Special Sms Commands

    9.11 SPECIAL SMS COMMANDS These commands can only be issued only over SMS message, and are used to control some special functions of TS-NX/CL device. 9.11.1 ORC command Command is used to control outputs directly via SMS message 9.11.2 SDCLR command To clear all data on SIM card SDCLR command is used.

  • Page 41: Table 24: Sms Commands

    9.11.4 CLPCLR command Command is used to delete all CLP numbers. 9.11.5 MRES command Command is used to manually restart GSM module on TS-NX/CL device. 9.11.6 SSRES command Command is used to manually restart TS-NX/CL device. 9.11.7 Table of parameters...

  • Page 42: Print-Out Of The Parameters

    By sending this command to TS-NX/CL you receive SMS messages with signal quality TS-NX/CL device is connected to network: ;PSQ; 10.4 RECEIVE TELEPHONE NUMBERS (PTN) By sending this command to TS-NX/CL you receive SMS message with all currently programmed telephone numbers (TN1 – TN5): ;PTN; 10.5 RECEIVE LINKS (PLN) By sending this command to TS-NX/CL you receive SMS message with all currently programmed links (LN1 –LN8):...

  • Page 43: Receive Input Parameters (Pin)

    INSTALLATION   M ANUAL     10.6 RECEIVE INPUT PARAMETERS (PIN) By sending this command to TS-NX/CL you receive SMS message with all currently programmed Input parameters (IN1 – IN4): ;PIN; 10.7 RECEIVE INPUT FILTER VALUE (PID) By sending this command to TS-NX/CL you receive SMS message with all currently programmed Input filters (ID1 –...

  • Page 44: Receive All Programmed Sms Messages (P#)

    ANUAL     10.12 RECEIVE ALL PROGRAMMED SMS MESSAGES (P#) By sending this command to TS-NX/CL you receive SMS message with all currently programmed alarm SMS messages (#0 - #4): ;P#; 10.13 RECEIVE SET UP PARAMETERS VALUE (PPA) By sending this command to TS-NX/CL you receive SMS message with all currently programmed Setup parameters (TST, MNF…):...

  • Page 45: Receive Intercom Button 1 Paramaters (Pdea)

    10.20 MANUAL GSM MODULE RETARD (MRES) By sending this command to TS-NX/CL shuts down GSM module and after a few second it switches the power of the GSM module ON again. The unit reboots all parameters from the SIM card.

  • Page 46: Receive Status Of Inputs (Ins)

    ;INS; 10.22 RECEIVE TS-NX/CL LOG By sending this command to TS-NX/CL you receive SMS message with log on TS- NX/CL device. ;PLOG; User can use ;PLOG=x,y; to define the number of logs to be printed. x = start event...

  • Page 47: Changing Parameters Using The Sms Commands

    ;PTN; Return SMS is (example): ;TN1=0;TN2=0; If you would like to enter telephone numbers in to TS-NX/CL you can use the following example: ;TN1=040713470;TN2=+38643364850; If you would like to receive confirmation SMS write “+” before SMS command: ;+TN1=040713470;TN2=+38643364850;...
  • Page 48   Send SMS message to TS-NX/CL telephone number and in a few seconds you receive SMS message from TS-NX/CL. The sentence of the SMS must be the same as the one you have sent to TS-NX/CL before. Page   4 7  ...

  • Page 49: Default Settings On Ts-Nx/Cl

    TS-­‐NX/CL   INSTALLATION   M ANUAL     12 DEFAULT SETTINGS ON TS-NX/CL TS-NX/CL PROGRAMMING TABLE Name Default Value Short Description Empty Telephone number 1 Empty Telephone number 1 Empty Telephone number 2 Empty Telephone number 3 Empty Telephone number 4...
  • Page 50 Empty Check credit, TIM Italy Empty Check credit, Vodafone Italy Input used as cancel button Empty Tel. number of TS-NX/CL device Hidden telephone number Auto answer ring number SIM card time validity Periodic test SMS timeout TSTT Periodic test SMS start time...

  • Page 51: Table 26: Ts-Nx/Cl Default Settings

    Button 2, Telephone number 5 RTNB Ring time, Button 2 SDNB DTMF number to send SDDB Delay for DTMF to send TZSB Time zone start interval TZEB Time zone end interval Table 22: TS-NX/CL default settings. Page   5 0  ...

  • Page 52: Parameters Print-Out Commands

    TS-NX/CL PROGRAMMING TABLE Name Short Description PALL Prints all parameters available on TS-NX/CL. Prints SW version of TS-NX/CL. Prints GSM network signal quality of TS-NX/CL. Prints TNx numbers. Prints LNx links. Prints INx parameters. Prints IDx parameters. Prints ODx parameters.

  • Page 53: Technical Specifications

    TS-­‐NX/CL   INSTALLATION   M ANUAL     14 TECHNICAL SPECIFICATIONS Description Value Power Supply 12 - 24V AC/DC Current consumption - peak Current consumption - transmitting mode 250mA Current consumption - idle mode 80mA Quad band GSM module 850/900/1800/1900 PCB dimensions 106 ×...
  • Page 54 During the warranty period, the product will be repaired or replaced (at the sole discretion of Transmitter Solutions) if the product does not operate correctly due to a defective component.  This warranty does not extend to (a) the product case, which can be damaged by conditions outside the control of Transmitter Solutions, or (b) battery life of the product. ...
